Sep 25, 2025
ACAR Cable Company Guide: ACAR Conductors for Overhead Lines
(3).jpg)
Introduction
The Challenge of Overhead Power Lines
With the world’s need for electricity growing fast, utilities and engineering firms face big demands. They must create power lines that carry high capacity over long distances. These lines often cross tough landscapes like mountains or rivers.
Traditional options like ACSR (Aluminium Conductor Steel Reinforced) have been around for years. ACAR is lighter in weight, has a higher current-carrying capacity, exhibits lower sag, and offers superior corrosion resistance compared to ACSR, leading to increasing demand for its application.
Why is the application of ACAR more widespread？
Aluminium Conductor Alloy Reinforced (ACAR) cables are a strong alternative. They mix the excellent conductivity of aluminium with the toughness of an alloy core. This creates a better strength-to-weight balance, which is vital for overhead lines. For utilities and firms looking to ease tower loads and improve energy efficiency, ACAR is a practical choice.
What is an ACAR Conductor?
Definition and How It’s Made

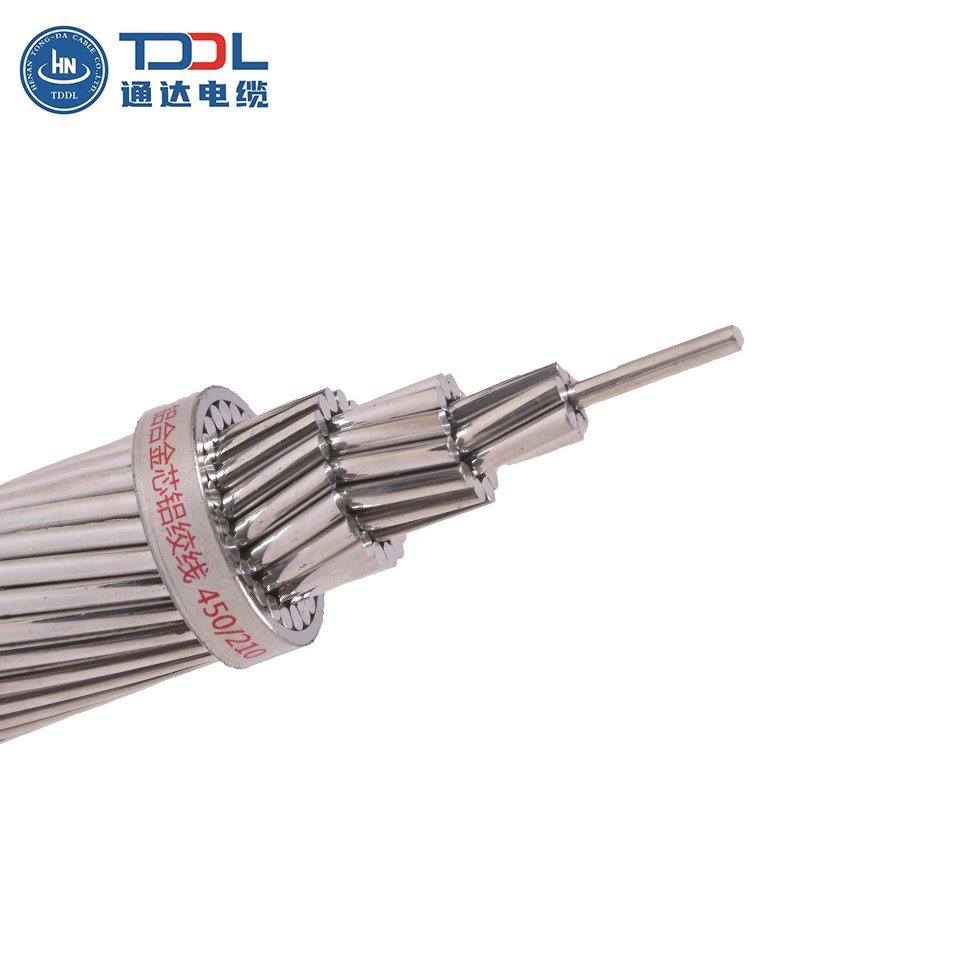

ACAR is a conductor built from layered strands. It has a core of strong aluminium alloy surrounded by extra hard aluminium wires. This combination fully leverages the electrical conductivity of aluminum and aluminum alloys, along with the high strength of aluminum alloys. Ultimately, we achieve a product with high current-carrying capacity, high strength, and lightweight properties.
How It Compares to AAC, AAAC, and ACSR
AAC (All Aluminium Conductor) conducts electricity well but lacks sufficient mechanical strength. AAAC (All Aluminium Alloy Conductor) uses an all-alloy design for higher strength than AAC but has weaker electrical performance. ACSR relies on the aluminum portion to carry current and the steel portion to provide strength. While offering high strength, it is heavier and has lower current-carrying capacity than ACAR. ACAR steps up with a reinforced core for better tensile strength. A good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design; for equal weight, ACAR offers higher strength and ampacity.
Key Features
Under the same weight, ACAR has low resistance, good current-carrying capacity, and high strength, making it an excellent composite design. These traits make them perfect for projects needing both electrical performance and mechanical strength.
How ACAR Boosts Strength-to-Weight
The Role of the Alloy Core
ACAR’s big advantage is its aluminium alloy core. Unlike steel or pure aluminium, it adds strength without extra weight. This lets ACAR handle heavy loads while keeping sag under control.
Less Sag, Lighter Tower Loads
ACAR cables are lighter than steel-core options like ACSR. Yet, they match or beat ACSR’s strength. This means less weight pulling on towers. Lower sag allows longer gaps between towers, which is great for crossing rivers or rugged terrain. It also reduces stress on support structures.
How It Stacks Up Against ACSR and AAAC
In real projects, ACAR resists corrosion better than ACSR because it has no steel parts, which leads to a longer service life. Compared to AAAC, ACAR offers a better mix of conductivity.
Key Benefits of ACAR Conductors
Great Conductivity and Capacity
The outer EC-grade aluminium layers ensure top-notch conductivity. ACAR cables carry more current with less loss than similar steel-core cables.
Tough and Reliable
Since ACAR has no steel, it doesn’t rust or corrode easily. This makes it last longer in harsh conditions. Its even thermal expansion also cuts down on stress when temperatures change.
Corrosion Resistance
ACAR’s all-aluminium design, including the alloy core, fights off corrosion from salty coastal air or industrial chemicals. It outperforms steel-core cables in these environments.
Cost Savings and Efficiency
ACAR allows longer spans with fewer towers thanks to less sag and weight. This can save money on big projects. Its lighter weight also cuts shipping costs, which matters for global suppliers handling international projects.
Flexible for Many Projects
ACAR is suitable for both new power line construction and the upgrade of existing ones. It fits different voltage levels and environments, making it a go-to choice for grids worldwide.
Where ACAR Shines
Long Spans (Rivers, Valleys, Cities)
ACAR’s strength-to-weight ratio supports longer spans without risking safety. This is key for crossing rivers or busy urban areas where towers can’t be placed frequently.
Upgrading Existing Grids
For lines needing more capacity without rebuilding towers, ACAR is an alternative solution. Its light weight and strength mean no major structural changes are needed.
Coastal and Industrial Zones
In salty or polluted areas where steel cables wear out fast, ACAR’s non-ferrous design lasts longer.
Connecting Renewable Energy
Wind farms and other renewables are often far from cities or offshore. ACAR’s lightweight strength makes it ideal for linking these sources to the grid.
How an ACAR Cable Company Helps
Custom Design and Expertise
A good ACAR supplier does more than make cables. They offer custom solutions, like picking the right conductor size for your terrain or calculating rated strength and current carrying capacity.
Meeting Global Standards
Top suppliers follow strict standards like ASTM B524/B524M for aluminium wires over alloy cores or similar IEC rules.
Quality You Can Trust
Reliable companies test their cables thoroughly. They check tension, electrical performance, and dimensions to ensure every cable lasts for decades.
Smooth Global Delivery
From quick shipping to handling international paperwork, a trusted supplier delivers on time. This is critical for big projects where delays cost money.
Buying Guide – Questions for Your ACAR Supplier
Cable Sizes and Options
Ask about available sizes, from small designs for city lines to large ones for high-voltage projects. Check whether they offer conductors that meet your requirements.
Load and Sag Details
Request data on tension and sag at different temperatures. This helps plan tower spacing, especially for upgrades with fixed towers.
Corrosion and Environmental Needs
If your project faces salty air or industrial pollutants, ask for test results showing how the cables hold up in those conditions.
Delivery, Certifications, and Support
Make sure the supplier can meet your timeline and provides certifications like ISO 9001. Check if they offer support after installation for any issues during setup or use.
(1).jpg)
FAQ
Q: What sets ACAR apart from other aluminium cables?
A: ACAR combines EC-grade aluminium for conductivity with an alloy core for strength. This gives it a unique edge over AAC, AAAC, or ACSR in balancing strength and electrical performance.
Q: When is ACAR the most cost-effective choice?
A: ACAR saves money on long spans like rivers or valleys. It’s also great in corrosive areas where less maintenance and longer life reduce costs.
Q: Can ACAR handle extreme weather?
A: Yes, ACAR works well in hot, cold, or windy conditions. Its low thermal expansion and high strength make it reliable in tough climates.
Q: How do I pick the right ACAR size for my project?
A: Talk to your supplier about your voltage, span length, load, and environmental needs. They’ll help find the best cable size and structural design.
