NYY (VV)
NYY (VV)

NYY (VV)

These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
Quote Now
Share :
Application
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

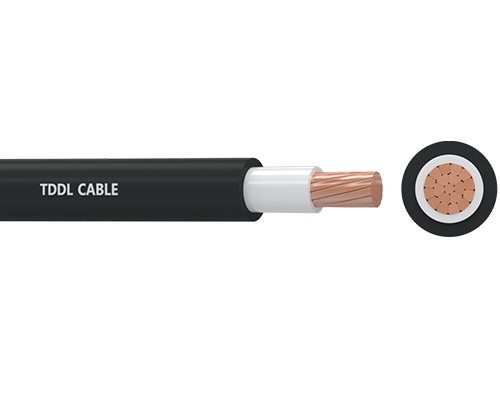

Construction
● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Polyvinyl chloride PVC
● Outer sheath: Polyvinyl chloride PVC

Chaircteritics
Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

Specification
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1 kV (Um=1.2kV) and 3kV(Um=3.6kV)
High reliability
Super high pressure
Less maintenance
Technical Parameter
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. Weight Max. D.C .Resistance of Conductor
at 20℃
No. × mm² No. mm mm mm kg/km Ω/km
1×1.5 1 0.8 1.4 5.8 49 12.1
1×2.5 1 0.8 1.4 6.2 61 7.41
1×4 1 1.0 1.4 7.0 85 4.61
1×6 1 1.0 1.4 7.5 108 3.08
1×10 6 1.0 1.4 8.8 157 1.83
1×16 6 1.0 1.4 9.6 218 1.15
1×25 6 1.2 1.4 11.2 320 0.727
1×35 6 1.2 1.4 12.2 416 0.524
1×50 6 1.4 1.4 13.9 551 0.387
1×70 12 1.4 1.5 15.6 761 0.268
1×95 15 1.6 1.5 17.8 1030 0.193
1×120 18 1.6 1.6 19.4 1274 0.153
1×150 18 1.8 1.6 21.1 1554 0.124
1×185 30 2.0 1.7 23.4 1943 0.0991
1×240 34 2.2 1.8 26.3 2508 0.0754
1×300 34 2.4 1.9 29.1 3123 0.0601
1×400 53 2.6 2.0 32.4 3981 0.0470
1×500 53 2.8 2.1 36.1 5014 0.0366
1×630 53 2.8 2.2 40.0 6392 0.0283



For more product details, please download our PDF files.
