CU(AL)/XLPE/CWS/AWA/PVC Single Core 6.6~33kV

Medium voltage cables for distribution networks.They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying, The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.

Application
Medium voltage cables for distribution networks.They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying, The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.

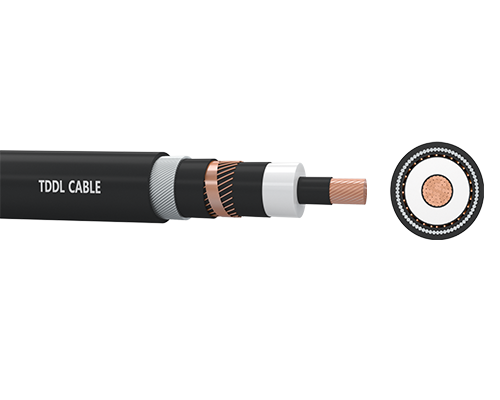

Construction
● Conductor : Copper or aluminum,class 2, circular compacted conductors
● Conductor screen:Non-metallic,semi-conducting compound
● Insulation:Cross-Linked polyethylene (XLPE)
● Insulation screen:Non-metallic,semi-conducting compound
● Metallic Screen:Copper wire
● Separation sheath:Polyvinyl chloride (5V-90 PVC)
● Armour: Aluminum wire
● Outer sheath: Polyvinyl chloride (5V-90 PVC)
Note：Outer sheath material can be PVC, HDPE or LSZH. Anti-UV, anti-termite is also applicable.

Chaircteritics
Good electrical and mechanical properties. Minimal dielectric loss, high insulation resistance.

Specification
AS/NZS 1125 Conductors in insulated electric cables and flexible cords
AS/NZS 1429.1 Electric Cables-Polymeric Insulated Part 1: For working voltages 1.9/3.3(3.6)kV up to and including 19/33(36)kV

High reliability

Super high pressure

Less maintenance

Technical Parameter

CU(AL)/XLPE/CWS/AWA/PVC

No. of Cores and Nominal Cross Section	Nominal Insulation Thickness	Nominal Aluminum Wire Diameter	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. weight			Max. D.C. Resistance of Conductor at 20℃		Screen Fault Current
No. of Cores and Nominal Cross Section	Nominal Insulation Thickness	Nominal Aluminum Wire Diameter	Nominal Sheath Thickness	Approx. Overall Diameter	CU	AL		CU	AL	Screen Fault Current
mm²	mm	mm	mm	mm	kg/km	kg/km		Ω/km	Ω/km	kA/1sec
3.8/6.6(7.2)kV
1×25	2.5	1.6	1.8	28.9	1570		1418	0.727	1.200	10.0
1×35	2.5	1.6	1.8	29.9	1693		1482	0.524	0.868	10.0
1×50	2.5	1.6	1.9	31.3	1858		1569	0.387	0.641	10.0
1×70	2.5	1.6	1.9	31.3	2055		1641	0.268	0.443	10.0
1×95	2.5	1.6	2.0	33.2	2369		1795	0.193	0.320	10.0
1×120	2.5	2.0	2.0	34.6	2703		1980	0.153	0.253	10.0
1×150	2.5	2.0	2.1	36.3	3021		2123	0.124	0.206	10.0
1×185	2.5	2.0	2.1	38.1	3428		2295	0.0991	0.164	10.0
1×240	2.6	2.0	2.2	40.7	4046		2582	0.0754	0.125	10.0
1×300	2.8	2.0	2.3	43.6	4727		2888	0.0601	0.100	10.0
1×400	3.0	2.5	2.5	48.2	5836		3467	0.047	0.0778	10.0
1×500	3.2	2.5	2.6	52.3	6996		3989	0.0366	0.0605	10.0
1×630	3.2	2.5	2.7	56.3	8497		4593	0.0283	0.0469	10.0
6.35/11(12)kV
1×25	3.4	1.6	1.8	29.3	1621		1468	0.727	1.200	10.0
1×35	3.4	1.6	1.9	30.5	1760		1549	0.524	0.868	10.0
1×50	3.4	1.6	1.9	31.7	1915		1626	0.387	0.641	10.0
1×70	3.4	1.6	2.0	33.5	2179		1765	0.268	0.443	10.0
1×95	3.4	2.0	2.1	35.5	2568		1994	0.193	0.320	10.0
1×120	3.4	2.0	2.1	36.8	2842		2119	0.153	0.253	10.0
1×150	3.4	2.0	2.1	38.3	3149		2251	0.124	0.206	10.0
1×185	3.4	2.0	2.2	40.3	3580		2446	0.0991	0.164	10.0
1×240	3.4	2.0	2.3	42.7	4186		2731	0.0754	0.125	10.0
1×300	3.4	2.0	2.3	45.0	4831		2993	0.0601	0.100	10.0
1×400	3.4	2.5	2.5	49.2	5918		3549	0.047	0.0778	10.0
1×500	3.4	2.5	2.6	53.1	7077		4070	0.0366	0.0605	10.0
1×630	3.4	2.5	2.7	56.9	8561		4656	0.0283	0.0469	10.0

No. of Cores and Nominal Cross Section	Nominal Insulation Thickness	Nominal Aluminum Wire Diameter	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. weight				Max. D.C. Resistance of Conductor at 20℃		Screen Fault Current
No. of Cores and Nominal Cross Section	Nominal Insulation Thickness	Nominal Aluminum Wire Diameter	Nominal Sheath Thickness	Approx. Overall Diameter	CU		AL		CU	AL	Screen Fault Current
mm²	mm	mm	mm	mm	kg/km		kg/km		Ω/km	Ω/km	kA/1sec
12.7/22(24)kV
1×35	5.5	2.0	2.0	35.2		2086		1874	0.524	0.868	10.0
1×50	5.5	2.0	2.1	36.6		2272		1982	0.387	0.641	10.0
1×70	5.5	2.0	2.1	38.2		2533		2119	0.268	0.443	10.0
1×95	5.5	2.0	2.2	40.1		2871		2297	0.193	0.320	10.0
1×120	5.5	2.0	2.2	41.4		3154		2432	0.153	0.253	10.0
1×150	5.5	2.0	2.3	43.1		3491		2593	0.124	0.206	10.0
1×185	5.5	2.0	2.3	44.9		3917		2783	0.0991	0.164	10.0
1×240	5.5	2.5	2.5	48.7		4735		3272	0.0754	0.125	10.0
1×300	5.5	2.5	2.5	51.0		5404		3565	0.0601	0.100	10.0
1×400	5.5	2.5	2.7	54.2		6381		4012	0.047	0.0778	10.0
1×500	5.5	2.5	2.8	57.9		7533		4526	0.0366	0.0605	10.0
1×630	5.5	2.5	2.9	61.9		9086		5181	0.0283	0.0469	10.0
19/33(36)kV
1×50	8.0	2.0	2.3	42.0		2634		2343	0.387	0.641	10.0
1×70	8.0	2.0	2.3	43.6		2917		2503	0.268	0.443	10.0
1×95	8.0	2.5	2.4	46.7		3432		2858	0.193	0.320	10.0
1×120	8.0	2.5	2.5	48.2		3745		3023	0.153	0.253	10.0
1×150	8.0	2.5	2.5	49.7		4085		3188	0.124	0.206	10.0
1×185	8.0	2.5	2.6	51.7		4552		3416	0.0991	0.164	10.0
1×240	8.0	2.5	2.6	54.1		5211		3749	0.0754	0.125	10.0
1×300	8.0	2.5	2.7	56.6		5925		4086	0.0601	0.100	10.0
1×400	8.0	2.5	2.8	59.6		6905		4536	0.047	0.0778	10.0
1×500	8.0	2.5	2.9	63.3		8102		5095	0.0366	0.0605	10.0
1×630	8.0	2.5	3.1	67.5		9705		5800	0.0283	0.0469	10.0

For more product details, please download our PDF files.
