N2XSRY (YJV72) 8.7-15(17.5)kV

Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.
Quote Now
Share :
Application
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

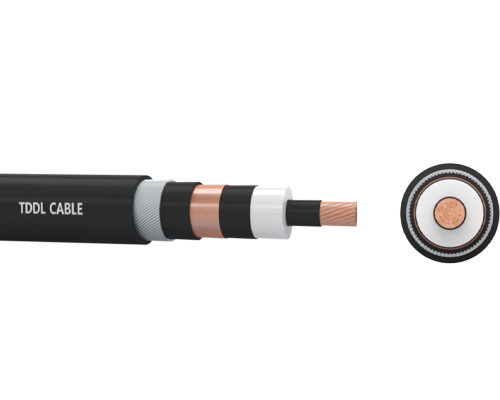

Construction
● Conductor: Copper, class 2, circular compacted conductors
● Conductor screen: Non-metallic, semi-conducting compound
● Insulation: Cross-linked polyethylene XLPE
● Insulation screen: Non-metallic, semi-conducting compound
● Metallic screen: Copper tape
● Outer sheath: Polyvinyl chloride PVC

Chaircteritics
Good electrical and mechanical properties. Minimal dielectric loss, high insulation resistance. The PVC outer sheath allows adequate resistance to grease, oil and abrasion.

Specification
IEC 60228 Conductors of Insulate Cables.
IEC 60502-2 Power cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV (Um=1.2kV) up to 30kV (Um=36kV) - Part 2: Cables for Rated Voltages of 6kV (Um=7.2kV) and 30kV (Um=36kV)
High reliability
Super high pressure
Less maintenance
Technical Parameter
No. of Cores and Nominal Cross Section Min.Number Of Wires Nominal Insulation Thickness  Nominal   Copper Tape Thickness Nominal
Sheath Thickness
Approx. Overall Diameter Approx. Weight Max. D.C. Resistance of Conductor
at 20℃
mm² No. mm mm mm mm kg/km Ω/km
3.6/6(7.2)kV
1X25 6 2.5 0.12 1.5 17.1 495 0.727
1X35 6 2.5 0.12 1.5 18.1 603 0.524
1X50 6 2.5 0.12 1.6 19.4 744 0.387
1X70 12 2.5 0.12 1.6 21.1 966 0.268
1X95 15 2.5 0.12 1.7 23.1 1248 0.193
1X120 18 2.5 0.12 1.7 24.3 1493 0.153
1X150 18 2.5 0.12 1.8 26.0 1782 0.124
1X185 30 2.5 0.12 1.8 27.7 2153 0.0991
1X240 34 2.6 0.12 1.9 30.4 2724 0.0754
1X300 34 2.8 0.12 2.0 33.2 3351 0.0601
1X400 53 3.0 0.12 2.1 36.5 4222 0.0470
1X500 53 3.2 0.12 2.2 40.5 5290 0.0366
1X630 53 3.2 0.12 2.3 44.4 6693 0.0283
