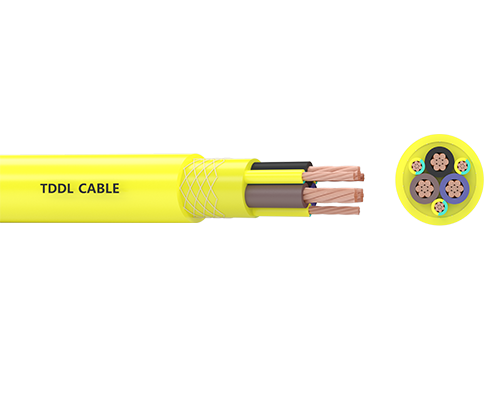

Cable specification
TC-TRVU-0.6/1 kV
Scope of application
This product is a flexible, mobile specialty cable suitable for powering rock drilling rigs. It's easy to wind and unwind and offers excellent properties such as resistance to high temperatures, cold weather, abrasion, impact, oil, corrosion, water, flame retardancy, and flexibility.
Conductor
Oxygen-free soft copper conductor, structure and performance meet the requirements for Type 5 conductors in GB/T 3956. Isolation layer: Polyester tape
Insulation
Material: Flame retardant and high temperature resistant special insulation material
Inner sheath
Material: High performance elastomer rubber, yellow
Torsion layer
Material: Aramid rope braid
Outer sheath
Material: High performance flame retardant polyurethane, yellow
Use Features
Rated voltage: 0.6/1 kV
Ambient operating temperature: -40℃~80℃ The maximum long-term operating temperature of the conductor: 105°C.
5S short-circuit conductor maximum operating temperature: 250℃
Minimum bending radius: 8D, D is the actual outer diameter of the cable

High reliability

Super high pressure

Less maintenance

Technical Parameter

Parameter

Number of cores×Cross-sectional area Nr×mm²	Conductor structure Nr×mm	Approximate conductor diameter mm	Nominal insulation thickness mm	Approximate overall diameter of cable mm	Tensile load N	Maximum D.C. resistance of conductor at 20℃Ω/km	Cable reference weight kg/km
3×25+3×6	343/0.30	6.8	1.6	30.1±1.5	6510	0.780	1480
3×35+3×6	494/0.30	8.0	1.6	33.1±1.5	8610	0.554	1950
3×50+3×10	703/0.30	9.4	1.6	37.5±1.5	12600	0.386	2590
3×70+3×16	981/0.30	12.0	1.8	45.0±2.0	18060	0.272	3630
3×95+3×16	1295/0.30	13.5	1.8	48.2±2.0	23310	0.206	4490
3×120+3×25	925/0.40	15.4	1.8	53.6±2.0	30450	0.161	5860
3×150+3×25	1147/0.40	17.1	2.0	58.3±2.0	36750	0.129	6940
3×185+3×35	1406/0.40	19.5	2.2	65.2±2.5	46200	0.106	8540

Power frequency voltage test: 3.5kV/5 min, no breakdown.
Flame retardant performance: passed VW-1 performance test.
