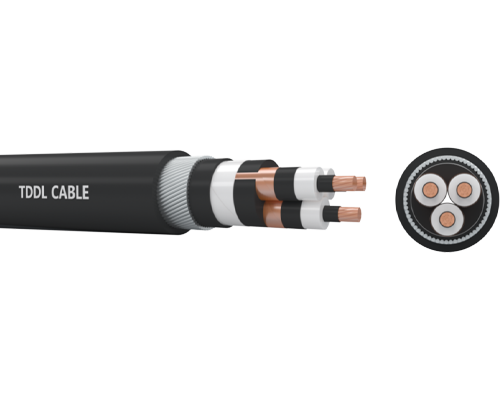

N2XSERY(YJV32) 18-30(36)kV
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.
No. of Cores and Nominal Cross Section | Min.Number Of Wires | Nominal Insulation Thickness | Nominal Copper Tape Thickness | Nominal Sheath Thickness |
Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
3.6/6(7.2)kV | |||||||
1X25 | 6 | 2.5 | 0.12 | 1.5 | 17.1 | 495 | 0.727 |
1X35 | 6 | 2.5 | 0.12 | 1.5 | 18.1 | 603 | 0.524 |
1X50 | 6 | 2.5 | 0.12 | 1.6 | 19.4 | 744 | 0.387 |
1X70 | 12 | 2.5 | 0.12 | 1.6 | 21.1 | 966 | 0.268 |
1X95 | 15 | 2.5 | 0.12 | 1.7 | 23.1 | 1248 | 0.193 |
1X120 | 18 | 2.5 | 0.12 | 1.7 | 24.3 | 1493 | 0.153 |
1X150 | 18 | 2.5 | 0.12 | 1.8 | 26.0 | 1782 | 0.124 |
1X185 | 30 | 2.5 | 0.12 | 1.8 | 27.7 | 2153 | 0.0991 |
1X240 | 34 | 2.6 | 0.12 | 1.9 | 30.4 | 2724 | 0.0754 |
1X300 | 34 | 2.8 | 0.12 | 2.0 | 33.2 | 3351 | 0.0601 |
1X400 | 53 | 3.0 | 0.12 | 2.1 | 36.5 | 4222 | 0.0470 |
1X500 | 53 | 3.2 | 0.12 | 2.2 | 40.5 | 5290 | 0.0366 |
1X630 | 53 | 3.2 | 0.12 | 2.3 | 44.4 | 6693 | 0.0283 |
