NA2XRY (YJLV32) 0.6-1kV
NA2XRY (YJLV32) 0.6-1kV

NA2XRY (YJLV32) 0.6-1kV

These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying, The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.
Quote Now
Share :
Application
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying, The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.

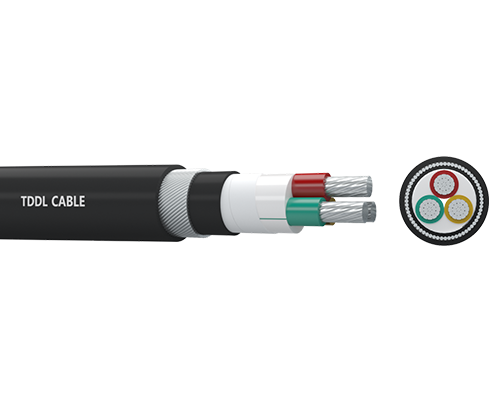

Construction
● Conductor: Aluminum, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Cross-linked polyethylene XLPE
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Steel wire
● Binder: Non-hygroscopic material
● Outer sheath: Polyvinyl chloride PVC

Chaircteritics
Good electrical and mechanical properties. Cross-linked polyethylene insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. The PVC outer sheath allows an adequate resistance to oil and abrasion.

Specification
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)
High reliability
Super high pressure
Less maintenance
Technical Parameter
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. Weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm² No. mm mm mm mm kg/km Ω/km
2×2.5 1 0.7 0.8 1.8 14.1 314 12.1
2×4 1 0.7 0.8 1.8 15.1 357 7.41
2×6 1 0.7 0.8 1.8 16.1 406 4.61
2×10 6 0.7 1.25 1.8 19.5 619 3.08
2×16 6 0.7 1.25 1.8 21.1 743 1.91
2×25 6 0.9 1.6 1.8 25.0 1078 1.20
2×35 6 0.9 1.6 1.8 27.0 1243 0.868
2×50 6 1.0 1.6 1.8 30.0 1459 0.641
2×70 12 1.1 1.6 2.0 33.8 1796 0.443
2×95 15 1.1 2.0 2.1 39.1 2495 0.320
2×120 15 1.2 2.0 2.2 42.5 2836 0.253
2×150 15 1.4 2.0 2.3 46.5 3330 0.206
2×185 30 1.6 2.5 2.5 52.3 4386 0.164
2×240 30 1.7 2.5 2.7 57.7 5192 0.125
2×300 30 1.8 2.5 2.8 63.1 6049 0.100
2×400 53 2.0 2.5 3.1 70.1 7194 0.0778
3×2.5 1 0.7 0.8 1.8 14.6 340 12.1
3×4 1 0.7 0.8 1.8 15.6 388 7.41
3×6 1 0.7 0.8 1.8 16.7 448 4.61
3×10 6 0.7 1.25 1.8 20.4 682 3.08
3×16 6 0.7 1.25 1.8 22.1 835 1.91
3×25 6 0.9 1.6 1.8 26.2 1221 1.20
3X35 6 0.9 1.6 1.8 28.4 1414 0.868
3×50 6 1.0 1.6 1.9 31.8 1681 0.641
3×70 12 1.1 2.0 2.0 37.2 2389 0.443
3×95 15 1.1 2.0 2.2 41.5 2895 0.320
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. Weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm² No. mm mm mm mm kg/km Ω/km
3×120 15 1.2 2.0 2.3 45.2 3336 0.253
3×150 15 1.4 2.5 2.5 51.1 4415 0.206
3×185 30 1.6 2.5 2.6 55.6 5113 0.164
3×240 30 1.7 2.5 2.8 61.8 6188 0.125
3×300 30 1.8 2.5 3.0 67.4 7206 0.100
3×400 53 2.0 2.5 3.2 74.7 8623 0.0778
4×2.5 1 0.7 0.8 1.8 15.4 377 12.1
4×4 1 0.7 0.8 1.8 16.6 436 7.41
4×6 1 0.7 1.25 1.8 18.7 631 4.61
4×10 6 0.7 1.25 1.8 21.8 779 3.08
4×16 6 0.7 1.6 1.8 24.4 1076 1.91
4×25 6 0.9 1.6 1.8 28.3 1404 1.20
4×35 6 0.9 1.6 1.9 30.9 1645 0.868
4×50 6 1.0 1.6 2.0 34.7 1977 0.641
4×70 12 1.1 2.0 2.2 40.7 2829 0.443
4×95 15 1.1 2.0 2.3 45.3 3434 0.320
4×120 15 1.2 2.5 2.5 51.0 4442 0.253
4×150 15 1.4 2.5 2.6 55.8 5198 0.206
4×185 30 1.6 2.5 2.8 61.4 6194 0.164
4×240 30 1.7 2.5 3.0 67.9 7424 0.125
4×300 30 1.8 2.5 3.2 74.1 8695 0.100
4×400 53 2.0 3.15 3.5 84.1 11526 0.0778
5×2.5 1 0.7 0.8 1.8 16.3 419 12.1
5×4 1 0.7 1.25 1.8 18.5 606 7.41
5×6 1 0.7 1.25 1.8 19.9 704 4.61
5×10 6 0.7 1.25 1.8 23.3 870 3.08
5×16 6 0.7 1.6 1.8 26.1 1227 1.91
5×25 6 0.9 1.6 1.8 30.5 1597 1.20
5×35 6 0.9 1.6 1.9 33.4 1890 0.868
5×50 6 1.0 2.0 2.1 39.3 2609 0.641
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. Weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm² No. mm mm mm mm kg/km Ω/km
5×70 12 1.1 2.0 2.3 44.3 3271 0.443
5×95 15 1.1 2.5 2.5 51.0 4494 0.320
5×120 15 1.2 2.5 2.6 55.5 5148 0.253
5×150 15 1.4 2.5 2.8 61.4 6181 0.206
5×185 30 1.6 2.5 3.0 67.2 7236 0.164
5×240 30 1.7 2.5 3.2 74.4 8761 0.125
5×300 30 1.8 3.15 3.4 82.9 11266 0.100
5×400 53 2.0 3.15 3.8 92.4 13590 0.0778
3×4+1×2.5 1/1 0.7/0.7 0.8 1.8 16.3 422 7.41/12.1
3×6+1×4 1/1 0.7/0.7 1.25 1.8 18.4 608 4.61/7.41
3×10+1×6 6/1 0.7/0.7 1.25 1.8 21.0 736 3.08/4.61
3×16+1×10 6/6 0.7/0.7 1.25 1.8 23.2 905 1.91/3.08
3×25+1×16 6/6 0.9/0.7 1.6 1.8 27.3 1321 1.20/1.91
3×35+1×16 6/6 0.9/0.7 1.6 1.8 29.1 1489 0.868/1.91
3×50+1×25 6/6 1.0/0.9 1.6 1.9 33.0 1831 0.641/1.20
3×70+1×35 12/6 1.1/0.9 2.0 2.1 38.6 2584 0.443/0.868
3×95+1×50 15/6 1.1/1.0 2.0 2.2 43.0 3114 0.320/0.641
3×120+1×70 15/12 1.2/1.1 2.0 2.4 47.3 3683 0.253/0.443
3×150+1×70 15/12 1.4/1.1 2.5 2.5 52.4 4719 0.206/0.443
3×185+1×95 30/15 1.6/1.1 2.5 2.7 57.5 5527 0.164/0.320
3×240+1×120 30/15 1.7/1.2 2.5 2.9 63.8 6672 0.125/0.253
3×300+1×150 30/15 1.8/1.4 2.5 3.0 69.5 7800 0.100/0.206
3×400+1×185 53/30 2.0/1.6 3.15 3.3 78.8 10313 0.0778/0.164
3×4+2×2.5 1/1 0.7/0.7 1.25 1.8 18.0 577 7.41/12.1
3×6+2×4 1/1 0.7/0.7 1.25 1.8 19.3 660 4.61/7.41
3×10+2×6 6/1 0.7/0.7 1.25 1.8 21.9 807 3.08/4.61
3×16+2×10 6/6 0.7/0.7 1.6 1.8 25.3 1138 1.91/3.08
3×25+2×16 6/6 0.9/0.7 1.6 1.8 28.7 1450 1.20/1.91
3×35+2×16 6/6 0.9/0.7 1.6 1.8 30.4 1614 0.868/1.91
3×50+2×25 6/6 1.0/0.9 2.0 2.0 36.4 2285 0.641/1.20
No. of Cores and Nominal Cross Section Min. Number of Wires Nominal Insulation Thickness Nominal
Steel Wire Diameter
Nominal
Sheath Thickness
Approx.
Overall Diameter
Approx. Weight Max. D.C. Resistance of Conductor
at 20℃
No. × mm² No. mm mm mm mm kg/km Ω/km
3×70+2×35 12/6 1.1/0.9 2.0 2.1 40.4 2814 0.443/0.868
3×95+2×50 15/6 1.1/1.0 2.0 2.3 45.4 3436 0.320/0.641
3×120+2×70 15/12 1.2/1.1 2.5 2.5 51.6 4566 0.253/0.443
3×150+2×70 15/12 1.4/1.1 2.5 2.6 54.9 5099 0.206/0.443
3×185+2×95 30/15 1.6/1.1 2.5 2.8 60.9 6138 0.164/0.320
3×240+2×120 30/15 1.7/1.2 2.5 3.0 67.0 7316 0.125/0.253
3×300+2×150 30/15 1.8/1.4 2.5 3.2 73.4 8591 0.100/0.206
3×400+2×185 53/30 2.0/1.6 3.15 3.5 83.0 11345 0.0778/0.164
4×4+1×2.5 1/1 0.7/0.7 1.25 1.8 18.2 587 7.41/12.1
4×6+1×4 1/1 0.7/0.7 1.25 1.8 19.6 682 4.61/7.41
4×10+1×6 6/1 0.7/0.7 1.25 1.8 22.6 838 3.08/4.61
4×16+1×10 6/6 0.7/0.7 1.6 1.8 25.7 1182 1.91/3.08
4×25+1×16 6/6 0.9/0.7 1.6 1.8 29.6 1515 1.20/1.91
4×35+1×16 6/6 0.9/0.7 1.6 1.9 32.0 1750 0.868/1.91
4×50+1×25 6/6 1.0/0.9 2.0 2.1 38.0 2485 0.641/1.20
4×70+1×35 12/6 1.1/0.9 2.0 2.2 42.4 3054 0.443/0.868
4×95+1×50 15/6 1.1/1.0 2.0 2.4 47.5 3726 0.320/0.641
4×120+1×70 15/12 1.2/1.1 2.5 2.5 53.4 4843 0.253/0.443
4×150+1×70 15/12 1.4/1.1 2.5 2.7 57.9 5608 0.206/0.443
4×185+1×95 30/15 1.6/1.1 2.5 2.9 64.0 6702 0.164/0.320
4×240+1×120 30/15 1.7/1.2 2.5 3.1 70.7 8012 0.125/0.253
4×300+1×150 30/15 1.8/1.4 3.15 3.3 79.0 10410 0.100/0.206
4×400+1×185 53/30 2.0/1.6 3.15 3.6 87.6 12438 0.0778/0.164



For more product details, please download our PDF files.
