Understanding Low Voltage Cable Specifications: A Comprehensive Guide

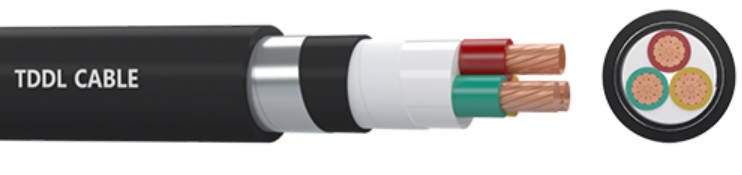

(1).jpg)
What Are Low Voltage Cables?
What Makes Low Voltage Cables Special
Low voltage cables transmit power with voltages up to 1kV. They’re really reliable and flexible. That’s why they’re used all over in electrical systems. Their design is simple. They’re easy to produce, those materials are easy to find. Installing them is a easy. Plus, you don’t have to worry about height differences when setting them up.
Where You Could Find Them
These cables are awesome for power supply and distribution at 0.6/1kV or less. You’ll see them in factories, office buildings, and residential area. They’re great for burying directly in the ground, running through trenches, mounting on walls, or laying in tunnels. These power cables are used for electricity supply in low voltage installation systems. They’re perfect for underground industrial use with extra protection to avoid damage.
Key Parts of Low Voltage Cable Specifications
Conductor Material and Design
Copper vs. Aluminum Conductors
Copper has good transmission performance and a relatively large degree of bending, but its price is higher. Aluminum is a budget-friendly option. It’s a bit less conductive but way lighter. Conductor: Aluminum or copper, class 1 or class 2 , solid or stranded, circular or circular compacted conductors is a popular pick for industrial low voltage cables. Use Class 5 copper conductors in areas with high flexibility requirements. It’s a solid mix of performance and cost.
Stranded vs. Solid Conductors
Solid conductors are really tough. They’re perfect for setups that stay put. Stranded conductors are more flexible. They’re awesome for places with shaking or movement.
Insulation Types and Ratings
Common Insulation Materials (PVC, XLPE, etc.)
Two common insulation types are Polyvinyl Chloride (PVC) and Cross-Linked Polyethylene (XLPE). Insulation: XLPE has a higher long-term operating temperature and can carry more current than PVC insulated cables in the same conditions.
Temperature and Voltage Ratings
Low voltage cables usually work at 0.6/1kV, following standards like IEC 60502-1. Temperature limits depend on the insulation material. XLPE is more heat-resistant than PVC.
Metal Shield and Armor Options
Why Metal Shield Is a Big Deal
Metal shielding can prevent electromagnetic interference, uniform electric fields, etc. It can also protect cables from damage caused by twisting, stretching, and other forces, enhancing durability. In addition, improving the quality and stability of signal transmission and ensuring the safe operation of equipment are also advantages of metal shielding.
Types of Shields: Copper Wire, Tape, Braid, and Combo
Copper tape shield lacks flexibility and tensile strength, while copper tape braid shield can effectively compensate for this shortcoming. Suitable metal shield types can be selected according to the requirements of the usage scenario.
Sheath Materials and Weather Protection
The outer sheath protects the interior of the cable from external influences.
UV, Flame, and Chemical Resistance
PVC sheath has UV resistance and can also meet the characteristics of oil resistance and flame retardant etc.This makes these cables great for outdoor spots where they face tough conditions.
.jpg)
Electrical Performance Basics
Voltage Rate and Why It’s Important
The voltage rating shows the max power a cable can handle safely. Most low voltage cables are built for 0.6/1kV. This follows the IEC 60502-1 standard. That standard covers power cables with extruded insulation. It also includes their accessories. It applies to rated voltages from 1kV (Um=1.2kV) up to 30kV (Um=36kV). Part 1 specifically deals with cables rated for 1kV (Um=1.2kV) and 3kV (Um=3.6kV).
Current Carrying Capacity (Ampacity)
Ampacity is how much current a cable can carry without overheating. It depends on a few things. The cable’s size matters. So does the insulation type. The temperature around it plays a part. How it’s installed, like grouping or burial depth, also counts.
Rules and Standards to Follow
Global and Local Standards (IEC, NEC, UL)
Sticking to worldwide standards ensures cables are safe and top-quality.
- IEC 60228 Conductors of Insulated Cables sets rules for conductor design.
- IEC 60502-1 Power Cables with Extruded Insulation covers insulation standards.
- In the U.S., National Electric Code (NEC) rules apply.
- UL certification shows the cable passed tough tests.
Markings and Labels for Compliance
Labels show important details like the maker, voltage rating (e.g., 600/1000V), insulation type (e.g., XLPE), and flame-retardant marks (e.g., Eca). They also list standard codes (e.g., IEC 60502-1) and batch numbers for tracking. This makes sure the cable meets all technical requirements.

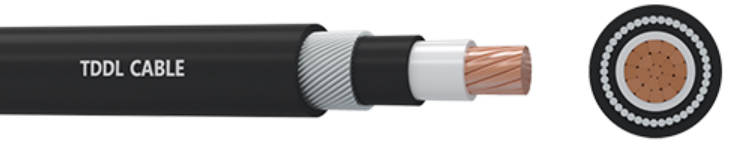

.jpg)

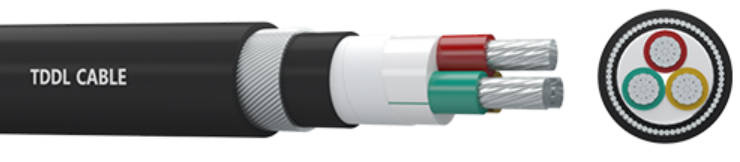

TDDL’s low voltage cables, like low voltage cable NA2XY (YJLV), NA2XRY (YJLV32), and NAYBY (VLV22), are perfect for underground industrial use with extra strength. These power cables are used for electricity supply in low voltage installation systems. They are suitable for laying indoor, tunnel, cable trench, shaft or buried laying.
For trusty performance that meets IEC standards and needs less maintenance, check out TDDL’s wide range of low voltage cables today.
