ACSR Conductor Sizing & Ampacity: A Quick Selection Guide
Introduction — Why ACSR Sizing and Ampacity Matter
Aluminum Conductor Steel Reinforced (ACSR) conductor is widely used in overhead lines. It combines good electrical conductivity with higher rated tensile strength. The structure is simple: ACSR is concentrically stranded conductor with one or more layers of hard-drawn aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. This design enables the conductor to carry current efficiently while holding up under heavy tension and long spans.Selecting the right ACSR size and ampacity is essential. Oversized conductors increase costs unnecessarily.Undersized ones may overheat, sag too much, or break under stress.Engineers need to find a balance between performance, safety, and cost.
The working environment also matters. Ambient temperature, span length, wind, and ice all affect how the conductor performs.
Understanding ACSR Construction and Ampacity Basics

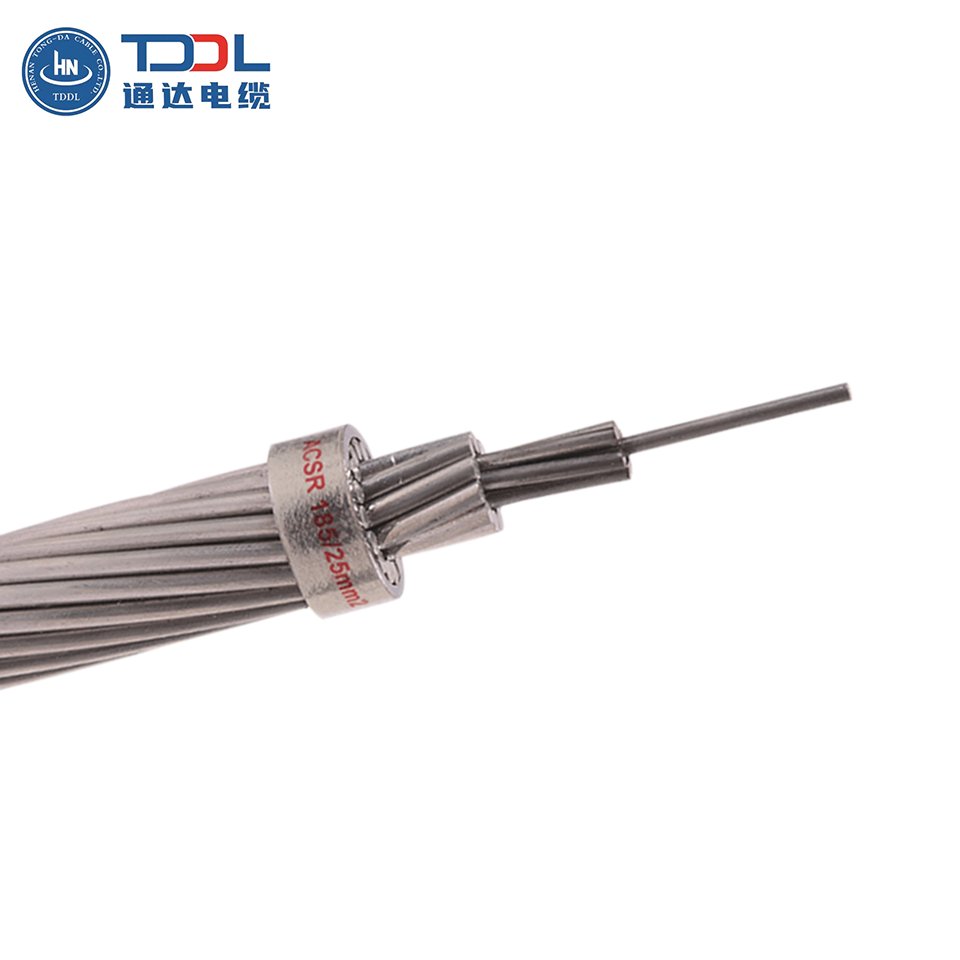

An ACSR conductor has layers of hard-drawn aluminum wires laid around a galvanized steel core.- The aluminum carries the current.
- The steel provides strength and limits sag.
Ampacity Explained
Ampacity means the largest current a conductor can handle continuously without going over its rated temperature. It depends on how well the conductor can release the heat made by current flow.Key factors include:
- Wire size and surface finish
- Electrical resistance and outside temperature
- Wind speed and sunlight exposure
Main Standards
- IEC 61089 Round wire concentric lay overhead electrical stranded conductors
- ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced
- BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors
- BS 215-1 Aluminium Conductors and Aluminium Conductors, Steel-reinforced — For Overhead Power Transmission — Part 2: Aluminium Conductors, Steel-reinforced
- AS 3607 Conductors - Bare overhead - Aluminium and aluminium alloy-Steel reinforced
ACSR Components
| Part | Material | Role |
| Outer Strands | Aluminum | Carry current |
| Core | Steel | Provide tensile strength |
Key Factors That Affect ACSR Conductor Size
Before choosing a bare conductor, check both electrical and mechanical limits. These define safe and reliable operation.1. Current Capacity
This is the starting point. Ampacity depends on continuous load, conductor maximum operating temperature, and ambient temperature.Check ampacity charts from technical parameter specifications or product manuals.2. Mechanical Strength
The steel core must handle tension from wind, ice, and span weight. For long spans, use higher strength steel core.3. Environment
Humidity, salt, and pollution cause corrosion. Use grease to extend service life.4. Span and Terrain
Choose an appropriate span based on the terrain, and select an appropriate steel core strength based on the span and the weight of the conductor.- Confirm Standards
6. Cost
The conductor's specification, strength, resistance, and current carrying capacity affect cost. A suitable structural design should be selected based on the usage conditions.Typical ACSR Sizes and Ampacity
| Name | Stranding (Al/St) | Dia (mm) | Ampacity 75 °C (A) |
| Raven | 6/1 | 10.1 | 242 |
| Hawk | 26/7 | 21.8 | 659 |
| Drake | 26/7 | 28.1 | 907 |
| Cardinal | 54/7 | 30.4 | 996 |
| Pheasant | 54/19 | 35.1 | 1187 |
| Ampacity:Conductor temperature of 75°C, ambient temperature 25°C, emissivity 0.5, wind 2 ft./sec., in sun | |||
Standards and Testing
Every ACSR must comply with standards, such as:- IEC 61089 Round wire concentric lay overhead electrical stranded conductors
- ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced
- BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors
- BS 215-1 Aluminium Conductors and Aluminium Conductors, Steel-reinforced — For Overhead Power Transmission — Part 2: Aluminium Conductors, Steel-reinforced
- AS 3607 Conductors - Bare overhead - Aluminium and aluminium alloy-Steel reinforced
ACSR Conductors must under acceptance testing the following:
- Control diameter of conductor and single aluminum and steel wire.
- Check for lay ratios and direction of various layers.
- Tensile strength of the aluminum wires ,Tensile strength 、Elongation and Stress at 1 % Extension of the steel wires making up the driver.
- Resistivity of aluminum wires.
- Wrapping of aluminum and steel wires.
- Weight of Zinc Coating、Adherence of Coating Test and Continuity of Zinc Coating of steel wires
- Weight per unit length of conductor .
Common Issues and Fixes
| Issue | Fix |
| High Sag | Use ACSR/TW or add more steel strands. |
| Coastal Corrosion | Select well-galvanized cores or Select greased conductor. |
| Long Spans | Choose high-strength variants with extra steel. |
| Overheating | Recheck ampacity ; watch conductor temp. |
Conclusion
Good conductor design balances conductor diameter and mass and ampacity and rated tensile strength.By using proper ampacity, sag, and international standards etc., engineers can build lines that are safe, and stable.
Need IEC 61089 or ASTM B232 approved ACSR conductors from TDDL?
Contact our engineering team for data sheets or custom sizing advice.
FAQs
Q: What does ACSR mean?
A: It stands for Aluminum Conductor Steel Reinforced. The conductor uses aluminum for current and steel for support.Q: How is ACSR different from AAAC?
A: AAAC has no steel core, so it’s lighter and resists corrosion better, but it doesn't have that high strength over long spans.Q: Why is ACSR conductor preferred for long transmission lines?
A: Because the steel core in ACSR conductor helps it resist sag and tension. It can handle strong winds and heavy ice loads better than pure aluminum conductors.SEO information setting:
