ACSR Conductors: Key Components in Power Transmission Systems
Understanding ACSR Conductors in Power Transmission Systems
The Composition and Structure of ACSR Conductors

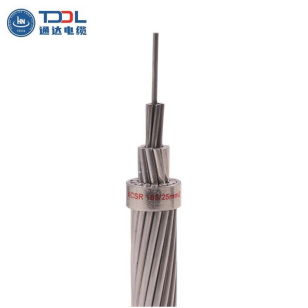

Aluminium Conductor Steel Reinforced (ACSR) is a concentrically stranded conductor. It has one or more layers of hard drawn aluminium wire on a galvanized steel wire core. This design builds its mechanical and electrical properties. The outer aluminum strands give great conductivity. The inner steel core adds tensile strength. This lets the conductor cover long distances with little sag.The steel core can be a single wire or multiple stranded wires. It depends on the conductor’s size and needs. Variations in strand makeup—like aluminum-clad steel or aluminum alloy cores—let engineers adjust strength, conductivity, and corrosion resistance for certain conditions.
Corrosion protection matters a lot for long life. Extra protection comes from grease on the core or grease throughout the cable. This keeps ACSR strong even in tough weather. ACSR from TDDL cable offers reliable options here.
.png)
Advantages of Using ACSR Conductors in Power Transmission
ACSR conductors bring many benefits. They make them essential for overhead power systems. Their high tensile strength supports longer spans between towers. This cuts infrastructure costs and boosts line efficiency. The light weight of aluminum reduces load on supports.The mix of materials improves both strength and conductivity. It ensures good energy transfer over long distances. ACSR provides the best strength for line design. This balance of durability and performance suits large transmission networks in different terrains and weather.
The Role of ACSR Conductors in Reliable Overhead Power Transmission
Enhancing System Reliability with ACSR Conductors
Reliability matters in today's power grids. ACSR conductors help keep energy delivery steady. Their strong build handles wind, ice, and temperature changes. The steel core fights mechanical stress from these issues. It lowers risks of breaks or too much sag.Corrosion resistance boosts reliability too. It shortens maintenance needs and extends life. Grease on the core or full infusion adds extra protection. This works well in coastal or industrial areas with pollutants. By cutting failure risks, ACSR reduces outages and strengthens grid trust.
Integration of ACSR Conductors in Modern Power Grids
ACSR conductors fit easily into current setups. They match standard designs and common fittings. They serve as bare overhead transmission conductors. They also work as primary and secondary distribution lines, plus messenger support.Their flexibility aids grid growth to meet higher demand. In high-voltage uses like long transmission paths, they limit energy loss. They stay stable in varied conditions. Projects such as Pakistan’s ±660kV Matiari-Lahore HVDC line show their key role in cross-region power with advanced ACSR tech. Product: Conductor ACSR from TDDL cable.
Technical Specifications and Standards for ACSR Conductors
Key Technical Specifications of ACSR Conductors
Standards make sure ACSR conductors perform the same worldwide. Factors like cross-sectional area, current capacity, tensile strength, weight per length, and resistance guide choices for voltage and spans. These help pick the right type for loads and environments.Specifications cover current-carrying capacity and mechanical traits. Meeting global standards ensures they work together in international systems. This supports safe use under normal and high loads.
Industry Standards Governing the Use of ACSR Conductors

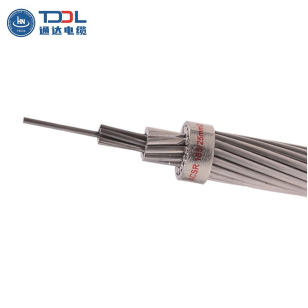

ACSR production follows strict global rules for quality and safety. Key ones include IEC 61089 for round wire concentric lay overhead conductors, ASTM B232 for concentric-lay-stranded aluminum conductors coated-steel reinforced, BS EN 50182, BS 215-2, AS 3607, and GB/T 1179.Following these rules ensures safety and fit among gear from various makers in global grids. It guarantees reliable work under thermal loads and strong structure over time.
.png)
Challenges and Considerations in the Use of ACSR Conductors
Addressing Environmental Impact of ACSR Conductor Deployment
ACSR works well in use, but using lots of metal raises concerns during making and disposal. Better manufacturing—like less energy in smelting—cuts carbon from aluminum production.Recycling reuses aluminum strands and steel cores from old lines. This reduces new raw material needs and fits sustainability aims.
Overcoming Installation Challenges with ACSR Conductors
Good installation keeps the mechanical traits working in the field. The mixed build means wrong handling can bend strands or harm surfaces. This hurts conductivity or strength.Training for workers stresses right tension during stringing, joint prep, and vibration control. Following maker and rule guidelines improves safety and efficiency in new or upgraded lines.
Ongoing advances in alloys, coatings, and methods keep ACSR as a core tech for power infrastructure. Contact TDDL cable for more on bare conductor solutions.
FAQ
Q: What is ACSR conductor and why is it used in power transmission?
A: ACSR conductor, or Aluminum Conductor Steel Reinforced, combines aluminum strands for conductivity with a steel core for strength. It is used for overhead power lines because it handles long spans, reduces sag, and offers a good balance of electrical performance and mechanical durability.Q: What are the main advantages of ACSR bare conductor over other types?
A: ACSR bare conductor provides high tensile strength for longer spans, lighter weight than copper, good conductivity from aluminum, and corrosion resistance options like grease protection. It is cost-effective and reliable for high-voltage transmission and distribution.Q: Where can I source reliable ACSR conductors for my project?
A: You can contact TDDL cable, a trusted supplier of ACSR and bare conductor products that meet international standards like ASTM B232 and IEC 61089 for quality overhead transmission solutions.
