Key Components in the Construction of Low Voltage Cables Explained

Share:

Low voltage cables are vital for electrical systems. They ensure safe and efficient power transmission in various settings, and handle voltages up to 1kV. It is common in industrial, commercial, and residential applications. Different constructions reflect varied performance, durability, and safety. This article explores the main parts: conductor structure, insulation layer, shielding, armoring and outer sheath.

Conductor Structure in Low Voltage Cables

Types of Conductors Used

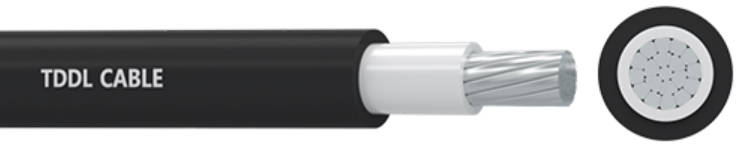

The conductor is the heart of a low voltage cable. It carries the electrical current. Common materials are copper and aluminum and aluminum alloy. Copper offers high conductivity and flexibility, which makes it ideal for applications needing efficiency and reliability. Aluminum is lighter and cheaper. 8000 series aluminum alloy has the best creep resistance performance. It suits large-scale projects. For example, low voltage cables-NAYY (VLV) use aluminum conductors. These are great for underground industrial use.

Material Characteristics and Their Impact

The conductor material affects performance. Copper’s high conductivity reduces energy loss, and its flexibility eases installation. Aluminum’s lower weight cuts costs in big projects. However, it needs a larger size for the same conductivity.

Stranding Techniques

Stranding makes multiple single wires stranded together. It creates a flexible conductor and improves conductors resistance to mechanical stress. Stranded conductors work well in cables that bend or move often.

Insulation Layer in Low Voltage Cables

Common Insulation Materials

The insulation layer surrounds the conductor. It prevents electrical leaks and ensures safety. Common materials include polyvinyl chloride (PVC) and cross-linked polyethylene (XLPE). PVC is flexible, flame-resistant, and affordable. XLPE handles heat and stress well.

Role of Insulation in Safety

Insulation separates the conductor from external elements or other conductors, which prevents short circuits and reduces shock risks. It ensures reliable operation in various conditions.

Thickness and Durability

Insulation thickness must meet standards. The insulation layer has good electrical and mechanical properties, and ensures the long-term safe operation of the conductor at a certain temperature.

Shielding in Low Voltage Cables

Purpose of Shielding

Shielding protects against electromagnetic interference (EMI). EMI can come from external sources or nearby cables. It may disrupt signals or cause equipment issues.

Types of Shielding Materials

Common shielding materials are aluminum foil and braided copper wires. Aluminum foil blocks EMI effectively but is less flexible. Braided copper offers flexibility and good EMI protection.

Shielding Techniques

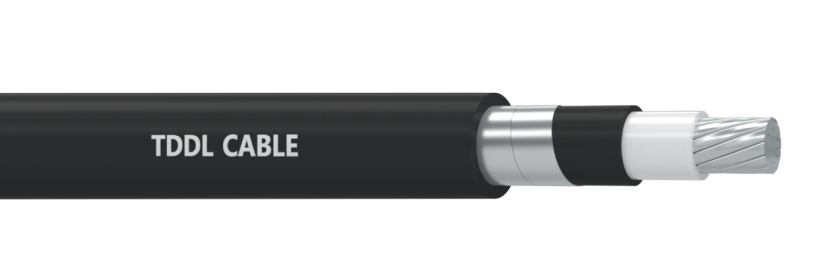

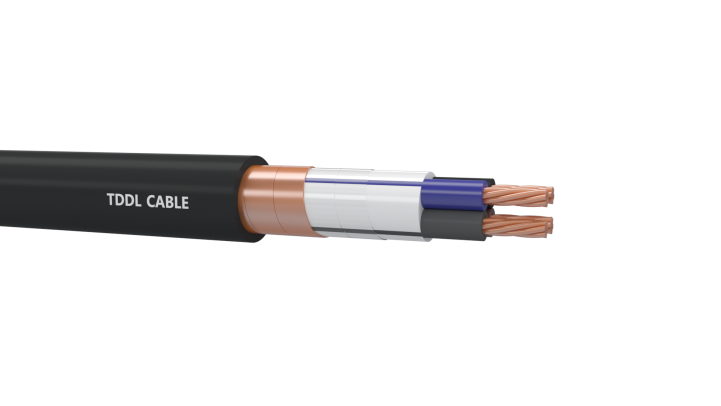

Shielding involves wrapping the conductor with a protective layer. Some cables include shielding in their design. For example, low voltage cables-N2XY (KYJVP2) have shielding. It suits indoor or underground setups where EMI resistance is vital.

Outer Sheath in Low Voltage Cables

Functions of the Outer Sheath

The outer sheath is the first defense. It protects against abrasion, moisture, chemicals, and UV rays. It also shields internal parts during handling or installation.

Material Options

PVC, PE and PO are common outer sheath materials. They resists moisture and chemicals, and are affordable.

Protective Features

Cables like low voltage cables-N2XRY have strong sheath. It is designed for underground use, because cables with resist environmental challenges effectively.

Filling and Bedding Layers in Low Voltage Cables

Importance of Filling Materials

Filling materials ensure cables stability. They fill gaps between conductors and other parts. Such design makes cable compact and cohesive. Fillers prevent internal movement during use or installation, and also boost cable’s strength to handle external forces.

Bedding Layers and Their Role

The bedding layer protects inner components. It creates a smooth surface for armoring or other layers. It can prevents damage to insulation or conductors and improves flexibility for easier handling. For example, low voltage cables-NA2XBY have strong bedding layers. Such design ensures durability on cable trays or in conduits.

Armoring in Low Voltage Cables

Purpose of Armoring

Armoring adds mechanical protection. It guards against impacts, abrasion, and environmental stress. It is crucial for harsh settings like underground or industrial areas.

Types of Armoring Materials

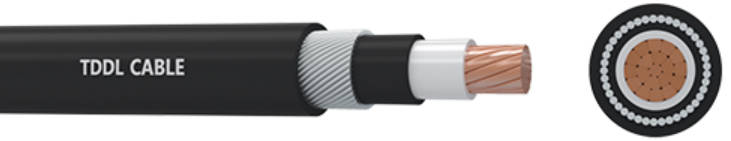

Steel wire armor has the function of resisting tension, while steel strip armor has the function of resisting pressure. Single core cables should be made of non-magnetic materials, such as aluminum wire, to achieve a uniform magnetic field. For example, low voltage cables-NAYBY (VLV22) use armoring. It supports indoor or underground setups.

Applications for Armored Cables

Armored cables are used where extra protection is needed. Examples include underground power systems, industrial plants, transformer stations, and tunnels. Low voltage cables-NA2XRY (YJLV32) are built for buried or shaft installations. They handle external forces and tension well.

Markings and Identification on Low Voltage Cables

Standards for Markings

Markings on cables follow standards. Details like manufacturer, voltage rating, conductor material, insulation type, and armoring info are included. Clear markings can help users identify cables.

Identifying Cable Specifications

Markings reveal key details. They show the cable’s use, protection features, and electrical properties. For example, low voltage cables-NYY (VV) have markings. These indicate suitability for walls or conduits.

Look out for Fakes; Trust TDDL

Low voltage cable market has counterfeit risks. Fake cables may not meet safety or quality standards. It can cause electrical failures or fire hazards. To stay safe, buy from trusted manufacturers like TDDL. Our cables meet regulations and perform reliably in various applications.

FAQ

Q: What are low voltage cables used for?

A: Low voltage cables carry electricity at voltages up to 1KV. They’re used in homes, offices, and factories for powering lights, appliances, and machinery safely and efficiently.

Q: What is the conductor in a low voltage cable?

A: The conductor is the core that carries the electric current. It’s usually made of copper, aluminum or AA-8000 aluminum alloy. Copper has better conductivity and flexibility, while aluminum and AA-8000 aluminum alloy is lighter and cheaper.

Q: Why is stranding used in conductors?

A: Stranding twists multiple single wires to be stranded together. It makes the cable flexible and stronger against bending or stress, ideal for cables that move or bend often.

Q: What does the insulation layer do?

A: Insulation wraps the conductor to prevent electrical leaks. It stops short circuits, reduces shock risks, and keeps the cable working reliably in different conditions.
