How to Spot Common Problems in Medium Voltage Cable Systems

Medium voltage cables are really important for today's power systems. They are the main connection for moving electricity to different locations.
These cables are designed to perform well under difficult circumstances. They make sure places like transformer stations and factories get a reliable supply of power. Their tough construction helps them put up with physical strain and rough surroundings. It also helps them keep up their high electrical quality.
Understanding the parts of these cables, what they are used for, and what might go wrong is essential. This knowledge helps keep them working as they should.

What Are Medium Voltage Cable Systems?

Medium voltage cable systems are designed to carry power at voltages from 1kV to 36kV. They’re used in many places, like indoor setups, tunnels, trenches, and underground lines. These cables can resist physical forces and some pulling stress. Their main job is to deliver electricity safely and reliably.

Parts of Medium Voltage Cable Systems

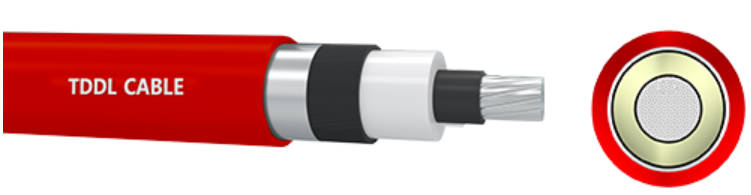

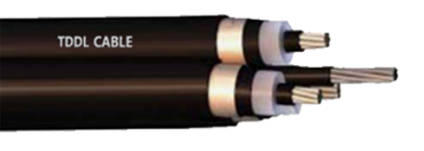

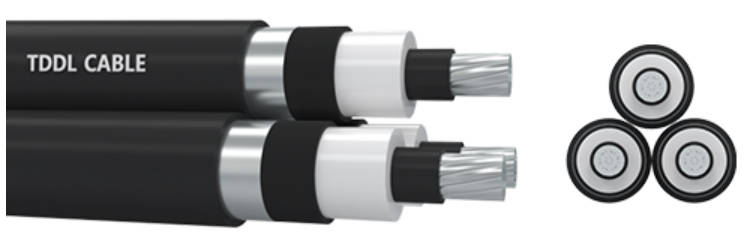

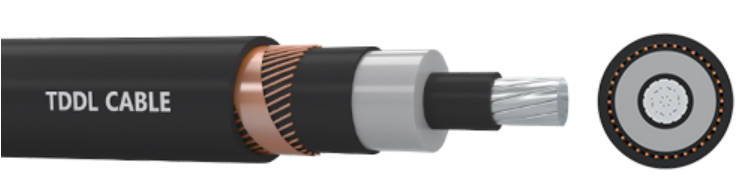

A typical medium voltage cable has several layers that work together for top performance:

Conductor: The central part, made of aluminum or copper, ensures good electrical flow. Aluminum class 2 circular compacted conductors are often used.
Conductor Screen: A semi-conductive layer that balances the electric field around the conductor.
Insulation: Cross-linked polyethylene (XLPE) is common for its strong electrical properties.
Insulation Screen: Another semi-conductive layer that boosts insulation dependability.
Metallic Screen: Usually copper tape, this layer grounds the cable and blocks electromagnetic interference.
Inner Sheath: Made of polyvinyl chloride (PVC), it shields internal parts from damage.
Armour: Aluminum wire or non-magnetic steel tape adds physical strength.
Outer Sheath: The outer PVC layer resists grease, oil, and wear.

These features provide solid electrical and physical performance with low energy loss.

Common Uses of Medium Voltage Cables

Medium voltage cables are essential in many areas:

Transformer Stations: They link transformers to power networks.
Power Plants: They carry generated electricity.
Factories: They power heavy machines and equipment.
Underground Lines: Their sturdy build suits buried installations.

They also work well indoors, in tunnels, shafts, or trenches and many other cases. Their flexibility makes them critical in cities and rural areas alike.

Common Problems in Medium Voltage Cable Systems

Even though these systems are reliable, issues can arise over time. Causes include harsh environments, operational strain, or poor installation.

Problem 1: Insulation Breakdown

Causes of Insulation Wear
The insulation layer prevents electrical faults. But it can weaken due to:

Long-term exposure to high heat causing aging.
Water seeping in, lowering insulation strength.
Chemical exposure breaking down materials.
Physical damage during setup or use.

Signs of Insulation Issues
Catching insulation problems early can avoid major failures:

Strange temperature increases along the cable.
Partial discharges showing weak insulation spots.
Lower insulation strength during tests.

Regular checks and monitoring can reduce these risks.

Problem 2: Conductor Damage

Spotting Physical Stress on Conductors
Physical stress often comes from rough handling during setup or too much pulling force. This can deform or break conductors over time. Medium voltage cables can handle some stress but may fail in extreme cases.
Effects of Overheating on Conductors
Overheating happens when current exceeds the conductor’s limit:

It weakens aluminum or copper, reducing strength.
It may cause melting or sparking at connections.

Proper load control and heat monitoring are key to prevention.

Problem 3: Termination and Joint Failures

Issues in Cable Terminations
Terminations are key connection points but can fail due to:

Sloppy work during setup causing loose connections.
Poor sealing letting water in.
Electrical stress leading to partial discharges.

Quality materials and skilled workers are crucial for dependable terminations.
Weaknesses in Joints
Joints connect cable sections but can have issues like:

Poor alignment creating stress points.
Low-quality joint materials reducing durability.
Environmental factors, like water, causing corrosion or short circuits.

Regular checks can catch joint problems before they grow.
By understanding these issues and taking steps like regular testing, proper setup, and timely fixes, medium voltage cable systems can stay reliable across many uses.

Ways to Find Faults in Medium Voltage Cables

Method 1: Visual Checks

Visual checks are a simple yet effective way to spot cable faults. This involves looking at the cable’s outer sheath, armor, and visible parts for signs of damage. Look for cracks, scrapes, color changes, or deformities. The outer sheath, usually PVC, resists grease, oil, and wear. But harsh conditions can weaken it over time. Regular visual checks can catch early damage and prevent bigger problems.

Method 2: Electrical Tests

Electrical tests are a more advanced way to find cable faults. They check the cable’s electrical properties to spot issues.
Partial Discharge Testing
This non-invasive test finds weak spots in the insulation. The insulation, often XLPE, has great electrical properties. But aging or water can weaken it, causing small electrical sparks in defects. Special equipment measures these sparks. This helps technicians find problem areas before they become full failures.
Time Domain Reflectometry (TDR)
TDR sends a low-voltage signal through the cable and checks the reflected signal for irregularities. Faults like conductor breaks or insulation issues change the signal’s pattern. TDR is great for pinpointing faults accurately, making it a valuable tool for maintenance teams.

Method 3: Thermal Imaging for Heat Issues

Thermal imaging uses infrared cameras to spot temperature changes along cables. Overheating can come from too much current, bad connections, or damaged conductors. Medium voltage cables can handle some stress but may fail in extreme cases. Thermal imaging finds hotspots that signal potential faults. It’s non-contact and works while the system runs, causing little disruption.

Steps to Prevent Common Problems

Step 1: Proper Setup Practices

Correct setup is vital for long-lasting, reliable cables. During installation, avoid stressing the conductor or insulation. Medium voltage cables use aluminum class 2 circular compacted conductors for good electrical flow. Rough handling can cause damage, hurting performance. Following manufacturer guidelines and using skilled workers can reduce risks.

Step 2: Regular Checks and Monitoring

Routine maintenance catches potential issues early. Activities include visual checks, electrical tests, and thermal imaging. Regular monitoring tracks cable condition over time, allowing quick fixes. For example:

Partial discharge tests can show early insulation wear.
TDR can find small faults not visible outside.
Thermal imaging spots temperature changes signaling overheating.

A solid maintenance plan boosts system reliability.

Step 3: Using Quality Materials

High-quality materials improve cable performance and durability. These cables have layers like a copper tape metallic screen and a PVC inner sheath. Each part is crucial:

Insulation: XLPE resists heat aging and has strong electrical properties.
Armour: Non-magnetic steel tape or aluminum wire adds strength.
Outer Sheath: PVC protects against grease and oil.

Choosing materials meeting standards like IEC 60502-2 ensures reliability and low maintenance.

Medium voltage cable systems need routine visual checks, partial discharge tests, TDR, and heat scans to spot problems. Good installation, regular upkeep, and quality materials improve dependability and extend lifespan. Pick TDDL’s high-quality medium voltage cables for steady power, fewer outages, and savings in many uses. If any inquiries, contact us anytime.
