XLPE Cable Failures: Causes, Signs & Prevention

I. Introduction

XLPE cables, or cross-linked polyethylene insulated cables from TDDL cable, form a key group of electrical cables in today's power distribution systems. These cables get their name from the insulation material, XLPE. It is a chemically altered version of polyethylene with excellent mechanical and thermal qualities. The cross-linking method changes polyethylene's straight molecular form into a three-dimensional web. This makes it heat-resistant. It also boosts its overall performance greatly.

Cross-linked polyethylene materials offer key benefits. Their electrical traits surpass those of regular polyethylene. Their mechanical strengths exceed polyethylene too. So, they see wider use than plain polyethylene. This positions XLPE insulation as perfect for tough tasks with medium and high voltages. You often find XLPE cables in power transmission and distribution. They appear in industrial sites, underground setups, tunnels, and even underwater spots.

II. Types of XLPE Cables

Classification by Voltage Level

XLPE cables fall into categories based on voltage rating.

Low-voltage (LV) XLPE cables: They work well for voltages under 1 kV.
Medium-voltage (MV) XLPE cables: People use them mainly for 1 kV to 35 kV.
High-voltage (HV) and extra-high-voltage (EHV) XLPE cables: These handle voltages over 35 kV.

Peroxide chemical cross-linked polyethylene insulation material serves chiefly in the insulation layer of medium voltage cables. Silane cross-linked polyethylene insulation material fits mainly in the insulation layer of low-voltage power cables.

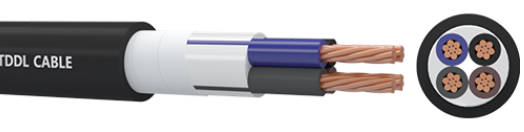

Classification by Structure and Application

XLPE cables also vary by structural design and application setting.

Armored versus unarmored

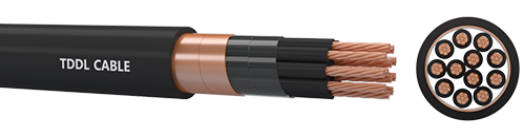

Single-core versus multi-core
Underground, tunnel, trench, or overhead use

XLPE insulated thick round steel wire armored PE sheathed power cable suits indoor, tunnel, cable trench, shaft or underground laying. This shows their flexibility in tough surroundings.

III. Main Causes of XLPE Cable Failures

3.1 Insulation Aging Factors

XLPE insulation proves sturdy. Yet, it wears down over time from various issues.

Electrical stress: Steady contact with high voltage can spark partial discharges. These harm the insulation.
Thermal aging: Frequent heat cycles break down the polymer. The long-term allowable operating temperature rises from 70°C to 90°C (or more). The short-circuit allowable temperature jumps from 140°C to 250°C (or higher). This boosts mechanical properties and heat tolerance. It keeps the original strong electrical traits intact.
Chemical and environmental effects: Dirt, water entry, and chemical contact can weaken cable strength. Silane cross-linked polyethylene insulation material for overhead cables has built-in weather resistance.
Mechanical and biological damage: Rodents, ground shifts, and physical strain during setup or use can cause splits or holes in insulation.

3.2 Cable Accessories Failures

Joints and terminations count as vital parts. They often fail easily.

Wrong installation can create air pockets or poor alignments. These encourage partial discharges.
Dirt during assembly might cause tracking or corona discharge.

These spots serve as weak points in the strong XLPE setup.

3.3 External and Human-Caused Damage

Outside factors contribute heavily to early cable breakdowns.

Digging or building work can cut or harm buried cables.
Bad handling, like bending too much or pulling roughly, can create tiny cracks in the XLPE insulation.

3.4 Manufacturing and Quality Issues

Problems can start right from the factory.

Material defects: Impurities in the polymer or weak mixing methods reduce performance.
Inconsistent production quality: Uneven cross-linking levels impact dielectric strength. The higher the insulation withstand voltage level, the greater the purity needs. And the material costs more.

IV. Warning Signs of Aging and Failure

Spotting early alerts is crucial to dodge major breakdowns.

Overheating: It often signals insulation failure ahead. You can spot local heat with thermal imaging.
Insulation degradation: This shows as splits, bulging, or color changes in the cable sheath.
Partial discharge and abnormal operation: These involve sounds in switchgear, power swings, or relay trips. They often point to insulation issues.

V. Fault Detection Challenges

Finding faults in XLPE cables proves tough. This is especially true for underground ones.

Fault location needs special tools like TDR (Time Domain Reflectometry) or impulse current methods.
Standard checks might overlook early wear that has not shown up electrically yet.

Plus, high impedance faults may not show on usual test devices. This makes predictive maintenance harder.

VI. How to Prevent Downtime

Cutting service stops calls for a forward-thinking plan at all steps.

Proper cable selection and design: Pick the right voltage rating, environmental protection, and mechanical shielding for the site. Anti-copper conductor oxidation type ultraviolet radiation cross-linked insulation material works mainly in the insulation layer of low-voltage power cables.
Correct installation practices: Sticking to maker instructions for bend radius, joining, and ending keeps cable wholeness.
Regular inspection and maintenance: Routine reviews with thermal imaging, sheath tests, and insulation resistance checks track wear patterns.
Monitoring and early warning technologies: Adding smart sensors for live tracking spots partial discharges, heat oddities, and water entry early.

Digital tools with AI-based checks can improve upkeep timing. They also cut surprise outages.

VII. Conclusion

Cross-linked polyethylene materials have drawbacks: tough to process and prone to burning. Even with its strengths, XLPE insulation faces risks of failure. Common triggers include electrical stress, thermal wear, mechanical harm, factory flaws, and accessory problems. Alerts like overheating and partial discharge demand quick action. Fault finding and fixing pose hurdles. This is true for underground setups especially. So, preventive steps matter a lot. They include smart design choices, careful setup, status checks, and forward maintenance. These ensure steady work. Spotting issues early avoids expensive stops in XLPE-based systems.

FAQ

Q: What are the main advantages of xlpe insulation cable over PVC?

A: Xlpe insulation cable handles higher operating temperatures (90°C vs. 70°C). It offers better mechanical strength, strong resistance to moisture and chemicals, and greater current-carrying capacity. This makes it great for medium- and high-voltage uses.

Q: What are the common disadvantages of xlpe insulation cable?

A: The chief downsides of xlpe insulation cable involve harder processing in making and greater flammability (it catches fire more easily than some options). Yet, proper sheathing often counters these.

Q: What causes most failures in xlpe insulation cable?

A: Most failures in xlpe insulation cable stem from insulation aging (electrical stress, thermal cycling, water trees). They also come from poor joint/termination setup, outside mechanical harm (like digging), and water entry that leads to partial discharges or breakdown.
