ACSS vs ACSR Conductor: Which One Performs Better in High-Temperature Overhead Lines

How Does an ACSR Conductor Work in Overhead Power Transmission?

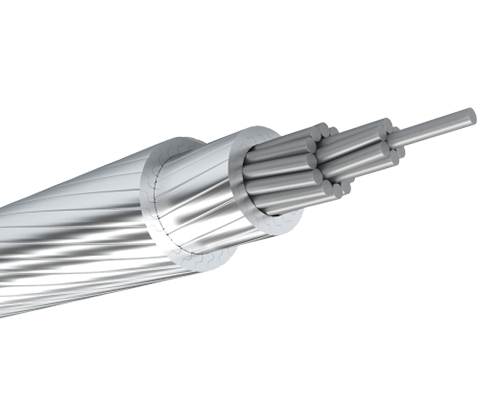

ACSR , short for Aluminum Conductor Steel Reinforced, is the most widely used bare conductor for overhead power transmission lines. To properly design power transmission projects, it is essential to get familiar with the structure and working principle of ACSR conductor. The conductor is constructed with multiple layers of hard-drawn aluminum wires stranded around a galvanized steel core. Aluminum strands take charge of electric conduction, while the steel core bears mechanical tension to support long-distance spanning. This composite structure balances cost and operational reliability, making it the mainstream choice for conventional overhead power lines

What Are the Key Properties of an ACSR Conductor?

ACSR features excellent tensile strength, moderate heat resistance and remarkable cost performance. Its stable mechanical structure can maintain intact form under various loads, and it provides consistent current-carrying capacity across all standard specifications. Anti-rust grease can be coated on the steel core or the whole conductor to resist corrosion.Thanks to the high tensile strength of its steel core, ACSR allows larger spacing between transmission towers and effectively cuts overall project costs. Engineering teams usually refer to standard ACSR specification tables to select matching models for primary and secondary power distribution networks.

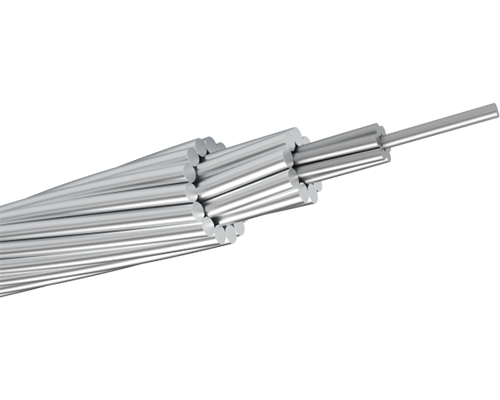

ACSS vs ACSR Conductor Which One Performs Better in High-Temperature Overhead Lines

What Is an ACSS Conductor?

How Is an ACSS Conductor Structured Compared to ACSR?

ACSS conductors are improved versions of older ACSR conductors. In ACSS conductors, steel strands form the core of the conductor. These steel strands are covered with two or more layers of annealed aluminium 1350-O conductor material. While ACSR conductors are made of hard-drawn aluminium conductor material, improved ACSS conductors are made of annealed conductor material 1350-O, which remains flexible even at the highest temperature. Thus, improved ACSS conductors are able to carry high loads and, at the same time, maintain conductivity. As such, the ACSS conductors are an excellent option for conducting electrical power.

Why Is the ACSS Conductor Preferred for High-Temperature Applications?

ACSS is specially designed for overhead lines that need long-term high-temperature operation. It can continuously work at up to 250°C without permanent loss of mechanical strength, and produces far less sag than ACSR of the same size under heavy loads.After prestretching during installation, ACSS can suppress aeolian vibration by itself. In addition, long-term creep of aluminum will not cause permanent sag changes of the conductor. All these merits make ACSS a perfect pick for high-temperature working scenarios, where ordinary conductors are prone to excessive sag or permanent damage.
acsr conductor

ACSS vs ACSR Conductor: Which Performs Better in High-Temperature Overhead Lines?

How Do ACSS and ACSR Conductors Differ in Electrical Performance?

The performance gap between ACSS and ACSR is most obvious under high-temperature working conditions. The fully annealed aluminum of ACSS can maintain stable conductivity when heated, whereas the resistance of hard-drawn aluminum in ACSR will rise sharply with temperature increase.Therefore, ACSS delivers larger current-carrying capacity and lower power loss under continuous heavy loads, which fits transmission corridors requiring stable high power output.

Which Has Better Mechanical Strength — ACSS or ACSR Conductor?

At normal temperature, ACSR owns higher initial tensile strength due to its hard aluminum strands. However, after repeated thermal cycles, the hard aluminum will soften and elongate irreversibly, leading to gradual tension attenuation.For ACSS, the steel core bears almost all mechanical loads even above 200°C. Its overall tension stays stable throughout service life, with negligible long-term creep deformation.

How Do Temperature and Sag Affect ACSS vs ACSR Conductors?

What Happens to Sag When Temperature Increases in an ACSR Conductor?

Aluminum expands visibly when heated, which will greatly increase the sag of ACSR and reduce ground clearance. Traditional ACSR lines usually need regular tension adjustment to meet safety clearance standards after long-term thermal aging.

How Does the ACSS Conductor Manage Thermal Expansion and Sag?

ACSS fundamentally solves the problems of thermal expansion and excessive sag. Annealed soft aluminum avoids permanent elongation under sustained high temperature, and the steel core undertakes most mechanical stress at high operating temperatures. During peak power consumption periods, ACSS maintains much lower sag compared with ACSR of the same specification.

When Should You Choose an ACSR Conductor for Your Project?

In What Conditions Does the ACSR Conductor Offer Advantages?

ACSR is suitable for projects with moderate operating temperatures and stable power loads. It has lower upfront procurement cost, which brings obvious advantages for budget-limited new line projects or projects where tower reconstruction is unavailable.Construction teams worldwide are very familiar with the installation and maintenance process of standard ACSR, which can shorten on-site construction time and reduce after-sales maintenance costs.

How Can You Optimize the Use of an ACSR Conductor from TDDL cable?

TDDL Cable manufactures full-series ACSR conductors in accordance with IEC 61089 and ASTM B232 standards. Custom strand structures can be provided to match different span lengths and tension requirements. Anti-rust grease coated on the steel core can enhance corrosion resistance for coastal and industrial polluted areas.

When Should You Choose an ACSS Conductor Instead of an ACSR Type?

Why Is the ACSS Conductor Ideal for Grid Upgrades and High Load Areas?

ACSS allows power enterprises to boost transmission capacity without replacing original transmission towers. It can transmit larger current in the same corridor while keeping sag within a safe range during overload periods. Urban power grids with fluctuating peak loads can greatly benefit from the outstanding thermal stability of ACSS.

How Can TDDL cable’s ACSS Solutions Improve Transmission Efficiency?

TDDL Cable’s ACSS series supports long-term continuous operation at up to 250°C. The steel core adopts zinc-aluminum alloy coating for stronger anti-corrosion performance. Stable high conductivity under high temperature reduces power loss, extends maintenance cycles and lowers long-term grid operation costs.

Buyer’s Checklist: Selecting Between ACSS and ACSR Conductors from TDDL cable

What Factors Should Be Considered Before Purchasing a Conductor?

Technical Requirements

Confirm the required operating temperature range, current-carrying capacity, tower span length and load fluctuation rules before selecting between ACSS and ACSR.

Environmental Conditions

Take wind load, ice coating, air pollution and annual temperature variation into consideration to evaluate long-term service performance.

Budget and Maintenance Planning

Calculate the full life cycle cost comprehensively. Although ACSS has higher initial purchase cost, it can cut later maintenance expenses thanks to larger transmission capacity and less sag adjustment work, so the total comprehensive cost is lower in the long run.

FAQ

Q: What is the main difference between an ACSS conductor and an ACSR conductor?

A: The core difference lies in the processing mode of aluminum materials. ACSR adopts hard-drawn aluminum, while ACSS uses fully annealed aluminum. This difference enables ACSS to work at higher temperatures and effectively control sag.

Q: Which conductor performs better in high-temperature overhead lines — ACSS or ACSR conductor?

A: ACSS shows far better performance under high-temperature conditions. It can keep stable conductivity and sag state over long tower spans.

Q: Can I replace my existing ACSR conductor with an ACSS conductor without changing tower structures?

A: Yes. Many power suppliers replace ACSR with ACSS on original tower structures, as their outer dimensions are consistent, while ACSS features greatly improved high-temperature resistance.

Q: How does TDDL cable ensure quality in its ACSS and ACSR conductors?

A: TDDL Cable produces ACSS following ASTM B856 standards and ACSR following ASTM B232 standards. Strict inspection is carried out in every production link.

Q: Is the cost difference between ACSS and ACSR conductors justified by performance benefits?

A: ACSR has lower one-time purchasing cost. ACSS can bring long-term economic benefits by increasing transmission capacity and reducing frequent sag adjustment work, making it more cost-effective for most grid upgrading and high-load projects.
