What Is an ACSR Conductor: Key Properties for Transmission Engineers
Understanding the ACSR Conductor in Power Transmission
Definition and Structure of an ACSR Conductor
Aluminium Conductor Steel Reinforced (ACSR) is a concentrically stranded conductor. It has one or more layers of hard-drawn aluminum wire over a galvanized steel wire core. The outer layers of aluminum act as the main conducting medium. Meanwhile, the inner galvanized steel core adds mechanical strength. The core can be a single wire or stranded, based on the size.This mixed structure makes ACSR conductors very suitable for transmission tasks. Both strength and conductivity are vital there. Aluminum delivers great electrical performance. The steel core handles the mechanical load well. This is especially true over long distances or tough terrains.

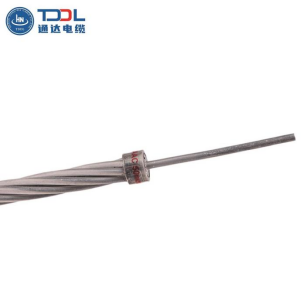

.png)
Common Applications of ACSR Conductor in Transmission Systems
ACSR conductors serve as bare overhead conductors. They work in primary and secondary distribution. They also act as messenger support. ACSR conductors appear widely in overhead power lines. Their good strength-to-weight ratio is a key reason. These features make them perfect for long spans across rivers, valleys, or mountains.They suit harsh settings too, like strong winds or heavy ice. A clear example is the ±660kV Matiari-Lahore HVDC Transmission Project in Pakistan. It used ACSR conductors for high-voltage, long-distance energy transfer. Project Location: Pakistan (2021). From TDDL cable, these reliable options ensure smooth operations in such projects.
Key Material Properties of the ACSR Conductor
Electrical Conductivity Characteristics of an ACSR Conductor
The aluminum strands in an ACSR conductor carry the main electric current. This setup provides high conductivity. ACSR offers the right strength for line design. You can adjust the steel core stranding. This lets you get the needed strength without losing ampacity.Still, the electrical resistance of an ACSR conductor depends on the aluminum-to-steel ratio. More aluminum usually boosts conductivity. Higher steel content raises mechanical strength. But it cuts some conductivity. Over time, issues like oxidation and thermal cycling can impact conductivity.
Mechanical Strength and Durability of the ACSR Conductor
Mechanical toughness stands out in ACSR conductors. ACSR offers the right strength for line design. The steel core boosts tensile strength a lot. This fits spans that need solid support without much sag.It holds up well under stress. Examples include wind vibrations, ice buildup, or heat expansion. Such resilience keeps line safety and integrity intact. You can add grease to the core for better corrosion protection. Or infuse the whole cable with grease. This improves lifespan in harsh or dirty areas.
Thermal Performance of the ACSR Conductor Under Load
Heat Dissipation Capabilities of an ACSR Conductor
The aluminum surface helps spread heat effectively. This heat comes from power transmission. In normal conditions, ACSR conductors work safely up to 90°C. The insulation is rated for 90°C normal service temperature.Yet, long exposure to hotter temperatures can harm material qualities. It may also raise electrical resistance. Good heat control is key. It prevents early wear or heat damage to the conductor and its supports.
Current-Carrying Capacity of the ACSR Conductor in Transmission Lines
Ampacity, or current-carrying capacity, varies for an ACSR conductor. Factors include size, ambient temperature, and height above ground. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.However, more steel in the design lowers overall ampacity. Steel conducts less than aluminum. Right sizing of the conductor keeps thermal limits safe during high loads. This maintains performance and safety.
Design Considerations for Using an ACSR Conductor in Power Systems
Selection Criteria for an ACSR Conductor Based on Project Needs
Selecting the right ACSR conductor type and setup needs a full review of project details. These cover span length, voltage level, environmental loads like wind and ice, and budget factors.You can tailor the aluminum-to-steel ratio for specific mechanical or electrical needs. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. Corrosion resistance matters too, mainly in coastal or factory zones. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease. From TDDL cable, AAC conductor options complement ACSR for varied needs.

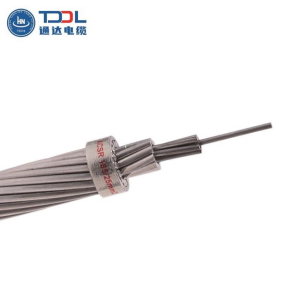

.png)
Installation Guidelines for an ACSR Conductor in Overhead Lines
Installing ACSR conductors requires special methods. These ensure strong structure and steady electricity flow. Use tensioning tools to set proper sag and ground clearance across the span.Focus on joining techniques and hardware choices. This avoids galvanic corrosion where metals meet. Follow local rules and safety steps during installation. This guarantees compliance and steady performance. From TDDL cable, ACSR conductors integrate seamlessly into overhead conductors setups.
Advantages and Limitations of the ACSR Conductor Technology
Performance Benefits of Using an ACSR Conductor in Transmission Networks
ACSR conductors shine with their mix of low weight and high tensile strength. ACSR offers optimal strength for line design. This suits overhead transmission lines that need stability and efficiency.They cost less than all-copper options for far reaches. Their success in worldwide projects shows reliability. They adapt well to different places and weather.
Challenges Associated with the Use of an ACSR Conductor Over Time
ACSR conductors have strengths, but they face issues too. Corrosion at the aluminum-steel join is a big worry. This happens if grease protection is skipped. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.Long exposure to wild temperature shifts or dirty air can weaken them. Routine checks and upkeep spot problems early. This keeps operations reliable over time.
ACSR conductors stay vital in today's power grids. They balance performance, cost, and toughness when picked and cared for properly.
