Low Voltage Cables Explained: Key Functions and Classifications in 2026
Core Functions of Low Voltage Cables in Modern Systems
Transmission of Data, Signals, and Power

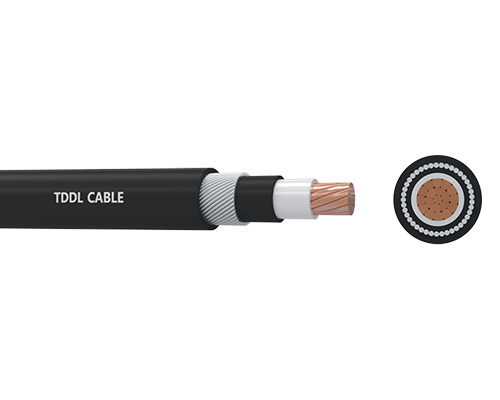

Low voltage cables, which handle 3,000 volts or less, serve a vital purpose. They enable smooth transfer of data, control signals, and electric power in combined setups. These cables help create dependable links between connected devices like routers, controllers, and sensors. They act as the digital backbone of today's structures. In building automation, they power low-energy parts such as occupancy sensors, thermostats, and control panels. Their ability to provide steady voltage across brief spans suits these uses well. This ensures steady work and little signal loss.Besides data, low voltage cables also handle power sharing in factory environments. These power cables supply electricity in low voltage setup systems. Many types, like the NAYY (VLV) and NA2XY (YJLV) from TDDL cable, are built for strong electrical sharing with physical safeguards. They fit fixed setups on cable trays, inside pipes, or attached to walls. Thus, various building parts—lighting, communications, security—get powered and linked effectively. Low voltage cables are usually made of copper, aluminum, or AA-8000 aluminum alloy. For instance, the NA2XBY cable from TDDL cable offers added strength for buried or direct ground installs, but it cannot go in water or ducts. It suits indoor, outdoor, or underground use without burial risks.
.png)
Role in Structured Cabling Infrastructure
Structured cabling setups rely on low voltage cables as their main support. They form the core for telecom and IT networks. These cables make sure voice, data, and video signals move freely through spaces. Their standard design allows easy changes and growth. This is key in business areas where networks change with company needs.By using standard cable handling methods, like patch panels and cable trays, low voltage wiring improves setup order. This organized way not only eases updates and fixes but also cuts stoppages. The flexibility of these setups makes them basic in top-performing buildings and smart sites.
Classifications of Low Voltage Cables by Application Type
Communication and Network Cabling
A major group of low voltage cables covers those for talks and networking. Ethernet cables such as Cat5e, Cat6, and Cat6a are common. They link computers, switches, VoIP phones, and wireless points in Local Area Networks (LANs). These copper lines support fast gigabit speeds. At the same time, they cut down on signal mix and weakening.Fiber optic cables form another group for quick data moves over far reaches. They resist electrical noise, so they work well for main links in company networks or between structures. Together, these talk cables build the needed base for digital ties in many fields.
Audio/Visual (A/V) Cabling Systems
In places where media sharing matters a lot—like meeting rooms, halls, and fun spots—low voltage A/V cabling setups are key. HDMI cables often carry high-clear video and sound between items like projectors and screens. Coaxial cables still help in old video setups and satellite links.Speaker wires are yet another kind of low voltage cable made for sending audio to sound systems or talk setups. These systems need steady signal strength and small waits. Good low voltage wiring supports both.
Security and Surveillance Cabling Solutions
Security setups depend a lot on low voltage cabling to join cameras, entry panels, motion finders, and alerts. Power over Ethernet (PoE) tech has grown common. It lets IP cameras and other items get power and data via one Cat5e or Cat6 cable.Shielded twisted pair (STP) cables help a lot in cutting signal noise in key spots like watch rooms or near strong power gear. Their cover gives extra guard against electrical buzz. This could harm picture sharpness or finder precision otherwise. Note that low voltage cables cannot handle monitoring video tasks.
Building Automation and Control Wiring
Smart building links depend on special low voltage wiring like RS485 or BACnet MS/TP cables. These talk methods are vital in tying HVAC gear, light systems, energy gauges, and main controllers.Such wiring allows auto control plans that boost energy savings and user ease. It connects spread-out parts to a main system. So, site managers can watch work live and tweak settings from afar. These are main traits in today's smart buildings.
.png)
Standards and Compliance for Low Voltage Cable Installations
Industry Standards Governing Low Voltage Cables
Following trade rules is key for safe and good use of low voltage cables. The TIA/EIA-568 set gives full guides for structured cabling plans, setups, and results in business buildings. These rules ensure even send quality across makers and techs.On rules side, the National Electric Code (NEC) lists safety needs for low voltage wiring in varied site types. This covers fire levels, wire cover types, and allowed setup ways. All ensure safety in use and care.
Labeling Requirements and Color Coding Practices
Good labeling of low voltage cables speeds up fixes and later adds. Clear marks on each cable end—like spot tags or port numbers—aid techs in finding issues without big upsets.Standard color marks boost spot-on ID. For example, blue may mark data lines, red for voice paths, and green for control signs. This cuts mix in care tasks and helps meet local rule needs.
Benefits of Using Low Voltage Cables in 2026 Infrastructure Projects
Enhanced System Efficiency and Performance
New shield methods in current low voltage cables lessen signal drop over close ranges. STP cabling stops electrical noise from nearby sources like bright lights or HVAC units. This keeps better signal truth.In factory spots, these power cables can lay indoors, in tunnels, or underground. They fit uses needing strong work in tough spots. Their skill to handle physical pushes ensures steady run even under body strain.
Greater Flexibility in Design and Scalability Options
Low voltage cabling bases are naturally flexible. They let new items join with little re-setup. Upgrading a network switch or adding watch cameras often uses current cable paths. No big changes needed.This growth ability is vital in changing areas like clinics or tech sites where tech needs shift fast. Structured cabling plans around low voltage parts give the quickness to guard future sites.
Improved Aesthetics and Space Optimization in Facilities
Unlike high-voltage choices, low voltage cables have thinner shapes. This lets easy paths through tight spots like roof gaps or lifted floors. It boosts looks and eases cable order with tracks or pipes.Their small size also aids better air flow in boxes or server units. This matters in stopping heat in data hubs or machine rooms.
Lower Operational Costs Over Time Due to Simplified Maintenance
Smart low voltage cable setups cut care costs by easing issue spots. These cables can fix on cable trays, in pipes, or to walls. They offer open paths for fixes or adds.Clear marks with neat paths lower stop times in service visits. Plus, their long work life—mainly when guarded against body harm—cuts swap needs.
Common Challenges with Low Voltage Cable Installations
.png)
Mistakes That Impact System Reliability

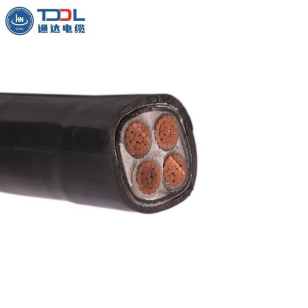

Wrong setup ways can harm system work a lot. For example, too much pull force in cable runs can hurt inner wires or cover layers. They can take outer physical force, but not big pull force. This note fits some factory-grade cables like the NA2XBY (YJLV22). It shows why sticking to maker specs matters in setup.Another common problem is poor split from high-voltage lines. Low voltage cables running side by side with power paths without enough space or cover can face electrical noise. This weakens signal strength. It hits data or watch systems hard.
Importance of Professional Planning and Documentation
Skipping good planning often leads to messy cabling. This blocks later adds or checks. A badly noted system may need full trace work just to find ends. It wastes time in key tasks.Right records—like built drawings, label lists, and rule papers—are vital for work ease. They also help pass code checks or safety reviews. These files give clear views on cable paths, ends, and role groups. They ensure long-term handling over site lives.
