Why ACSR-Aluminum Conductor Steel Reinforced Remains Ideal for Long Spans
Structural Composition and Engineering of ACSR
Core Design: The Role of Steel Reinforcement
The basic strength of ACSR (Aluminum Conductor Steel Reinforced) comes from its special makeup. At the center is a strong galvanized steel core. This core is key for long-span uses. Aluminium Conductor Steel Reinforced (ACSR) is a concentrically stranded conductor. It has one or more layers of hard-drawn aluminum wire over a galvanized steel wire core. The steel core can be a single wire or several strands. It depends on the conductor size and needed mechanical traits.The steel reinforcement boosts sag resistance under heavy loads. ACSR provides the best strength for line design. Different steel core stranding lets you get the wanted strength. And it does not cut ampacity. So, engineers can build overhead transmission lines that cross wide areas without extra support structures. This is vital for places like mountains and river crossings.
Plus, the core gives firm support to the outer aluminum strands. It helps the conductor keep its shape under mechanical stress and heat changes.

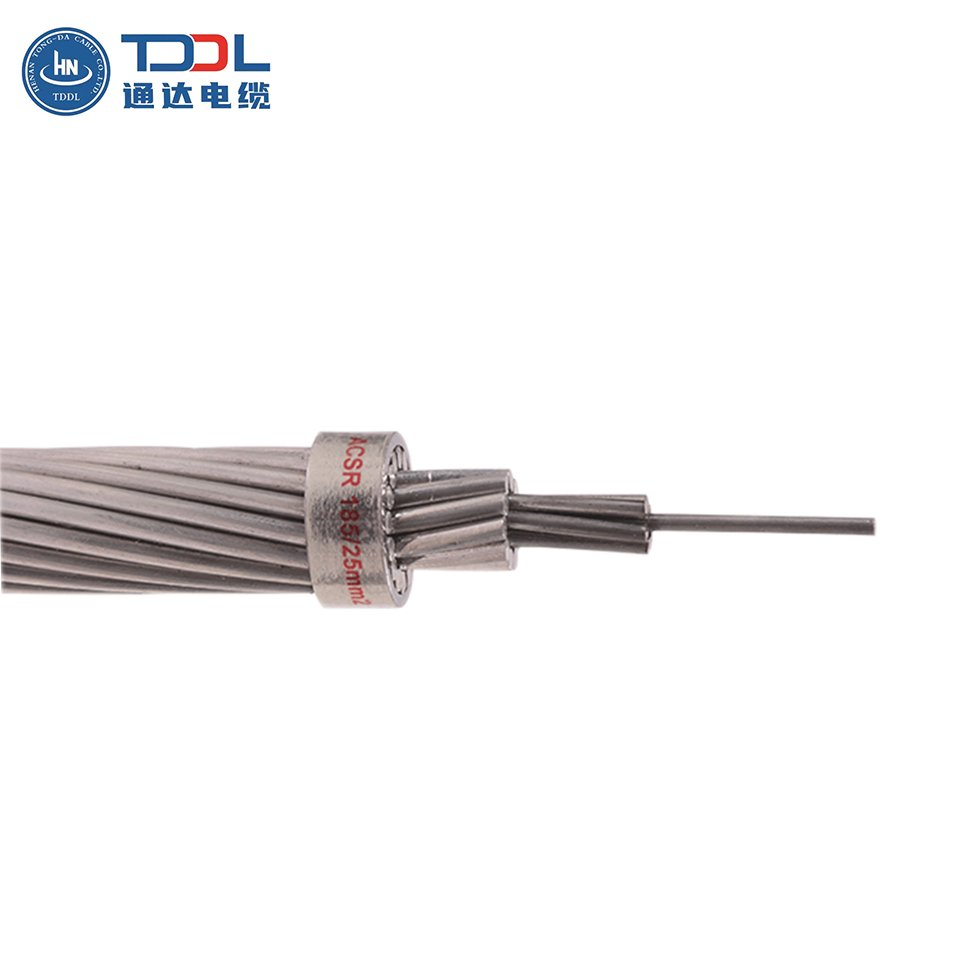

.png)
Outer Layers: High-Conductivity Aluminum Stranding
Around the steel core are layers of hard-drawn aluminum wires. These strands carry the electrical current well. Aluminium Conductor Steel Reinforced (ACSR) is a concentrically stranded conductor. It has one or more layers of hard-drawn aluminum wire on a galvanized steel wire core. Aluminum keeps things light. This lowers the total load on transmission towers.This setup improves the conductor’s weight-to-conductivity balance. It also makes installation and upkeep easier in overhead setups. The concentric aluminum layers help with heat release too. So, performance stays steady under changing current loads.
Stranding Configurations for Performance Optimization
ACSR conductors come in various stranding setups. These include standard round wire, compacted, and trapezoidal types. Each setup is made to hit certain performance goals. Such as tensile strength and ampacity.You can adjust the mix of aluminum and steel strands to fit project needs. This includes span length, terrain, and weather exposure. Such options let utilities improve both mechanical and electrical results. And they do so without losing safety or adding extra cost.
Mechanical Advantages in Long-Span Applications
High Tensile Strength for Extended Distances
A key trait of ACSR is its great tensile strength. This comes from the galvanized steel core. ACSR provides the best strength for line design. Different steel core stranding lets you get the wanted strength. And it does not cut ampacity. So, transmission lines can cover long stretches with few support structures.Fewer towers mean lower building costs. They also reduce harm in sensitive natural spots. Steel-cored aluminum stranded wire has a simple structure. It offers high strength, good sag performance, long pole spacing, low line costs, easy setup and repair, large transmission capacity, and suits laying across special geography like rivers and valleys.
Sag Control and Thermal Expansion Management
ACSR conductors show little sag even in hot conditions. This happens because the galvanized steel core stays stable in heat. It does not stretch much. ACSR is used for overhead distribution and transmission lines. It works steadily at high temperatures up to 250°C without losing strength. It sags less than a similar ACSR under electrical loads.This feature helps a lot in areas with changing loads. Like deserts or cold places. There, temperature shifts could hurt line clearance and safety otherwise.
Wind and Ice Load Resilience
ACSR’s build handles outside forces well. Such as strong winds, galloping, and ice buildup. It sags less than a similar ACSR under electrical loads. It damps itself if prestretched during setup. And its final sags do not change from long-term creep of aluminum.This toughness is key for grid reliability in bad weather. The conductor’s durability cuts down on fixes. It also keeps power flowing without stops over long routes.

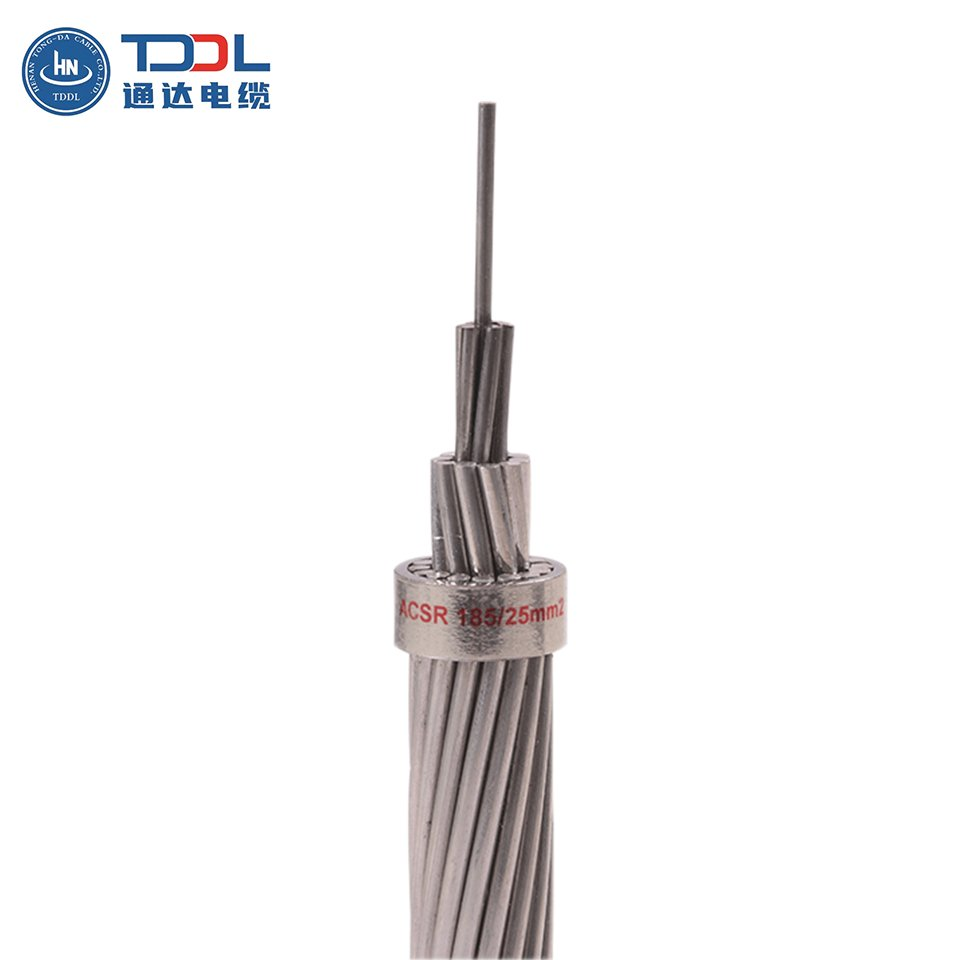

.png)
Electrical Performance Characteristics of ACSR
Ampacity Ratings Suited for High Voltage Transmission
ACSR conductors are known for their strong current capacity. They often work in high-voltage setups from 69kV and up. This is due to good conduction and lasting build.Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. These traits make them perfect for far-off power sending. There, you need to match electrical output with strong structure.
Compatibility with Modern Grid Demands
Power grids are changing to add renewable sources and handle city growth. ACSR fits well with AC and DC overhead systems. The conductor scales easily. So, utilities can update old setups without full changes.Its flexibility meets rising energy needs. It also aids updates in regional and national networks.
Standards, Specifications, and Industry Compliance
Adherence to ASTM Standards and Utility Requirements
ACSR conductors are made to meet global standards. Like ASTM B232/B232M, IEC 61089, BS EN 50182, and AS 3607. ACSR product standards include GB/T 1179, IEC 61089, ASTM B232, BS EN 50182, BS 215-2, AS 3607, and more.These approvals ensure steady build quality, size accuracy, and reliable work. Utilities in North America and elsewhere demand these. ACSR provides the best strength for line design. Different steel core stranding lets you get the wanted strength. And it does not cut ampacity.
Coating choices like Class A, B, or C galvanized finishes are options. They depend on corrosion risks in the area.
Bird Name Coding System for Specification Clarity
To make specs and buying easier, ACSR products use a bird name coding system. This labels them simply. It gives unique names based on size and strand setup. So, makers, engineers, and utilities can talk clearly.Real-world Applications Across Power Infrastructure
Use in River Crossings, Canyons, and Remote Terrain
ACSR’s strong tensile strength fits big land features well. Like rivers, canyons, and hard-to-reach spots. It does this without many towers. These ultra-high strength conductors from TDDL cable are used for crossing rivers or long spans. Where standard ACSR wires would not work.This cuts environmental harm by limiting land changes. It also eases getting rights-of-way in protected zones.
Integration into Renewable Energy Transmission Lines
Wind farms and solar sites are often far from users. ACSR links them reliably to the main grid.Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. It manages changing loads without wear. This fits the uneven output of renewables.
So, ACSR helps add renewable energy. It keeps the grid steady too.
Factors Supporting Continued Use of ACSR Today
Proven Track Record in Global Transmission Networks
.png)
Years of use have shown ACSR works well in many settings around the world. Steel-cored aluminum stranded wire is made by twisting aluminum and steel wires. It has a steel core inside and one or more layers of aluminum wires outside on the galvanized steel core. This is a reinforced conductor. It holds a key spot in power and transmission lines.
Utilities trust it for vital projects. Its steady action over time proves this.
Balance of Mechanical Strength, Electrical Efficiency, and Cost
ACSR leads the market with its great mix of low cost, strong build, and good electrical work.New ideas keep improving it. Like better anti-rust coatings and smarter stranding methods. These boost its value in new builds and upgrades. Where you want better efficiency without big spending.
