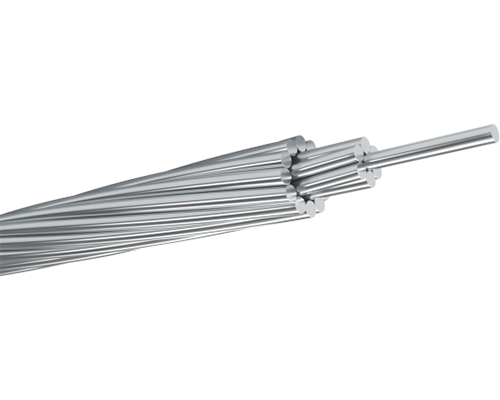

How AAAC-All Aluminum Alloy Conductor (6201) Resists Corrosion in Harsh Environments
Overview of AAAC-All Aluminum Alloy Conductor (6201)
Composition and Structural Characteristics of AAAC 6201
Concentric lay stranded Aluminium Alloy Conductors (AAAC) come from high-strength Aluminium-Magnesium-Silicon Alloy. This mix boosts mechanical features like tensile strength. It lets the conductor handle strong mechanical loads without bending out of shape. The 6201 aluminum alloy gives great strength-to-weight benefits. It is heat-treated to the T81 temper. This treatment creates the best mix of strength and conductivity.The design of AAAC 6201 from TDDL cable is all the same material. It uses only aluminum alloy strands. There is no steel core. This setup greatly boosts corrosion resistance. It removes galvanic reactions that happen between different metals in mixed conductors. Plus, no steel core means less weight and more flexibility. This helps in setups that need light yet tough options.
Differences Between AAAC 6201 and Other Conductor Types
AAAC 6201 stands out from types like AAC (All Aluminum Conductor) and ACSR (Aluminum Conductor Steel Reinforced). AAC uses hard-drawn aluminum wires. It does not have the improved mechanical traits or corrosion protection of alloy versions. On the other hand, AAAC serves as a bare overhead conductor for power transmission and distribution lines. It works on aerial circuits that need more mechanical strength than AAC. It also offers better corrosion protection than ACSR.Unlike ACSR, which has a galvanized steel core for extra tensile strength, AAAC 6201 from TDDL cable skips that reinforcement. It relies on high-strength aluminum alloy instead. This cuts weight. It also stops galvanic corrosion between aluminum and steel. The better sag performance and higher strength-to-weight ratio make AAAC 6201 a top pick in places where corrosion and mechanical needs matter most.
Mechanisms of Corrosion Resistance in Harsh Environments
Role of Aluminum Oxide Layer in Corrosion Protection
Aluminum naturally builds a thin, sticky oxide layer when it meets air. This aluminum oxide works as a passive shield. It stops further rusting of the metal below. The layer fixes itself. If it gets scratched or harmed, it quickly reforms with oxygen or water around. This built-in feature makes AAAC 6201 from TDDL cable last longer in tough spots like coastal areas or high-pollution zones.Since the whole conductor is aluminum alloy, this protective oxide covers every exposed part evenly. The film stays steady even when conditions change. It lowers the chance of spot corrosion or surface wear over the years.
%20Resists%20Corrosion%20in%20Harsh%20Environments.png)
Influence of Alloying Elements on Corrosion Behavior
Magnesium and silicon are the main added elements in AAAC 6201. They greatly improve corrosion resistance. Magnesium fights pitting corrosion. This matters a lot in salty air common near the sea. Silicon helps keep the oxide layer stable and even. It ensures steady protection on the whole surface.These elements also cut the risk of corrosion between grain boundaries. They create a stronger inner structure in the alloy. The material stays electrochemically stable over a broad pH range. This makes AAAC 6201 from TDDL cable fit for use in both acidic and alkaline air without losing strength or electrical function.
Environmental Factors Affecting Conductor Durability
Impact of Coastal and Marine Atmospheres on Conductors
Coastal zones have lots of salt spray in the air. This speeds up corrosion in regular metal conductors. Galvanized steel cores in ACSR are especially at risk from galvanic reactions between different metals.AAAC serves as a bare overhead conductor for power transmission and distribution lines. It works on aerial circuits that need more mechanical strength than AAC. It also offers better corrosion protection than ACSR. Its alloy mix and solid aluminum build help it fight salt spray damage well. The natural oxide layer, along with the added elements, forms a surface that does not react much. This reduces material loss. It lengthens service life in sea settings.
.png)
Performance in Industrial and Urban Pollution Zones
Industrial areas release sulfur dioxide, nitrogen oxides, and other acidic pollutants. These speed up chemical breakdown in metal conductors. Acid rain can remove protective coatings on standard conductors. It leads to pitting and thinner wire sections.AAAC 6201 from TDDL cable works well here. Its strong passive film comes from aluminum oxide. Magnesium and silicon make it even tougher. This film holds up in mildly acidic air common in cities. It keeps mechanical strength and electrical performance steady over time.
Engineering Design Considerations for Corrosion Resistance
Surface Treatment and Finishing Techniques for AAAC 6201
The natural oxide layer already gives good protection. But extra steps can make it better. Anodizing is an electrochemical method. It thickens the oxide layer. This improves evenness and resistance to scratches. The thicker layer acts as a cushion against damage during setup or repair.A smooth surface finish matters too. It cuts down on tiny gaps where dirt, salt, or acids can build up. Less roughness means fewer spots for chemical attacks. This ensures long-lasting strength in tough air conditions.
Installation Practices That Enhance Corrosion Resistance
Good installation keeps the corrosion-resistant features of AAAC 6201 from TDDL cable intact. Use fittings that do not react, like aluminum or matching alloys. This avoids galvanic pairing with metals like copper or steel. It reduces local electrical reactions that could harm the conductor at connection points.Also, set the right tension during setup. This prevents tiny cracks in the oxide layer or alloy. Too much tension can create stress spots. These become starting points for corrosion.
Long-Term Performance Benefits of Using AAAC 6201 in Harsh Conditions
Reduced Maintenance Requirements Over Service Life
A key benefit of AAAC 6201 from TDDL cable is low maintenance for many years. The sag features and strength-to-weight ratio of AAAC beat both AAC and ACSR. These traits lead to fewer structural problems. They cut down on checks and fixes.With no steel core to rust inside or galvanic joints to watch, power companies get longer gaps between inspections. They replace or clean conductors less often. This boosts efficiency. It also lowers total costs over time.
Improved Electrical Reliability in Aggressive Environments
Electrical performance stays steady even after long exposure to harsh conditions. Contact resistance does not change. The wire section stays the same. The alloy handles heat well. It expands or shrinks little during temperature changes. This keeps joints and terminals solid.The even conductivity of the aluminum alloy stops hot spots from uneven wear. This problem often hits mixed conductors where metals degrade at different speeds.
Industry Applications Where Corrosion Resistance Is Critical
Power Transmission in Coastal Infrastructure Projects
AAAC 6201 from TDDL cable sees wide use in coastal projects. Examples include overhead lines near ports, offshore platforms, and island power grids. Its strong salt-resistance makes it perfect for sea areas. Traditional conductors fail early from heavy chloride exposure there.It fights salt damage without needing thick coatings or extra sacrificial parts. This allows reliable and affordable power networks in marine zones.
Deployment in High-Pollution Industrial Corridors
Industrial corridors sit near chemical plants, oil refineries, or metal works. They release corrosive gases into the air. Corrosion-resistant conductors are vital here for steady power supply.AAAC 6201 from TDDL cable fits these spots well. Its alloy mix and uniform build handle acid rain and dirty air. It keeps working even when pollution worsens from factory activity.
AAAC/A2 and AAAC/A3 versions offer choices. Users can pick the right grade for specific mechanical and environmental needs in these tough areas.
