Why NFC 33-226 Medium Voltage Overhead Cables Shine

Share:

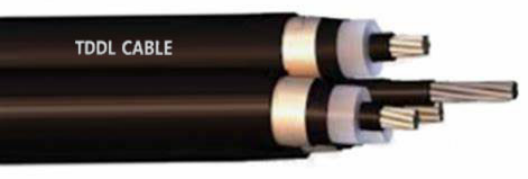

NFC 33-226 medium voltage overhead cable

Medium voltage overhead cables are really important for delivering electricity across power grids. They carry voltages from 6/10kV to 18/30kV. These cables help keep the power grid reliable. The NFC 33-226 standard focuses specifically on cables using cross-linked polyethylene (XLPE) insulation. This is for distribution networks. Let's explore why NFC 33-226 medium voltage overhead cables stand out. We'll look at their key characteristics, where they're used, and their excellent electrical performance.

What Are NFC 33-226 Medium Voltage Overhead Cables?

Key Details of NFC 33-226 Standards

NFC 33-226 is a French standard. It sets the requirements for medium voltage overhead cables using XLPE insulation. These cables are common in public power grids. They operate between 6/10kV and 18/30kV. The standard ensures reliable performance in typical overhead installations.
These cables usually have a conductor plus several insulation layers. Single-core designs are a common choice for medium voltage overhead lines. The standard describes four main setups:
  1. Basic: conductor plus insulation
  2. Enhanced: conductor with inner and outer insulation
  3. Screened: conductor with an inner screen plus insulation
  4. Fully protected: conductor with an inner screen, inner insulation, and outer insulation
    Each type suits different needs and locations.
The materials really make these cables special. Conductors are typically aluminum, copper, aluminum alloy, or steel core aluminum stranded wire. For insulation, black or gray weather-resistant polyethylene (PE) or XLPE is used. These materials are resilient against outdoor conditions.

Where These Cables Are Used

NFC 33-226 medium voltage overhead cables are common in public power networks. They’re perfect for places where underground cables aren’t practical because of terrain or cost. These cables send power efficiently over long distances. They also cut down on energy waste.
In cities, they help meet the growing need for electricity. They link substations to homes and businesses. In rural areas, they make electrification projects possible. They’re a budget-friendly way to deliver power across wide spaces. Their sturdy design keeps them working even in bad weather, making them a go-to in all kinds of places.

Boosted Electrical Performance

Great Conductivity and Efficiency

One big plus of NFC 33-226 cables is their awesome conductivity. High-quality conductors like aluminum or copper keep resistance low. This means power moves efficiently. It saves money on operating costs and makes the system more reliable.
The XLPE insulation steps things up too. It can handle higher temperatures than older materials. This reduces the risk of overheating. It also helps the cables last longer.

Less Energy Wasted

Losing energy during transmission is a headache for power systems. NFC 33-226 cables tackle this problem head-on. Their weather-resistant PE or XLPE insulation cuts down on leakage currents. It also resists wear from the environment. This means less energy is lost over time. More power gets to where it’s needed.
Their solid build also reduces electrical faults from things like moisture or physical damage. This dependability helps keep energy waste low.

Works with Today’s Power Systems

Power grids are changing to include renewable energy and smart tech. Compatibility is key. NFC 33-226 cables are designed with this in mind. Their standard setup fits right into existing systems without needing big changes.
These cables also support grid automation. They make communication between components smooth. They can handle changing power loads too. This makes them ideal for systems using wind or solar energy.

Tough and Reliable in Any Setting

Handles Weather and UV Rays

NFC 33-226 cables are built to take on all kinds of environments. This makes them super durable and reliable. Their insulation—often black or gray weather-resistant PE or XLPE—stands up to weather like a champ. They don’t get fazed by long exposure to sun, rain, snow, or extreme temperatures.
UV rays can damage overhead cables over time. The weather-resistant PE and XLPE fight this off. They stay strong and keep performing even with constant UV exposure. This helps the cables last a long time.

Long Life, Low Upkeep

These cables are built to last. Their solid construction gives them a long lifespan. Single-core cables with designs like conductor plus inner screen, inner insulation, and outer insulation can handle mechanical stress and tough conditions. This means fewer replacements or repairs. That saves money on maintenance.
High-quality conductors like aluminum, copper, and aluminum alloy add to their toughness. These materials resist corrosion and wear. This boosts the cables’ longevity. Utilities get fewer headaches and save cash over time with these dependable cables.

Stands Up to Mechanical Stress

NFC 33-226 cables hold up well under heavy mechanical stress. Steel core aluminum stranded wire conductors give them extra strength and flexibility. This makes them great for areas with strong winds or other forces.
The layered insulation helps too. Setups like conductor with an inner screen and insulation keep the cable intact under tension or bending. These features make NFC 33-226 cables a solid choice for tough spots.

Safety Perks of NFC 33-226 Cables

Fire-Resistant Insulation

Safety is huge in power distribution. NFC 33-226 cables nail it here. Their XLPE insulation has great fire-resistant qualities. It’s less likely to catch fire than older materials. This lowers the chance of fires in electrical systems.
If there’s an electrical fault or nearby fire, the insulation keeps flames from spreading. This protects nearby buildings and people. It’s especially critical in busy city areas where fire safety is a big deal.

Strong Insulation for Safety

The advanced insulation in these cables cuts down on electrical accidents. Black or gray weather-resistant PE and XLPE have excellent dielectric strength. This stops current leaks and protects against touching live wires.
The insulation also guards against risks from moisture or dirt. It keeps performance steady in different conditions. This makes power distribution networks safer.

Meets Global Safety Rules

NFC 33-226 cables follow tough international safety standards. This ensures they’re reliable and safe for many uses. The French standard sets rules for XLPE-insulated cables with voltages from 6/10kV to 18/30kV. Meeting these rules guarantees top-quality materials, design, and performance.
These cables also align with global standards like BS EN 50397-1 or NTC 5909. This makes them usable in different regions. Utilities can trust them without worrying about safety or efficiency.
Picking NFC 33-226 medium voltage overhead cables for different cases means a dependable and efficient power network. They’re ready for today’s energy needs. Their toughness in harsh conditions, strong safety features, and global standard compliance make them perfect for utilities looking for long-term fixes. Go with TDDL for cutting-edge cable tech. It delivers amazing performance while keeping safety and sustainability first.

FAQ

Q: What makes NFC 33-226 cables special?

A: They’re tough and efficient. They use high-quality conductors (like aluminum or copper) and weather-resistant insulation (PE or XLPE). Their design ensures low energy loss, great conductivity, and durability in harsh conditions.

Q: How do NFC 33-226 cables improve electrical performance?

A: They have excellent conductivity, thanks to materials like aluminum or copper. XLPE insulation handles high temperatures, reducing overheating risks. They also cut energy loss during transmission, making them cost-effective.

Q: Can NFC 33-226 cables handle tough weather?

A: Their PE or XLPE insulation resists rain, snow, extreme temperatures, and UV rays. This keeps them performing well and lasting longer, even in harsh environments.
