May 02, 2025
AAAC vs. ACSR: Exploring Performance and Material Differences
.png)
Material Composition and Structural Differences
Core Materials in AAAC Conductor vs. ACSR
AAAC, or All Aluminum Alloy Conductor, uses a tough aluminum-magnesium-silicon blend. It’s strong but light, perfect for sending power over long distances. The whole conductor is made of this alloy. This keeps its properties steady from end to end. Meanwhile, ACSR, or Aluminum Conductor Steel Reinforced, has aluminum wires wrapped tightly around a steel core coated with zinc. That steel core makes ACSR tougher, so it can handle more pulling force.AAAC skips the steel core entirely. This keeps it lighter than ACSR. It also avoids rust problems tied to steel. Still, it’s plenty strong for overhead power lines.
Why AAAC Doesn’t Use a Steel Core
AAAC doesn’t need steel because its alloy is already super strong. This cuts the conductor’s weight a lot. It still holds up well for all kinds of uses. Plus, skipping steel means no rust worries, which can plague ACSR in humid or coastal spots.AAAC fights off corrosion better than ACSR. It’s a great pick for harsh places. For example, near the ocean, salty air can eat away at steel-reinforced conductors. AAAC stays solid and lasts longer. Its lightness also makes setup easier and puts less stress on poles or towers.
Electrical Performance Comparison
How Much Current AAAC Can Carry
AAAC can handle more current than ACSR for the same size. That’s because its material is all the same, so electricity flows evenly. In ACSR, the steel core doesn’t carry any current. But every strand in AAAC does.This lower resistance means less energy gets wasted. It’s awesome for situations where you need to move a lot of power efficiently. AAAC helps systems run better and saves energy.
Energy Efficiency: AAAC vs. ACSR for Long-Distance Power Lines
When sending power far, efficiency matters a ton. AAAC beats ACSR by cutting energy losses by around 15%. This saves money on operating costs. It also makes power grids more eco-friendly.AAAC’s steady conductivity keeps performance solid over long stretches. It’s ideal for modern grids that want to waste less energy. Plus, being lighter, it sags less when loaded up. That boosts efficiency even more.
Mechanical Strength and Environmental Adaptability
AAAC’s Strength and Wind Resistance
ACSR leans on its steel core for toughness. AAAC gets its strength from its aluminum-magnesium-silicon alloy. It’s got a great strength-to-weight balance. This means it can take on heavy loads while staying light. AAAC has lower strength than ACSR but offers better corrosion resistance and requires fewer poles and towers. Its lightweight nature provides a significant advantage, particularly in areas with minimal wind and ice.For long power lines, AAAC’s strength and light design shine. It keeps tension steady over long distances. No excessive drooping here. This makes power delivery safe and reliable.
Corrosion Resistance in Tough Environments
AAAC’s all-aluminum alloy laughs off corrosion. ACSR’s zinc-coated steel core? Not so much. It can rust over time, especially near saltwater or in polluted areas. AAAC doesn’t have that problem.This makes AAAC a champ in coastal or humid places. It avoids rust issues, so it lasts longer. It also needs less upkeep than ACSR.
Cost-Benefit Analysis for Power Grid Projects
Upfront Costs vs. Long-Term Savings with AAAC
AAAC can have a higher price tag than ACSR at the start. But its benefits make it worth it. Its strong aluminum-magnesium-silicon alloy lasts long and cuts energy waste. This saves a lot of money over the years.AAAC’s efficiency lowers costs. It reduces power losses by about 15% compared to ACSR. That means smaller bills for utilities and greener energy use. For example, it can save 20-30 yuan per square meter per kilometer each year.
Being light also helps. It makes transport and installation cheaper. Without a steel core, it’s easier on support structures. This extends their life and cuts maintenance costs. AAAC is a budget-friendly option for power grids.
Why AAAC Means Less Maintenance Hassle
AAAC barely needs upkeep. Unlike ACSR, which has a steel core that can rust, AAAC’s alloy fights off corrosion. This makes it perfect for coastal or humid areas where steel conductors wear out fast.Its solid design works well in all sorts of conditions. It avoids breakdowns that can stop power flow. For example, in salty or polluted spots, ACSR needs constant checks and fixes because of rust. AAAC? It keeps going strong with no fuss.
AAAC eliminates the risk of galvanic corrosion associated with bimetallic conductors, offering excellent corrosion resistance and enhanced durability. This cuts maintenance even more. Utilities save time and money while keeping the grid steady and reliable.
Introducing TDDL’s Bare Conductor Solutions
.png)

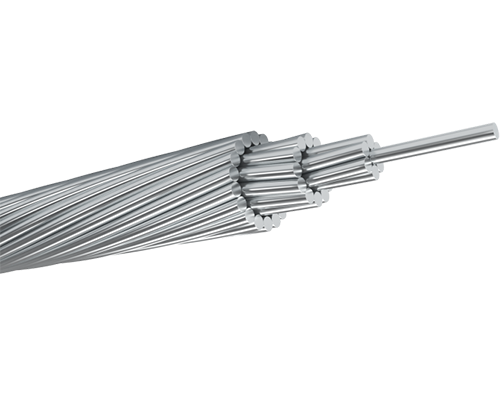

What TDDL’s Bare Conductors Offer
TDDL has a big lineup of bare conductors for all kinds of power needs. Their AAAC products, made from strong aluminum-magnesium-silicon alloy, are super efficient. They’re built with careful layering techniques for top-notch quality and strength.Here’s what stands out:
- Corrosion Resistance: Great for coastal or industrial zones.
- Strong but Light: Easy to install and gentle on supports.
- Energy-Saving: Less resistance means less power wasted.
Why Pick TDDL for Conductors?
TDDL is a go-to name in power transmission. They’re all about new ideas and quality. Their lineup includes advanced options like AAAC (6201) and AACSR (Aluminum Alloy Conductor Steel Reinforced). These fit all sorts of needs.With TDDL, you get:
- Top Tech: They use cutting-edge methods to make conductors for today’s demands.
- Global Standards: Their products meet rules like BS EN 50182 and GB/T 1179.
- Expert Help: TDDL supports you from picking the right conductor to setting it up.
