Apr 25, 2025

How to Choose All-Terrain Aluminium Cables for Underground?

The Role of TR-XLPE in Cable Insulation

The insulation material used in underground cables is critical to their performance and durability. Cross-linked polyethylene (XLPE) is widely recognized for its excellent electrical and mechanical properties. When enhanced with tree-retardant properties, TR-XLPE becomes an even more robust choice for insulation. This material minimizes the risk of water treeing, a phenomenon that can lead to insulation failure over time. Medium voltage cables often use XLPE insulation due to its low dielectric loss, high insulation resistance, and ability to withstand thermal stress. These features make TR-XLPE particularly suitable for underground applications, where environmental conditions can be harsh.

Understanding the 25kV Voltage Rating

The voltage rating of a cable plays a role in deciding its compatibility with certain uses and settings. The 25kV voltage rating signifies that the cable is designed to manage levels of voltage effectively making it well suited for distribution networks and various industrial purposes. These cables are commonly used in places like transformer stations, power plants, and other facilities where dependable medium voltage power transmission is needed.This rating guarantees that the cable can transmit electricity efficiently with minimal energy loss and without the danger of insulation failure.

Significance of Cable Size: 400mm²

The size of a cables conductor plays a role in how much current it can carry effectively and efficiently while reducing energy losses caused by resistance issues; for instance, a 400mm² conductor size offers sufficient capacity to transmit significant electrical loads with minimal losses in power output. With conductor sizes like this one being more suitable for long distance power transmission and high-demand scenarios, the selection of such dimensions highlights the priority placed on maximizing performance and safety in underground cable networks.

Material and Outer Sheath Considerations

Benefits of Aluminium as a Conductor Material

Aluminum is commonly used as an option for conductors in underground cables because of its cost effectiveness and performance efficiency balance compared to copper which has higher conductivity but is heavier and costlier; thus making aluminum a more budget friendly yet functional choice for various applications needing durable and reliable circular compacted (class 2) conductors that are also resistant to corrosion, for underground installations.

The Importance of Blue HDPE Sheathing in Underground Cables

The outer covering acts as a barrier against outside elements such as weather conditions and other environmental factors. High density polyethylene (HDPE) outer coverings have advantages because of their strong resistance to UV rays, wear and tear and chemicals. Using a color code often indicates specific uses or adherence to local regulations. HDPE covers offer safeguarding against moisture seepage, which is essential for preserving the quality of cables buried underground. This characteristic guarantees that the cables will continue to operate throughout their projected lifespan.

Factors Influencing Cable Selection for Underground Use

Terrain and Environmental Conditions

When choosing cables to use areas taking into account the terrain and surroundings is crucially important Factors like the type of soil moisture levels and the possibility of contact with chemicals need to be taken into consideration Some cable designs are made specifically for demanding conditions such as tunnels or cable trenches For instance cables reinforced with aluminum may be the top choice in areas, with rocky terrain where mechanical protection is a must.

Durability and Resistance to External Elements

Selecting cables involves considering their durability as a key factor in the decision making process since they need to endure external physical pressures while preserving their electrical performance intact. Opting for cables equipped with either magnetic steel tape armor or HDPE sheathing provides an added layer of safeguarding against mechanical harm. Moreover Additionally resistance to oil, grease, UV rays, and wear and tear adds another layer of assurance for dependability, over time.

Compliance with Safety Standards and Regulations

Ensuring that underground cables meet standards like IEC 60502–2 is essential in the selection process, as it dictates key factors such as voltage ratings and insulation materials quality along with construction standards to ensure safety and compatibility with current infrastructure setups is maintained meticulously by manufacturers such as TDDL.

If you're in need of notch underground aluminum cables featuring TR XLPE insulation and blue HDPE sheathing that meet global standards for various uses. TDDL is the go to choice for reliable products you can count on! For details, about their range of offerings check out TDDL official website.

Installation and Maintenance Guidelines for Underground Aluminium Cables

Proper Installation Techniques for Longevity

The process of installing aluminum cables like the TR XLPE 25KV 400MM² cable with a blue HDPE sheath is meticulous and has a significant impact on their performance and longevity. Select the type of cable for the specific application to ensure proper installation. These medium voltage cables are specifically designed for distribution networks. Can be laid in various locations, such as directly on the ground or in cable ducts. Indoors or outdoors. The conductor material typically consists of durable aluminum class 2 circular compacted conductors that provide reliable performance.

Prior to setting up the system's infrastructure, ensure an evaluation of the location and surroundings is conducted. Factors such as soil structure, moisture content, and possible contact with substances should be examined to decide if extra safety precautions are necessary. For example, areas with surfaces might require cables made of non-magnetic steel tape armor to protect against physical harm. When installing the components it is important to keep the cables aligned correctly and avoid putting much pressure or stress that could damage the insulation and protective layers.

Utilizing top notch materials such as TR XLPE insulation helps reduce issues like water treeing that could impact the cables performance in the long run positively. TR XLPE insulation boasts electrical characteristics such as minimal dielectric loss and strong insulation capabilities making it a great choice for medium voltage applications, in challenging settings.

Routine Maintenance Practices to Ensure Performance

Regular upkeep is vital to maintain the functioning of underground aluminum cables over time. Getting routine inspections done is key to spotting any indications of wear and tear on the covering.The blue HDPE casing offers defense against UV rays as well as abrasions and exposure to chemicals; however, it's important to conduct periodic checks to confirm its durability.HDPE casings are also resistant to moisture penetration, a feature for underground setups.
Thermal imaging is used to spot hotspots along the cables span to find problems, like overloading or degradation of insulation materials effectively and efficiently detect issues early on before they become major failures by checking the insulation resistance and keeping terminal connections clean and corrosion free to boost reliability even more.

The products designed by TDDL prioritize following standards, such as IEC 60502 Part 2 in their product development process to ensure that the cables are made with top-notch materials and meet strict performance requirements. Visit the TDDL website for further information about their products and services.
FAQ

FAQ

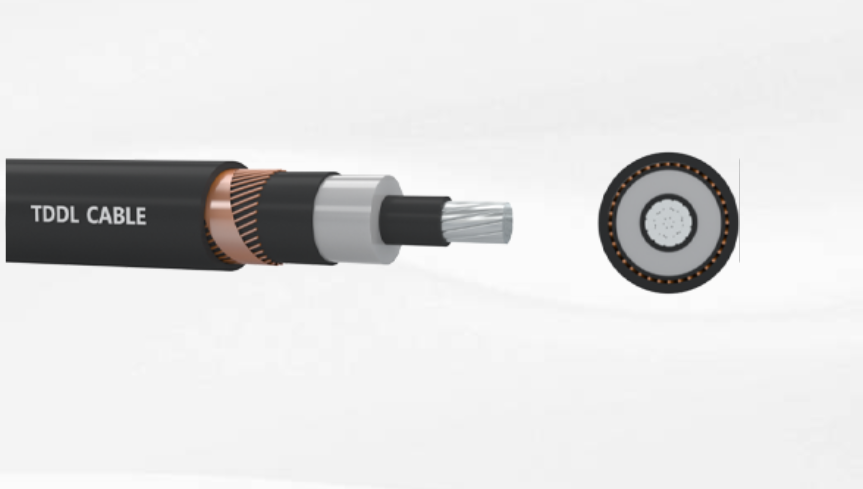

Q: What standards does the TR-XLPE 25KV 400MM² cable comply with?

A: The underground aluminum cable of TR XLPE 25KV 400MM² meets standards like the IEC 60502–2, which outline power cables with extruded insulation for voltages ranging from 1 k V (Um equals 12 k V ) to 30 k V (Um equals 36 k V ). Adherence to these standards guarantees that these cables uphold quality measures, for safety and efficiency.

Q: How does the BLUE HDPE sheath enhance cable performance?

A: The blue cover made of HDPE brings benefits that improve the performance of underground aluminum cables as a whole It offers strong protection against UV rays chemicals and wear and tear while also keeping moisture out These features help the cable stay sturdy even in tough environmental situations The use of blue color coding commonly signifies adherence, to certain regional or industry guidelines.

Q: What are the installation requirements for 400MM² underground aluminum cables?

A: To successfully install a 400 mm2 underground aluminum cable, thorough planning and precise execution are essential to guarantee top-notch performance. The procedure includes evaluating aspects, like soil composition and moisture content, all the while following bending radius recommendations during setup to prevent harm to the conductor or insulation layers.

These wires are made to be buried in the ground or placed inside tubes in the ground for protection purposes and using sand or fine soil for backfill can help prevent damage, from physical strains while in use.

Contact Us

For information on TDDL variety of products or assistance, with underground aluminum cables featuring TR XLPE insulation and blue HDPE coating layers please explore TDDL official website. Their dedicated team is focused on delivering customized solutions that align with your needs and comply with global quality regulations..
