Understanding the Design and Functionality of Overhead Insulated Cables
Understanding the Design and Functionality of Overhead Insulated Cables
What Are Overhead Insulated Cables?
What They Are and Their Key Parts

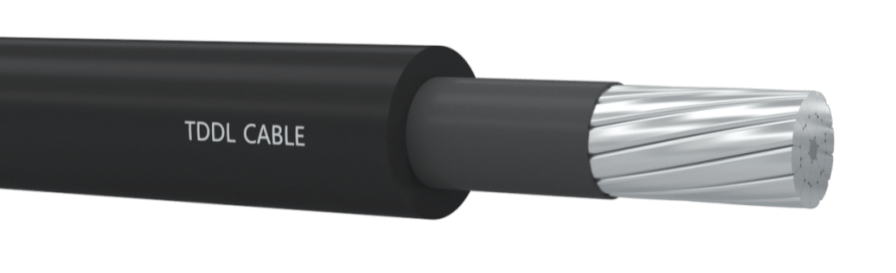

Overhead insulated cable is a special kind of electrical wire covered with a protective insulating layer. This makes it different from old-style bare wires. Bare conductors are open to rain, wind, and other elements. overhead insulated cables, though, have a shield that keeps them safer and longer-lasting. Here’s what they’re made of:- Conductor Layer: This is usually aluminum or copper etc, which are great at carrying electricity. The conductors are stranded, circular, compressed or compact.
- Insulation Layer: Usually made of thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE). These materials can effectively handle heat and prevent current leakage.
- Outer Protective Layer: This tough outer layer can resist weather damage.The outer insulation is mainly thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE) in Black or Grey with Weather or UV resistant.
How Overhead Insulated Cable Came to Be
Overhead insulated cable has come a long way. In the past, bare wires were preferred because they were cheap and simple. But they had problems. They could short-circuit, rust, or get damaged by weather. With the advancement of materials science, engineers are beginning to add insulation layers. This improved safety and performance. Now, we’ve got things like super-strong aluminum-magnesium-silicon alloys and PE or cross-linked Polyethylene for better heat resistance and toughness. This standard covers both thermoplastic and cross-linked polyethylene structures, rated for 75°C or 90°C normal service temperature. These upgrades have made overhead insulated cables a top choice for urban power lines and rough environments.What Makes Overhead Insulated Cable Special
The Materials It’s Made Of
The stuff used in overhead insulated cable is crucial for their effectiveness:- Polyethylene (PE): It’s flexible and doesn’t cost a lot, so it’s great for inner insulation.
- Cross-Linked Polyethylene (XLPE): This is tougher and handles heat better than regular PE.
Cool Design Techniques for Longevity
Modern overhead insulated cables have some excellent features to make them last longer:- Multi-Layer Insulation: Inner insulation and outer coatings can prevent moisture and UV rays.
- UV-Resistant Insulation: These can prevent the sun from decomposing materials over time.
Safety and Quality Rules
Overhead insulated cables follow strict global rules to make sure they’re safe and reliable:- IEC 60228: Conductors of insulated cables
- Specifications also include ABNT NBR 11873 for covered cables with polymeric material for overhead distribution lines in spacers for voltages 13.8 kV up to 34.5 kV.
Why Overhead Insulated Cables Are Awesome
Safer in Risky Places
Overhead insulated cables are built to keep things safe where electrical dangers are common:- They reduce short circuits by preventing wires from coming into contact with each other or random objects.
- The insulation layer reduces the chance of accidental electric shock.
- They can suppress arcs and prevent electrical faults from causing fires.
Saving Money and Helping the Power Plant
Sure, overhead insulated cables might cost more to set up than bare wires. But in the long run, they can save cash:- They’re tough, so you don’t need to fix them as often.
- They lose less energy when transferring power.
Where overhead insulated cables Are Used
This standard applies of tree wire and messenger supported spacer cable and CCX etc. These conductors are intended primarily for the distribution of electrical energy in normal conditions of overhead (aerial) installations. They are considered as overhead insulated cables so there is no rated voltage. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer and tree wire.More Reasons to Choose Overhead Insulated Cables
Extra Safety in Dangerous Spots
Overhead insulated cables are designed to make risky areas safer. Their insulation layer can prevent short circuits, occur when wires come into contact or something collides with them. This is a big deal in humid, dusty, or flammable places. The insulation also reduces shock risks if someone accidentally touches them. In addition, arc suppression keeps electrical faults from causing fires. These features make them a relieable choice for high-risk spots.Budget-Friendly and Good for the Earth
The initial cost of overhead insulated cables may be slightly higher than bare wires, but trust me, they are worth it. They have a longer lifespan and do not require frequent maintenance, which can save you cash in the long run. Besides, they are sturdy and can handle rust and sun exposure without sweating, so you won't have to replace them every few years. Oh, many of them are made from recyclable materials, so you are also doing a good deed for the earth.TDDL’s overhead insulated cables are first-class products for these demanding jobs. Built with high-quality materials and meeting standards like ICEA 121-733 and ABNT NBR 11873 etc, we are a reliable choice for global infrastructure projects.
FAQ
Q: What is the difference between overhead insulated cables and bare conductors?
A: overhead insulated cables have insulation coatings that can prevent short circuits and environmental hazards. Compared to exposed conductors that lack insulation and are more prone to contact related problems, they can achieve tighter spacing and reduce faults.Q: What materials are used in overhead insulated cables?
A: overhead insulated cables typically use insulation materials such as polyethylene and cross-linked polyethylene (XLPE). Modern design may include semiconductor layers and UV stabilized outer layers to enhance durability.
