Comparing Copper and Copper Alloy Materials for High-Performance Contact Wires

Key Material Requirements for Railway Contact Wire Applications

Railway contact wire systems that perform well need to balance good conductivity, high tensile strength, and excellent wear resistance. Good conductivity supports steady power flow along the lines for electric trains. High tensile strength maintains the geometric stability of wires under dynamic loads exerted by pantographs during high-speed operation. Wear resistance helps the wire last longer during constant rubbing. The right material must bring these features together. Temperature fluctuations, humidity and airborne dust also affect the long-term service performance of contact wires.

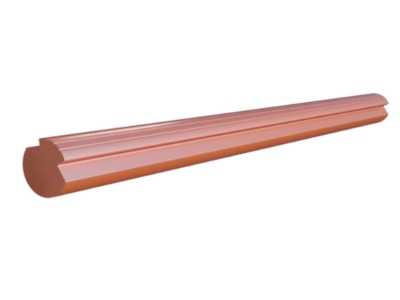

Comparing Copper and Copper Alloy Materials for High-Performance Contact Wires

Comparing Copper and Copper Alloy Materials for High-Performance Contact Wires

The Role of Contact Wires in Overhead Contact Lines

Contact wires carry the main current in overhead contact line systems. They supply steady power to electric trains through the pantograph. Steady power flow keeps traction smooth and limits voltage drops over long distances.Material selection determines the maintenance cycle of the line and the overall reliability of the entire system.Harder alloys cut down surface wear and keep current flow steady.

Performance Expectations in Contact Lines for Electric Railways

High-speed rail needs contact line materials with low resistance and steady strength when heat builds up. The thermal expansion rate must match the design so the wire does not sag or lose tension. Compatibility with TDDL cable systems lets crews use advanced alloys for better current spread and lower losses across long contact lines for electric railways. The work focuses on tight manufacturing control to keep the wire shape even when temperatures change.

How Do Copper and Copper Alloy Materials Differ in Electrical and Mechanical Properties?

Electrical Conductivity Comparison Between Copper and Copper Alloy Contact Wires

Pure copper sets the standard for electrical conductivity in railway overhead wire work. Yet it does not offer enough tensile strength for heavy or fast routes. Copper alloys with silver or tin show a bit lower conductivity but much better strength. These added elements change resistance while they improve fatigue life against the repeated loads from pantograph movement.

Mechanical Strength and Durability of Railway Copper Wire vs. Alloys

Alloy contact wires give higher tensile strength than pure copper. They handle bigger dynamic loads without bending or breaking. This matters for 107mm contact wire used on modern tracks. The extra wear resistance from the alloy mix reduces surface damage from the pantograph and cuts service needs in overhead contact line systems.

Thermal Stability and Creep Resistance Under Continuous Operation

Under the heat of constant train runs, pure copper can stretch from creep and change the tension across spans. Alloy wires keep their shape through heat cycles and hold steady contact pressure with the pantograph. This keeps the current transfer steady in every part of the electrical contact wire network.

Why Choose Copper Alloys for Modern Overhead Contact Line Systems?

Advantages of Using Copper Alloys in Railway Overhead Wire Networks

Copper alloys bring higher hardness that fights plastic change during fast train runs. They keep good contact with the pantograph even when loads shift. Better oxidation resistance limits surface damage from weather and lengthens life in railway contact wire setups. The mix of strength and conductivity suits both freight lines and high-speed passenger routes.

Cost-Efficiency and Lifecycle Considerations of Copper Alloy Contact Wires

Copper alloy wires may cost more at first than pure copper. Their longer life lowers replacement and upkeep costs.Lifecycle cost analysis verifies significant economic benefits when alloy wires are deployed in large-scale electrified railway networks equipped with TDDL cables.These wires have cut downtime from wear issues in many real settings.

Integration of TDDL cable Technology with Copper Alloy Wires

Our matching cable solutions adopt copper alloy conductors to boost current transmission efficiency and reduce resistive energy loss in complex railway overhead networks. Advanced metal work gives smooth surfaces that support steady pantograph contact at high speed. The result raises system safety and keeps voltage steady along each section of the railway overhead wire system.

How Strong Is a Contact Wire? Evaluating Structural Integrity Under Load Conditions

Tensile Strength Benchmarks for Railway Contact Wire Materials

The electrical conductivity and tensile strength of contact wires are determined by their material composition. Pure copper contact wires deliver the maximum conductivity of up to 97% IACS but possess the lowest tensile strength (≥360 MPa). Copper-tin and copper-magnesium alloys are widely adopted alternatives; despite their slightly lower conductivity, they feature outstanding tensile strength. For instance, high-strength copper-magnesium alloy contact wires achieve a minimum conductivity of 65% IACS with tensile strength no less than 530 MPa

Fatigue Resistance During Continuous Train Operations

Pantograph motion creates small stresses that build into fatigue if the material cannot handle them. Alloy wires resist these repeated loads better than pure copper because their structure slows crack growth. This helps in busy rail corridors.

Environmental Factors Affecting Strength Retention Over Time

Temperature changes speed creep in softer metals like copper. Moisture and pollutants speed corrosion at joints and clamps. Protective coatings or oxidation-resistant alloys reduce these effects and keep each electrical contact wire section reliable for years.

How Are Contact Wires Tested and Maintained in Electric Railway Systems?

Standard Testing Methods for Electrical Conductivity and Strength Verification

Lab tests check resistivity, tensile load, and stretch limits before installation. These checks follow global railway standards. Field checks after install confirm alignment, tension, and pantograph fit across all spans. Ultrasonic scans find early cracks and stop failures in service.

Maintenance Practices for Railway Overhead Wire Networks

Regular checks keep voltage steady along each track section. Data-based models spot wear zones early and avoid service breaks. Cleaning removes oxide buildup that raises resistance and keeps conductivity high over the network’s life. Messenger conductor: Stranded galvanized steel wires. This matches the support role in modern catenary systems where messenger conductors carry mechanical loads and hold the active wires in place under wind or vibration.

FAQ

Q: How strong is a contact wire used in railway applications?

A: A typical railway contact wire made from pure copper has a tensile strength ≥360 MPa. Copper alloy versions can reach 500 MPa or more. This gives better durability under the loads from ongoing train runs along an overhead contact line system.

Q: What is the difference between a copper contact wire and a copper alloy contact wire?

A: A copper contact wire gives top electrical conductivity but lower mechanical strength than alloy versions. Copper alloy wires offer moderate conductivity with better wear resistance. They fit demanding settings such as modern railway overhead wire networks.

Q: Why are copper alloys preferred for overhead contact line systems?

A: Copper alloys deliver better hardness, oxidation resistance, and fatigue life than pure copper. They allow longer service intervals and lower maintenance costs across large electrified track systems that use TDDL cable solutions.

Q: How does TDDL cable technology improve performance in railway contact lines?

A: TDDL cable uses advanced alloy materials. These raise current flow efficiency and cut energy losses over long network spans. They also keep mechanical tension steady for safe runs in high-speed rail corridors.

Q: What factors influence the longevity of electrical contact wires in electric railways?

A: Longevity depends on material type, weather exposure, mechanical stress from pantographs, and regular maintenance. These elements together decide how well each railway copper wire performs over many years in complex electrified systems.
