The Role of Electrical Load and Current Capacity

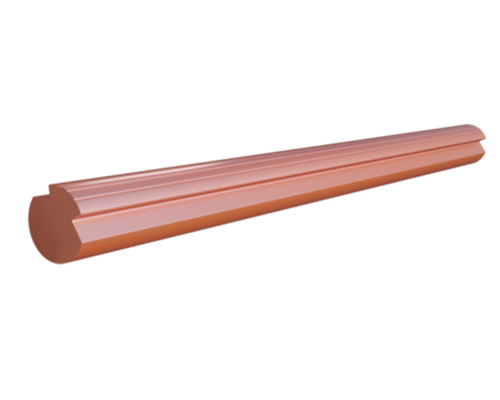

The choice of contact wire size in railway electrification primarily depends on current-carrying capacity, mechanical tension limits, and wear life requirements. Higher speeds and heavier axle loads necessitate larger cross-sections, mainly to reduce voltage drop along the feeding length and to provide sufficient wear allowance (typically 15–20% area loss before replacement). The grooved cross-sectional profile of contact wires is designed primarily for secure clamping by hangers and for providing a flat sliding surface for the pantograph, with improved heat dissipation as a secondary benefit. System voltage and AC/DC operation influence the required current level, but the minimum practical wire size is usually governed by mechanical rigidity and dynamic wave propagation speed (especially above 250 km/h), rather than by ampacity alone. In DC systems, where currents are exceptionally high, parallel aluminum feeders (circular compacted conductors) are often added to carry bulk current, while the contact wire itself remains a copper alloy section for wear resistance. This integrated conductor arrangement determines current density distribution and ensures stable performance across different railway networks.
6 Benefits of Contact Wires in Overhead Railway Systems Explained

6 Benefits of Contact Wires in Overhead Railway Systems Explained

Mechanical Strength and Tension Requirements

Mechanical stress also shapes contact wire sizes. Contact wires face constant rubbing from pantographs at high speeds. They must maintain their structural integrity and cross-sectional geometry within elastic limits under repeated dynamic loading. Tensile strength and elastic modulus govern the stable operation of contact wires. Wind, temperature shifts, and vibration affect service life and conductor sag, which in turn determine the selection of contact wire materials and cross-sections. All design calculations shall guarantee the contact wire operates within its elastic limit under extreme weather conditions.

Material Composition and Conductivity Considerations

Copper stays the main choice for railway contact wire material. It offers excellent electrical conductivity and adequate wear resistance for most railway applications.Copper alloys exhibit slightly reduced electrical conductivity yet significantly enhanced tensile strength and abrasion resistance. Different copper alloy grades are specified for railway lines with distinct mechanical load requirements and operating speed levels.

How to Interpret Contact Wire Specifications for Railway Projects

Understanding the Contact Wire Cross Section

The cross-sectional area of contact wires determines ampacity and electrical impedance. A larger cross-section reduces series resistance, which minimizes voltage drop along the feeding length and improves energy efficiency as a secondary benefit. Common railway contact wire sizes fall between 85  mm² and 150  mm². The exact size depends on voltage and service needs. Design engineers balance sufficient ampacity and minimal conductor sag, while ensuring the contact wire meets the dynamic performance demands of the target operating speed.

Reading a Contact Wire Specification Sheet Accurately

A contact wire size specification sheet provides standardized technical parameters required for system design and performance verification. Specification sheets list core technical indicators including nominal cross-section, linear mass, DC resistance, tensile strength, breaking load, elongation and maximum continuous operating temperature. Engineers select matching materials and dimensions in accordance with standards such as EN 50149 by referencing these datasheets, to guarantee universal compatibility across global railway projects.

Standardization in Overhead Contact Wire Sizes

Standardized contact wire dimensions simplify routine maintenance and enable interchangeable spare parts across railway networks. International standards define strict dimensional tolerances for overhead contact wires. This supports uniform build quality everywhere. These checks confirm safe operation.

contact wire for electrified railway

How to Choose the Right Railway Contact Wire Size for Specific Applications

Assessing System Voltage and Traction Current

The selection of contact wire cross-section begins with the system voltage (AC or DC) and the expected traction current demand.Ultimately, contact wire sizing is not determined by voltage alone, but by the interaction of electrical (ampacity, voltage drop), mechanical (tension, sag, fatigue, wave propagation), and wear-life requirements specific to each application."

Evaluating Environmental and Operational Conditions

Evaluating environmental and operational conditions is critical for overhead contact wire systems. Temperature fluctuations cause thermal expansion and contraction of the catenary suspension system (including both messenger and contact wires), which directly alters the sag and consequently shifts the mechanical tension, especially in tension-length compensation zones. In coastal or highly industrialized polluted areas, the contact wire material should prioritize corrosion resistance (e.g.,copper-magnesium or copper-silver alloys with anti-corrosion coatings), while the insulation components must resist salt fog and conductive contamination. These site-specific conditions dictate not only the selection of wear-resistant copper alloys but also the tensioning methods (e.g., constant tension vs. fixed termination) to ensure long-term dynamic current collection stability.

Balancing Cost, Performance, and Longevity in Selection Decisions

Balancing upfront cost, comprehensive performance and service lifespan is the core principle of contact wire selection. Although larger cross-sections raise initial procurement costs, they cut conductor resistance and reduce thermal power loss, delivering remarkable energy-saving benefits over decades of operation. Maintenance frequency is closely correlated with abrasion rate, which depends on material hardness (differences between Cu-Ag and Cu-Mg alloys), pantograph sliding frequency, dynamic contact pressure and arc ablation severity. Life-cycle cost analysis quantifies the trade-off between initial investment, long-term energy savings, reduced maintenance downtime and conductor replacement expenditure, providing reliable evidence for determining the optimal contact wire dimension and alloy grade for specific operating conditions.

What Are the Technical Advantages of Using TDDL cable in Modern Rail Systems?

Improved Mechanical Durability for Long-Term Reliability

TDDL Cable adopts optimized high-strength conductor structures to mitigate fatigue damage caused by long-term pantograph sliding contact and abrasion. High tensile strength maintains stable sag and tension over long line spans, enabling consistent current collection under high-speed operation.

Simplified Integration with Existing Railway Infrastructure

TDDL Cable’s products meet standard railway overhead contact wire size rules worldwide. It fits current catenary setups with no change to clamps or hangers. This cuts downtime on upgrades and keeps output steady across networks.

How Do Installation Practices Influence Contact Wire Performance?

Importance of Proper Tensioning During Installation

Accurate tension control during installation prevents uneven pantograph abrasion.Temperature compensation devices (e.g., constant tension systems) shall accommodate seasonal thermal expansion and contraction, limiting annual tension fluctuation within design tolerance ranges.

Alignment Accuracy in Overhead Systems

Precise vertical alignment ensures uniform contact pressure between pantograph carbon strips and contact wire surfaces. Poor alignment raises friction, accelerates abrasion, and adds stress to parts. It lowers overall system life.

Inspection, Maintenance, and Replacement Intervals

Routine on-site inspections detect incipient abrasion and mechanical defects to avoid catastrophic failures. Periodic tension calibration verifies that conductor tension remains within specified tolerances. This plan lengthens wire life and cuts unplanned stops.

FAQ

Q: What is the standard contact wire size used in railway electrification?

A: The standard contact wire size is primarily determined by traction current demand. For mainline heavy-haul and high-speed railways, typical sizes range from 100 mm² to 150 mm² (e.g., 120 mm² or 150 mm² are common in high-speed systems), while metro and light rail systems often adopt 85 mm² to 110 mm².

Q: How do engineers select the correct railway overhead contact wire size?

A: Conductor selection requires multi-factor balancing of ampacity, short-circuit thermal stability, tensile strength and abrasion service life, complying with standards such as EN 50149. Engineers first select a preliminary cross-section via load-based sizing charts according to traction demand, then verify tension limits, maximum span and design service life. If any indicator fails verification, the cross-section shall be adjusted and recalculated iteratively

Q: What is included in a typical contact wire size chart?

A: Typical specification datasheets cover cross-sectional area, outer diameter, linear mass, DC resistance, tensile strength, breaking load, elastic modulus and linear thermal expansion coefficient.

Q: Why is the contact wire cross section important in design?

A: The cross-sectional area of a contact wire directly determines its DC resistance, electrical power loss, tensile strength, breaking load, wear allowance and bending stiffness. Engineers select matching materials and dimensions based on specific project operational requirements.

Q: Can TDDL cable’s contact wires replace existing railway contact wires?

A: Yes. All TDDL contact wires fully comply with EN 50149 and other international standards, and can be matched with standard clamps and suspension hardware without any structural modification.
