Earthing Wire Size Guide: How to Choose the Right Grounding Conductor Size

Share:
Choosing the correct earthing wire size helps keep electrical systems safe. A conductor that is too small can heat up before a protective device clears a fault. A conductor that is too large raises cost without need. The right choice must meet rules for electrical performance, heat, strength, environment, and local codes.
An earthing wire normally carries little or no current. During an insulation failure, it must give a low-impedance path and help cut the supply fast. This guide shows how to pick a suitable grounding conductor size for different protective roles.

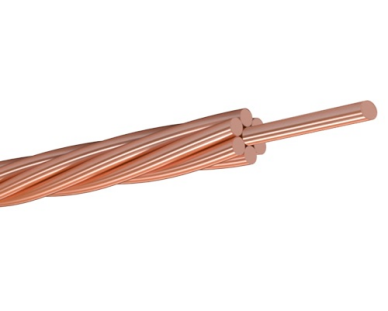

Earthing Wire Size Guide How to Choose the Right Grounding Conductor Size

What Does an Earthing Wire Do During a Fault?

An earthing conductor links exposed metal parts to the protective-earthing system. If a live wire touches a metal enclosure, the grounding wire carries fault current back to the source. The protective device can then operate and lower touch voltage to a safe level.
Do not treat a protective conductor as a neutral. A neutral carries normal load current. Earthing conductors work only during faults. The needed earth conductor size comes from fault duty and the conductor’s job, not from the equipment’s running current.

Which Electrical Factors Control Safe Sizing?

How does fault current affect grounding conductor size?

Higher fault current and longer clearing time raise heat in the conductor. A safe grounding conductor size must match both the current level and the time. Use real fault data and the device’s operating curve instead of a guessed trip time.
A high-impedance return path can slow the device. A larger conductor area lowers resistance, yet the full earth-fault loop still needs checking.

Why do installation conditions change ground wire size?

The minimum ground wire size may need to grow because of mechanical damage, corrosion, vibration, direct burial, temperature, or terminal limits. Soil moisture and pH affect buried conductors. Salt spray and chemicals speed corrosion. Outdoor insulated conductors need good resistance to sunlight and moisture.
Connections must stay continuous and tight. Avoid extra loops. Use matching connectors. Keep test points easy to reach.

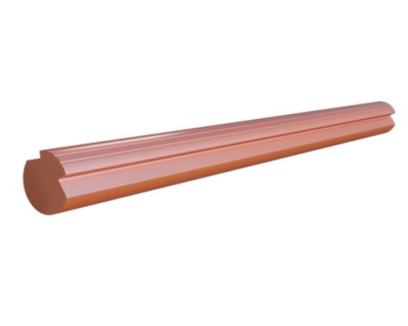

earthing wire size

How Is Earthing Conductor Size Calculated?

What is the IEC-based earthing conductor size method?

For a protective conductor made from the same material as the phase conductor, a common IEC-based method works as follows. When the phase conductor is 16 mm² or smaller, keep the same cross-sectional area. When the phase conductor is larger than 16 mm² but no larger than 35 mm², use 16 mm². When the phase conductor exceeds 35 mm², use at least half its area.
This is not a universal table. Separate conductors, PEN conductors, different materials, harmonics, and mechanical minimums need extra checks. IEC 60364-5-54 also allows the formula S = √(I²t) / k. Here S is area, I is fault current, t is clearing time, and k reflects material and temperature limits. Round up to a standard size.

How should earthing wire gauge be selected under NEC rules?

In North American practice, earthing wire gauge uses AWG or kcmil. Equipment grounding conductors and grounding electrode conductors serve different roles and follow different NEC rules. The equipment grounding wire size usually follows the upstream overcurrent device rating. A grounding electrode conductor usually follows the service or derived-system conductor size. Check the locally adopted NEC edition.
AWG numbers run in reverse: a smaller number means a larger conductor. Rough comparisons are 10 AWG at 5.26 mm², 8 AWG at 8.37 mm², 6 AWG at 13.3 mm², and 4 AWG at 21.2 mm². Never round down when converting to mm².

Grounding Wire Classification by Requirement

Which conductors protect equipment and bond metal parts?

Equipment protective conductors link exposed metal enclosures to the protective-earth system. They give a low-impedance path for fault current. Protective bonding conductors equalize potential between conductive services, structural metalwork, and other listed parts. Both improve shock protection, yet their minimum sizes and connection points can differ.

Which earth conductors connect electrodes or protect overhead lines?

Earth conductors link the earthing terminal to an electrode or grid. Overhead earth wires intercept lightning and carry it into tower grounding systems. Common choices include galvanized steel strand. Aluminum-clad steel offers high strength, corrosion resistance, and good electrical performance.
This grounding wire classification by requirement stops a frequent error. People sometimes apply one sizing rule to every conductor labeled “ground” or “earth.” First confirm the function, then pick the code rule, material, construction, and size.

Which Materials and Constructions Perform Best?

How does earthing wire material affect performance?

Earthing wire material changes conductivity, resistance, strength, corrosion behavior, and termination needs. Copper offers electrical conductivity second only to silver. It also resists corrosion well and is easy to form and weld. These traits make copper grounding wire a reliable choice for many fixed and industrial jobs.
Aluminum is light and low in cost, yet it usually needs a larger area for the same electrical performance. Galvanized steel gives mechanical strength. Aluminum-clad steel combines a steel core’s strength with an aluminum layer that resists corrosion. Material changes must rest on calculated performance and matching connectors, not on diameter alone.

When should you select bare copper grounding cable or insulated earthing cable?

A bare copper grounding cable gives high conductivity, easy visual checks, and flexible routing in grids and bonding networks where bare conductors are allowed. Concentric stranded construction improves flexibility and spreads mechanical stress. A solid conductor can suit simple fixed routes.
An insulated earthing cable, marked as local rules require, aids recognition and adds protection. It does not remove terminal corrosion risk. The final earthing cable size and construction must fit the route, burial conditions, flexibility needs, mechanical protection, connectors, and the applicable standard.
At TDDL cable, we review conductor material, structure, electrical performance, and project standards together. Our products should be chosen against the customer’s confirmed fault duty and installation conditions rather than by a generic size suggestion alone.

FAQ

Q: What earthing wire size should I use?

A: The correct earthing wire size depends on conductor function, phase-conductor size, material, prospective fault current, clearing time, mechanical protection, and local code. Use the applicable table or calculation and round up to the next compliant standard size.

Q: Is grounding wire size the same as phase wire size?

A: Not always. Some IEC-based simplified rules keep the same area when the phase conductor is 16 mm² or smaller. Larger phase conductors may allow a reduced protective conductor. NEC-based sizing may instead follow the overcurrent protective device and conductor function.

Q: How do I convert earthing wire gauge from AWG to mm²?

A: Use a recognized conversion table, then choose a standard metric size that meets or exceeds the required area. Because conversions are approximate, do not round down. Confirm the conductor material and terminal capacity as well.

Q: Can bare copper grounding cable be buried directly?

A: It may be directly buried where the applicable rules and soil conditions permit. Before selecting this wire for grounding, check soil chemistry, corrosion risk, mechanical damage, joint compatibility, electrode material, and inspection needs.

Q: Does a larger grounding conductor size always provide better protection?

A: A larger conductor can lower resistance and raise thermal capacity. Size alone cannot fix poor joints, an unsuitable route, incompatible metals, or incorrect protective-device coordination. The safest choice is the largest minimum that meets all electrical and mechanical checks.
