How to Choose the Right Earthing Wire for Different Electrical Applications

Choosing an earthing wire is a safety decision. The conductor must carry prospective fault current. It must remain mechanically protected. It must also comply with the installation standard.
An earthing conductor links exposed metalwork to the grounding electrode or protective network. A fault clears quickly instead of energizing the enclosure. This guide explains selection factors,
earthing wire material, sizing, and practical use in residential, industrial, and renewable-energy systems.

What should an earthing wire do in an electrical system?

The wire provides a low-impedance path for fault and leakage current. In normal operation, it carries no load current. During a fault, it must withstand thermal and electromechanical stress until the protective device disconnects the circuit. Keep the route short. Avoid sharp bends. Bond all accessible conductive parts. In humid, corrosive, or outdoor locations, protection against moisture and chemical attack is as important as ampacity.

How do grounding conductor requirements affect wire selection?

Start with the system voltage, prospective short-circuit current, disconnection time, and earthing arrangement such as TN, TT, or IT. Grounding conductor requirements include minimum size, continuity, fault-loop impedance, and protection of the conductor against physical damage. Refer to local requirements and to the equipment manufacturer’s instructions. Where calculations conflict with minimum table values, use the larger size to comply with the requirements.

Which earthing wire material fits the application?

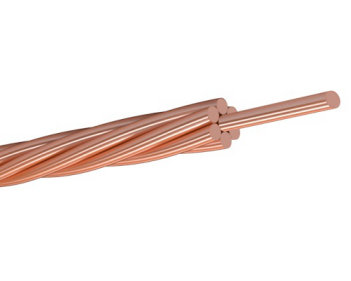

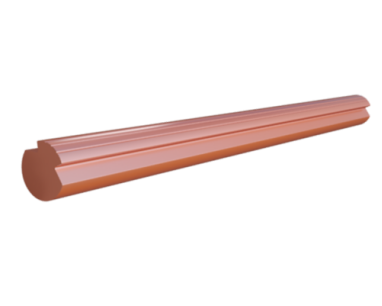

Copper is often chosen for its high conductivity, flexibility, and reliable terminations. Tinned copper adds corrosion resistance for marine, coastal, and humid sites. Aluminium can reduce weight and cost on large runs. It needs compatible lugs, joint compound, and isolation from dissimilar metals. Bare copper is suitable for protected electrodes and bonding. Green/yellow insulated cable is easier to identify in distribution boards. Our product range can be configured with insulation, stranding, and jacket options for the environment.

How should you size the best earthing wire?

Use the adiabatic method when fault data are available. Select a conductor whose cross-section withstands I²t energy for the clearing time. Apply the material constant and permitted temperature. If those inputs are unknown, apply the governing standard’s protective-conductor table. Coordinate the size with the phase conductor and upstream protective device. Check voltage drop only as a bonding-network concern. Fault-loop impedance and mechanical robustness are usually decisive.
Also review installation length, ambient temperature, grouping, and enclosure entry points. A conductor that is electrically adequate can still fail if its bend radius is exceeded or if a gland cuts into the insulation. Flexible fine-stranded constructions simplify cabinet doors and moving machinery. Rigid stranded constructions suit fixed trays and buried bonds. Record the calculation basis, conductor marking, and termination type on the project schedule. Future maintenance teams can verify that replacements are equivalent.

Which applications need different earthing wire designs?

Residential and commercial distribution

Use insulated copper protective conductors in branch circuits, switchboards, and equipment-bonding jumpers. Maintain color identification, secure terminations, and separation from sharp edges. For rooftop equipment, route the conductor with the shortest practical path. Protect it from UV and impact.

Industrial machines and motor systems

Vibration and high fault levels favor finely stranded, flexible copper with crimped lugs. Bond motor frames, cable trays, doors, and variable-speed-drive cabinets. EMC-sensitive installations may require a wide, low-inductance braid or parallel bonding conductor in addition to the protective earthing conductor.

Solar, battery, and outdoor equipment

Select UV-stable insulation, tinned strands where corrosion is expected, and hardware rated for the enclosure material. Bond module frames, inverter cases, battery racks, and metallic conduits. Provide strain relief and allow thermal movement on long outdoor runs.

What standards guide a protective earthing conductor?

Follow the electrical code adopted at the project location and the equipment standard governing the assembly. Common requirements address conductor identification, minimum size, continuity testing, accessible bonding points, and disconnection performance. Document test results for continuity, earth resistance, and loop impedance. Inspect joints after commissioning. At TD Cable, we support specification reviews so the selected construction matches the required standard and installation method.
For procurement, ask for conductor class, nominal area, insulation temperature rating, voltage rating, flame performance, and test certificates. Confirm that the cable marking remains legible after installation. Make sure accessories are listed for the same conductor material. These details reduce substitution risk on multi-contractor projects. They also make inspection faster.
Keep a spare-length allowance for terminations. Label both ends. Photograph concealed bonds before walls or trenches are closed.

How can you verify an earthing wire installation?

Before energizing, confirm the route is continuous, terminations are torqued, and no paint or oxidation interrupts metal-to-metal contact. Measure continuity with a low-resistance tester. Then test earth resistance or loop impedance using the approved method. Recheck after modifications, lightning events, flooding, or major maintenance. For product details and cable construction references, visit TD Cable earthing wire resources and cable specification guidance.

FAQ

Q: What is the best wire for grounding in a home?

A: For indoor work, the best wire for earth is usually an insulated copper protective conductor of suitable size for the circuit in question, as detailed in local regulations. For higher fault currents, longer runs, or especially harsh environments, larger conductors or special versions with corrosion protection may be required.

Q: Which wire is best for earthing in wet areas?

A: For areas exposed to weather, wet or near the coast, a good quality tinned copper earthing wire with durable insulation that resists UV and moisture is recommended. Lug and gland compatibility must be verified.

Q: Can aluminium be used as an earthing wire?

A: Is aluminum allowed? Yes, if the governing code permits and a suitable aluminum termination system is used with rated aluminum joint compound, and the aluminum is separated from copper to prevent galvanic corrosion.

Q: How do I identify the earthing conductor?

A: Use the identification colors required by the local code, commonly green/yellow for insulated protective conductors. Never rely on color alone. Trace and test continuity.

Q: How do I choose the best earthing wire for an industrial panel?

A: Determine the required fault duty, verify the size of the grounding conductor, consider vibration and EMC, and select a flexible, mechanically robust design with suitable connectors and proven lug torques.
