High-Voltage Cable Testing and Installation Guide: How to Test, Connect, and Route High Voltage Cables Safely
High Voltage Cable Testing and Installation Essentials
What Are the Key Safety Considerations in High Voltage Cable Testing?
High-voltage cable testing calls for a solid grasp of electrical safety rules. Safety steps must come first. This keeps all staff aware of risks. Good insulation, grounding, and proper clearance distances help stop electrical mishaps. Staff must use approved gear such as dielectric gloves, insulated boots, and face shields. Every test follows voltage rules set by standards like IEC 60502-2 for levels from 1kV to 30kV.In field work, a safe setup matters most. Mark and block off test zones to keep others out. Check that the test gear is calibrated before use. Make sure the circuit is off and clear of power before linking tools. This avoids shock from leftover charge.
The Role of TDDL cable in High Voltage Systems

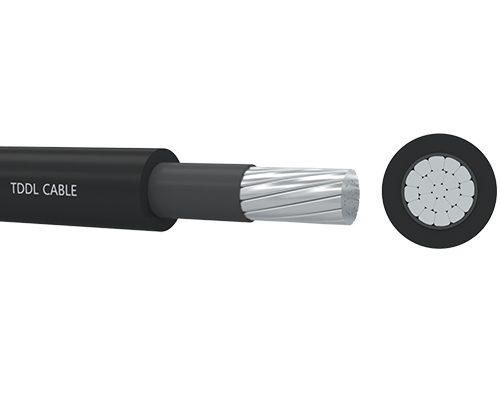

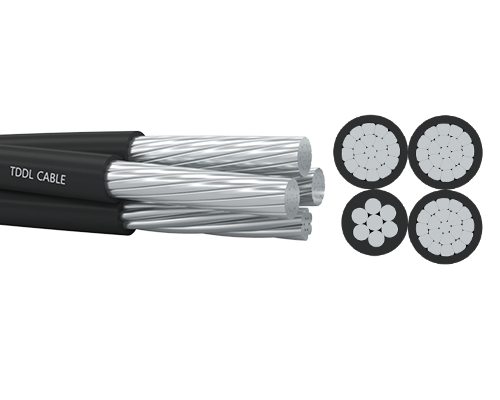

As a maker of power cables, we build TDDL cable for high voltage jobs that need steady performance and long life. These cables have strong insulation layers. The layers hold up under heat and electrical load. TDDL cable carries current well even in tough spots like tunnels, trenches, or stations.Medium-voltage cables fit distribution networks. They work for indoor runs, tunnels, trenches, shafts, or direct burial. The cable handles outside forces and some pull. It sees wide use in stations, power plants, and factories. Careful handling and storage of TDDL cable stops damage or water entry during transport.
How to Test High Voltage Cables Effectively
Which Methods Are Commonly Used to Test High Voltage Cables?
Good high-voltage cable testing uses several checks. These checks look at the insulation condition and find hidden faults.- Dielectric Withstand Test: This applies extra voltage to confirm the insulation can withstand stress without failing.
- Partial Discharge Testing: It spots small sparks inside the insulation. These sparks point to voids or flaws that may cause later trouble.
- Insulation Resistance Measurement: It checks resistance from conductor to earth with a megohmmeter. Low readings often mean moisture or dirt.
How to Test High Voltage Cables Safely in the Field?
Field tests need strict safety steps. First, confirm the circuit is fully off. Use shielded tools rated for the cable voltage or higher. Raise test voltage in steps while watching leakage current. A sudden rise may show weak insulation.Staff keep a safe distance at all times. They use radios or hand signals instead of touching during active tests. Record all readings for later review.
High Voltage Cable Connection Procedures and Best Practices
How to Connect High Voltage Cables Without Compromising Integrity?
Good connections support long-term system performance. Clean conductor ends with proper solvents to remove oxide or dirt. Dirt raises contact resistance. Pick connectors that match TDDL cable specs. Wrong sizes cause heat or arcs.Follow maker torque values with calibrated tools. Too much torque bends conductors. Too few leaves lead to loose joints and poor flow.
Ensuring Reliable Joints in High Voltage Cable Connections
Preparation of Cable Ends Before Connection
Strip insulation with care. Avoid nicks on strands. Even small cuts can start partial discharge under load. Check that the conductor size fits the terminal before assembly.Applying Insulation and Sealing Layers After Connection
After the joint is made, add heat-shrink or cold-shrink tubing. This blocks moisture. Even pressure leaves no air pockets that could cause corona later.
Routing and Installation of High Voltage Cables in Complex Environments
Can Low Voltage and High Voltage Cables Run Together Safely?
Low-voltage control wires and high-voltage power lines need physical separation. Separation cuts electromagnetic interference. Use separate conduits or trays for high voltage runs like TDDL cable.Follow local codes if parallel runs are needed. Extra shielding or metal barriers may apply.
How to Route High Voltage Cables for Optimal Performance?
Planning the Cable Pathway Before Installation
Plan routes to limit stress. Skip sharp bends that strain TDDL cable insulation. Keep cables away from heat sources or chemical areas that could harm the outer sheath.TDDL cable offers solid electrical and mechanical traits. It shows low dielectric loss and high insulation resistance. Careful routing protects these traits over time.
Securing and Supporting Cables During Installation
Use non-conductive clamps made for high voltage work. These stop induced currents in supports. Label every route for easy access during checks.Maintenance, Monitoring, and Troubleshooting of High Voltage Cable Systems
How Often Should High Voltage Cables Be Tested After Installation?
Test frequency depends on load cycles, temperature swings, and site conditions. Regular insulation resistance checks catch early wear in TDDL cable before failure.Periodic checks such as VLF tests track aging trends. They keep systems in line with IEC 60502-2 rules across years of use.
