Low-Voltage Cable Testing: Common Faults, Causes & Troubleshooting Guide

Share:
Low-voltage cable testing helps prevent downtime, electrical shock, fire, and repeat equipment tripping. This guide explains how to
identify low-voltage cable faults and how to select appropriate testing methods. You can locate the damaged section and document reliable low-voltage cable repair procedures.

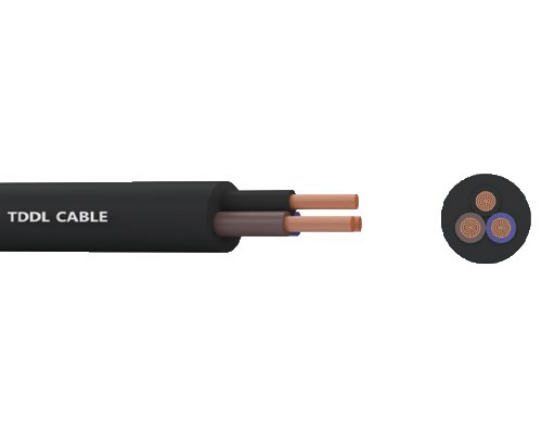

Low Voltage Cable Testing Common Faults, Causes & Troubleshooting Guide

What Common Low-voltage Cable Faults Should You Check?

Low-voltage cable faults may manifest as false tripping or voltage drops. Equipment instability and terminal overheating are also signs. Complete power outage is also an indication. Before using testing equipment, isolate the circuit and confirm that it is de-energized. Inspect all accessible wiring. The most common low-voltage cable fault is insulation damage. Open circuits or high-resistance conductors are also frequent. Phase-to-phase or phase-to-ground short circuits may also occur. In addition, loose connections, water ingress, and incorrect connections are also common faults.

Low-voltage Cable Insulation Damage And Leakage

Cutting, crushing, abrasion, aging, chemical corrosion, or moisture can all reduce insulation resistance. Damaged low-voltage cables may still operate under light loads, but may leak current or trigger protective devices when temperature and humidity rise. PVC is widely used in low-voltage cables, while XLPE is used in applications requiring better thermal insulation. Both materials can fail if installation stress exceeds their design values.

Low-voltage Cable Short Circuits, Open Circuits, and High-Resistance Faults

A low-voltage cable short circuit creates an unexpected path between the conductor and the ground wire. An open circuit is caused by a broken low-voltage conductor, a faulty joint, or a disconnected terminal. High-resistance faults are more insidious. Loose terminals, corrosion, damaged strands, or undersized low-voltage conductors can generate heat, causing a voltage drop, but will not trip immediately.

What Are the Main Causes of Low-Voltage Cable Failures?

Low-voltage cable failures are usually related to electrical stress, but can also be caused by a combination of mechanical, thermal, and environmental stresses. Installation damage is common, such as excessive tensile force, insufficient bending radius, or cuts to the sheath at cable joints. Manufacturing quality is also crucial. Strict control must be exercised at every stage, including conductor preparation, stranding, insulation extrusion, cooling, spark testing, sheath coating, and final inspection. These controls must be completed before the cable enters the next stage of manufacturing.

Why Do Low-Voltage Cables Overheat?

Overheating of low-voltage cables can be caused by overload or poor ventilation. Additionally, parallel circuits, undersized conductors, harmonic currents, or high-resistance terminals can also lead to overheating. Since the cross-sectional area of the conductor determines its resistance and current-carrying capacity, it is essential to verify the conductor specifications. Installation conditions should be checked, and overheating should not be simply attributed to an insulation problem.

How Do Moisture, Chemicals, and Mechanical Stress Cause Cable Failure?

Water can seep into damaged sheaths and contaminated joints. Oil, solvents, sunlight, vibration, impact, and repeated bending can all cause materials to crack or soften. For armoured low-voltage power cables, the outer sheath should be inspected, along with the continuity of the armor, joints, and connections. The armor cannot compensate for damage to the insulation.

How to Test Low-Voltage Cables Safely and Correctly?

Complete low-voltage cable testing begins with documentation. This documentation includes cable type, rated voltage, length, conductor dimensions, insulation material, wiring path, load history, and previous test results. For 1 kV low-voltage cables, confirm the applicable project standards. Before selecting the test voltage, check the equipment manufacturer's limitations. Disconnect sensitive electronic equipment. Insulate both ends of the cable. Release any stored energy. Never use a megohmmeter to test a live circuit.

Low-Voltage Cable Continuity Testing

Low-voltage cable continuity testing is used to confirm the integrity of each conductor and verify the correctness of conductor markings. First, zero the test leads. Measure the end-to-end resistance. Compare the resistance values ​​of the same type of conductor. Check the phase sequence markings. Abnormally high or unstable readings indicate broken strands in the conductor. This may indicate poor jointing, corrosion, or incorrect connections. A continuity test alone cannot prove the insulation is intact.

Low-Voltage Cable Insulation Resistance Testing and Megohmmeter Testing

Low-voltage cable insulation resistance testing is used to measure leakage resistance. Leakage resistance refers to the resistance between conductors and between a conductor and ground. When performing megohmmeter testing on low-voltage cables, an approved insulation tester should be used. Record the applied voltage, test duration, temperature, humidity, and final reading. Then discharge the cable. Trend comparisons are more meaningful than individual values. Cable length, material, temperature, and connected equipment all affect test results.

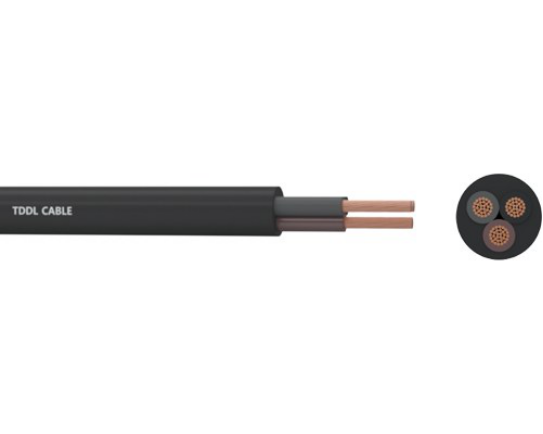

low voltage cable

How to locate the problem in low-voltage cable fault detection?

Low-voltage cable fault detection should narrow down the circuit area before proceeding with more in-depth location work. Segment the line at easily accessible joints. Test each segment. Compare the conductors. A digital multimeter can identify open circuits, short circuits, and voltage drops. An insulation resistance tester can detect leaks. A clamp meter helps detect load imbalances. A thermal imager can find hot joints. A time-domain reflectometer can estimate the impedance change distance applicable to low-voltage cables.
Interpret the test results comprehensively. Low insulation resistance but normal conductivity indicates insulation damage or moisture. High end-to-end resistance but intact insulation indicates conductor or termination damage. Hot connections and load-related voltage drops indicate resistance at the joint. This is not a buried insulation fault.

What Is The Optimal Order For Troubleshooting Low-Voltage Cable Faults?

A brief overview of the low-voltage cable fault diagnosis process: First, observe the fault symptoms (tripping, voltage drop, overheating, or power outage), check the operating status of protection devices, current load, and recent maintenance records. Then, isolate the power supply side line and label it. Safely disconnect sensitive equipment first, then use a calibrated voltage detector to confirm no power and ground the line. Next, conduct a visual inspection along the cable path, focusing on sheath damage, signs of overheating, moisture, and poor terminal connections. Perform continuity/conductor resistance tests and insulation resistance tests (500V or 1000V DC) in sequence. If the fault cannot be located, use appropriate instruments for precise location. After repairing or replacing the damaged section, repeat all electrical tests under the same conditions as the initial tests and compare the results to baseline values to confirm fault recovery. Finally, restore power supply and monitor, and archive all test data and maintenance records.
When deciding how to check low-voltage cable after repair, repeat the same test method and conditions where possible. At TDDL Cable, we recommend matching the replacement cable's conductor, insulation, sheath, voltage rating, and environmental performance to the original duty. Our low-voltage power cable products can be reviewed alongside project specifications before selection.

How Can Low-Voltage Cable Maintenance Prevent Recurring  Faults?

Effective low-voltage cable maintenance combines regular visual inspections with trend-based electrical testing. Tighten terminals to the specified torque. Keep the casing dry and clean. Inspect protection devices. Inspect cable joints and supports. Scan heavy-duty joints for abnormal temperatures. Record load, ambient temperature, continuity resistance, and insulation resistance. This will reveal gradual cable degradation.
Low-voltage cable inspections should be scheduled after flooding, construction, repeated tripping, unusual odors, or overheating. TDDL Cable can support cable structure and application review for system planning through our technical articles and contact channels. Preventative documentation also helps differentiate between cable defects, overloads, equipment malfunctions, or inadequate protection device coordination.

FAQ

Q: How to test a low-voltage cable with a multimeter?

A: First, disconnect the power -> then test for voltage (using an voltage tester) -> after confirming there is no power -> then connect the grounding wire -> finally use a multimeter to measure the resistance. Disconnect both ends. Then use resistance mode for end-to-end continuity and conductor comparison. A multimeter can find open and solid shorts. However, it cannot replace a megohmmeter for insulation resistance testing.

Q: What is the difference between continuity testing and megohmmeter testing for low-voltage cables?

A: Continuity testing checks whether the conductor path is intact and whether the resistance is low. Megohmmeter testing of low-voltage cables applies a higher DC test voltage to assess insulation leakage between the conductor and ground.

Q: What are the causes of malfunctions after low-voltage cable installation?

A: Common causes include pulling damage, tight bends, cut sheaths, loose terminations, overload, water ingress, chemical attack, vibration, and incorrect cable selection.

Q: When should Low-Voltage power cable testing be repeated?

A: Testing should be repeated after installation, maintenance, water ingress, abnormal tripping, overheating, significant load changes, or at time intervals specified in the site maintenance and safety plan.
