Complete Guide to XLPE Cable Construction for Power Transmission Projects
XLPE-insulated medium-voltage (MV) power cables: conductor size, insulation thickness, semiconductive screens, metallic shielding, sheath design, accessories, and installation conditions all affect cable service life. Proper installation and use of cable accessories are also essential to achieving the expected service life. For that reason, engineers should review the complete design before approving a cable schedule. The following sections focus on the construction details that influence cable selection, manufacturing quality, and field performanc.
.png)

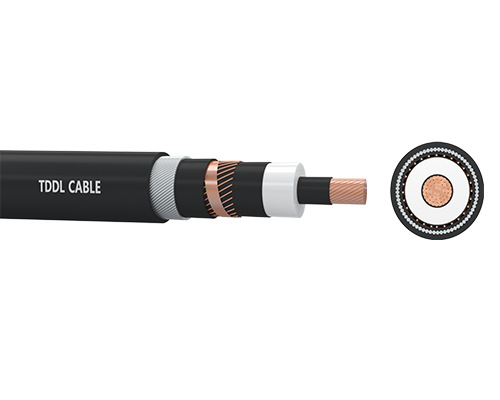

What Are the Main Components of an XLPE-Insulated MV Power Cable?
A standard XLPE-insulated MV power cable consists of a stranded conductor, conductor screen, XLPE insulation, insulation screen, metallic screen, and outer sheath. Longitudinal or radial water-blocking layers, armor, or special sheath designs may be added when required by the installation route and service conditions.The conductor carries the load current. For the same current-carrying capacity, copper conductors generally offer lower resistance and a smaller conductor size than aluminum conductors, which can reduce the required installation space. Aluminum conductors reduce cable weight and material cost, but their larger conductor size and overall cable diameter must be considered during installation planning.
The insulation layer provides the required electrical insulation and dielectric strength. The conductor screen and insulation screen help create a uniform electric-field distribution and reduce the risk of partial discharge. The metallic screen provides a path for fault current and contributes to the protection and safety of the cable system. The outer sheath provides mechanical protection as well as protection against moisture and other environmental conditions.
How Does the Cross‑Section of an XLPE‑Insulated MV Power Cable Affect Design?
The XLPE cable cross section affects more than just continuous current-carrying capacity. It affects voltage drop, heat dissipation, cable weight, pulling and bending forces, drum dimensions, and compatibility with accessories. In MV cable design, insulation thickness and screen construction are just as significant as conductor size.
A cable drawing should show the conductor diameter, insulation thickness, screen dimensions, sheath thickness, and applicable tolerances. Cable dimensions must be compatible with the selected accessories. A cable that meets the conductor-size requirement but falls outside the accessory’s specified dimensional range is not a workable project solution.
What Do the Screens and Sheath Actually Do?
The two semiconductive screens—the conductor screen and the insulation screen—create controlled electrical boundaries around the insulation, ensuring a uniform electric-field distribution and reducing the risk of partial discharge. The metallic screen provides a low-impedance path for fault current and helps control the electric field. Its cross-sectional area must be checked against the expected earth-fault current and fault-clearing time.Screen bonding is a separate design consideration. Single-point bonding can reduce circulating currents under certain operating conditions, but induced sheath voltage must remain within safe limits. Solid bonding at both ends is straightforward but may increase circulating-current losses. Cross-bonding can be used on long MV cable circuits where induced voltages and circulating currents require tighter control.
How Does Manufacturing of XLPE‑Insulated MV Power Cables Control Insulation Quality?
The most critical stage in XLPE‑insulated MV power manufacturing is the extrusion of the insulation system. MV cables are commonly produced using a triple-extrusion process, in which the conductor screen, XLPE insulation, and insulation screen are applied in a controlled operation. This minimizes interfacial contamination, provides smooth interfaces between layers, and helps maintain the concentricity of the three layers.The conductor should be a compacted, stranded, circular conductor and must meet the specified design requirements before extrusion. Material cleanliness is critical because small particles or surface irregularities can distort the electric field and cause partial discharge.
In-process quality controls should include resin handling, extrusion pressure, line speed, curing temperature, insulation eccentricity, and screen thickness. The supplier should provide complete traceability records linking each finished drum to material certificates, production records, and routine test results.
What Is the XLPE Insulation Material?
XLPE is a cross-linked thermosetting polyethylene insulation compound. It offers low dielectric loss, good moisture resistance, and better dimensional stability at elevated temperatures than ordinary thermoplastic polyethylene.The normal continuous conductor operating temperature for XLPE-insulated cables is typically 90°C. Emergency overload and short-circuit temperature limits depend on the applicable standard, conductor size, screen design, fault duration, and installation method. Ampacity calculations must use the applicable XLPE cable temperature rating together with soil thermal resistivity, grouping, duct conditions, and ambient temperature.
How Is the Insulation Checked Before Shipment?
Routine testing normally includes conductor resistance, dimensional inspection, insulation thickness, metallic screen continuity, and AC voltage tests. For MV cables, partial-discharge testing is also commonly required.The acceptance criteria should be agreed upon before production. Test reports should identify the cable length, test conditions, applicable standard, and test results. For long circuits, traceable records are particularly valuable because locating a defect after installation can require major civil works and an outage.

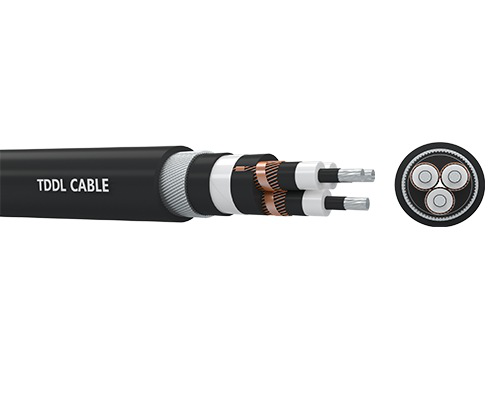

Which Voltage Classes Fit a Power Transmission Project?
Low-voltage (LV) XLPE cables are commonly used in building services, plant distribution, and auxiliary circuits. MV cables serve industrial and utility feeders. High-voltage (HV) XLPE cables are selected when the system voltage and insulation coordination require a higher voltage class.A 33 kV XLPE cable is widely used in substations, industrial parks, wind projects, solar plants, and utility networks. Selection should be based on the maximum system voltage, insulation level, fault current, earthing arrangement, installation method, and accessory design rather than the voltage label alone.
.png)
When Is a 33 kV XLPE Cable Appropriate?
A 33 kV cable is appropriate when its rated voltage is 19/33 kV (U₀/U) and the maximum system voltage is 36 kV. The complete cable system, including joints and terminations, should be appropriately type-tested for the applicable voltage class. Engineers should calculate conductor temperature, voltage drop, soil thermal resistivity, grouping effects (e.g., trefoil, flat-spaced, or flat-touching arrangements), installation arrangement (e.g., direct burial, duct bank, or tray), screen losses, and short-circuit withstand capability.A catalog ampacity value may be useful for comparison, but it is not a substitute for site-specific design. Route-specific correction factors—such as ambient temperature, laying depth, soil thermal resistivity, center-to-center spacing, and load profile—can change the required conductor size.
What Requires Extra Attention in MV XLPE Cables?
For MV XLPE cables, small geometric defects can have significant consequences. Screen smoothness, insulation cleanliness, eccentricity, and accessory fit must be tightly controlled. Joints and terminations should be specified based on the cable’s measured insulation diameter and screen arrangement, rather than nominal conductor size alone.Metallic screen bonding also affects induced voltage, sheath heating, and losses. The bonding method should be analyzed and tested as part of the complete cable system.
How Should XLPE-Insulated MV Power Cables Be Installed and Tested?
Before pulling, confirm drum identification, cable length, route clearance, pulling direction, and the approved pulling-tension calculation. Rollers should support the cable without forcing it against sharp edges. Keep the cable within its minimum bending radius during pulling, jointing, and final positioning.Cable ends must remain sealed against moisture. In trenches and ducts, check spacing, thermal backfill, drainage, and support. Cleats should restrain the cable during faults without damaging the sheath.
Which Checks Should Be Completed Before Cable Pulling?
Inspect the drum and sheath, verify phase marking, and check that lifting equipment is suitable. Review joint-bay dimensions, pulling equipment, communication arrangements, and emergency procedures. A route containing standing water or sharp debris should be corrected before the cable is removed from the drum.What Should Be Tested Before Energization?
After installation and before energization, the following electrical tests should be completed in accordance with the approved test plan: conductor resistance, sheath surface voltage, insulation resistance, AC withstand-voltage testing (e.g., at power frequency or VLF), tanδ, and partial-discharge measurement, as applicable.A thorough visual inspection of the outer sheath and accessories should be conducted during and after testing to identify any mechanical damage or defects.
All test records, including cable lengths, sheath-bonding arrangements, joint and termination details, visual inspection logs, and final electrical test results, should be documented and retained. These records facilitate efficient system handover and future maintenance planning.
How Can You Evaluate an XLPE Cable Manufacturer or Supplier?
A capable XLPE cable manufacturer should provide construction drawings, dimensional tolerances, standards references, routine test reports, and material traceability. When comparing XLPE cable suppliers, review their technical support and project experience as well as price.Ask whether the supplier can provide copper or aluminum conductors, the required cross-sectional areas, customized screen designs, water-blocking options, compatible accessories, drum protection, and delivery documentation. Confirm how technical queries are handled during installation and commissioning.
At TD Cable, we support utility, industrial, renewable-energy, and infrastructure projects with configurable conductor materials, screen arrangements, sheath options, and project documentation. Packaging and delivery planning are included in the technical discussion because cable damage during transport can undermine the value of careful factory production.
.png)
What Can Visitors See at Middle East Energy (MEE) Dubai 2026?
Middle East Energy (MEE) Dubai 2026 will be held from September 1–3, 2026, at the Dubai World Trade Centre in the UAE. At Booth P.H39, TD Cable will present XLPE cable solutions for power transmission and distribution, including HV XLPE cables, 33 kV XLPE cables, copper-conductor XLPE cables, and customized XLPE power cable designs.Visitors can discuss XLPE cable cross-sectional requirements, insulation temperature limits, screen-bonding options, testing documentation, packaging, and delivery support with the technical team. For buyers comparing XLPE cable manufacturers, the event also provides a convenient opportunity to review manufacturing capabilities and project support in one visit.
FAQ
Q: What is the normal operating temperature rating of XLPE-insulated MV cables?
A: The common continuous conductor operating temperature rating is 90°C. Emergency overload and short-circuit temperature limits must be confirmed against the applicable standard and installation conditions.Q: What are the essential components of an XLPE-insulated MV power cable?
A: The conductor, conductor screen, XLPE insulation, insulation screen, metallic screen, and outer sheath are the essential components. Water-blocking layers or armor may be added for specific routes and service conditions.Q: When should I use a 33 kV XLPE cable?
A: The rated voltages are designated as U₀, U, and Um. U₀ is the rated power-frequency voltage between a conductor and earth or the metallic screen; U is the rated power-frequency voltage between conductors; and Um is the maximum value of the highest system voltage for which the equipment is designed.First, confirm the applicable rated-voltage designation for the 33 kV cable. A 33 kV cable can be used when the system voltage and installation conditions fall within the cable's specified design range.
