Solar Cable Selection Guide: How to Choose the Right Cable for Photovoltaic Systems

Share:

Choosing the right solar cable helps a photovoltaic system transmit power safely and reliably. Cable selection affects current capacity, voltage drop, service life, and resistance to sunlight, moisture, heat, and mechanical stress. This solar cable selection guide explains how to identify the cable’s role, select an appropriate size, compare common cable descriptions, and check installation requirements.

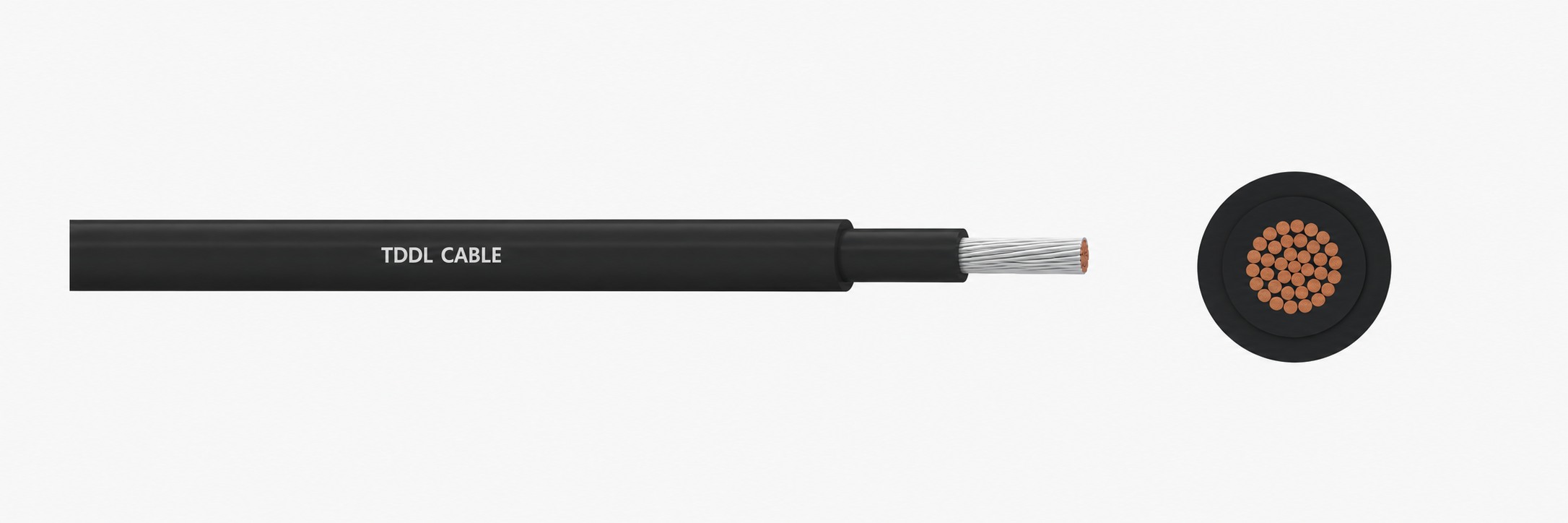

Solar Cable Selection Guide How to Choose the Right Cable for Photovoltaic Systems

How Does a Solar Cable Work in a Photovoltaic System?

Photovoltaic modules convert sunlight directly into direct current (DC) electricity. Multiple solar cells form modules, which are connected in series or parallel to create an array with the required output. Solar cable carries electricity from the modules through collection and conversion equipment.
Different sections of a solar power system may require different cables. Solar cables connect modules and collect current toward a combiner box. Low-voltage cables carry DC power from the combiner box to the inverter. After conversion, low-voltage AC cables transmit AC power from the inverter to the step-up substation (or compact substation). After voltage step-up, medium-voltage cables carry power from the step-up substation to the grid connection point. Control cables serve monitoring and control functions.
Before selecting a cable, identify where it will be used. A module connection, DC feeder, and AC connection have different electrical and installation requirements. Record the circuit, voltage, current, conductor size, route, and termination method in the cable schedule.

What Should a Solar Cable Selection Guide Check First?

Begin with the circuit and its installation conditions, rather than choosing by cable name alone.

Solar cable application and current path

Confirm whether the cable connects solar panels, collects current from strings, runs from a combiner box to an inverter, or carries AC power after the inverter. Use system drawings and equipment data to determine the circuit’s design values and confirm whether it is a DC or AC application.
Modules connected in series increase circuit voltage, while parallel connections combine current. The array layout therefore affects cable requirements. Keep polarity clear and document how each string connects to the combiner equipment.

Outdoor solar cable exposure

An outdoor solar cable may face sunlight, moisture, temperature changes, abrasion, and movement. Check that its construction is rated for the actual conditions, including UV exposure. A general “outdoor” description is not enough: confirm the cable markings, product data, applicable standard, and permitted installation method.
Consider the route as well. Rooftop cables may experience higher temperatures, while cables grouped together or installed in conduit may dissipate heat differently. Protect cables from sharp edges, standing water, excessive tension, and hot surfaces.

Which Solar Cable Size Fits the Circuit?

The correct solar cable size depends on design current, route length, installation conditions, and allowable voltage drop.

Solar cable size guide: current and voltage drop

Start with the circuit’s maximum design current. Then apply the correction factors required by the project and governing electrical standard. Ambient temperature, cable grouping, conduit, and routing conditions can reduce a cable’s usable current capacity.
Next, check voltage drop. Longer runs create more resistance, so a cable that can carry the current may still cause excessive voltage drop. For DC circuits, include both outgoing and return conductors in the loop calculation. A larger conductor may reduce losses on a long run, but the final size should be based on the project’s electrical calculations.

Conductor material and termination

Conductor material affects conductivity, size, weight, and termination requirements. Check that the selected conductor works with the terminals and connectors specified for the system. Confirm that the conductor fits the termination hardware and can be installed using the required tools.
A useful cable schedule records cable type, conductor size, route, circuit designation, and termination points. This helps installers confirm each cable’s purpose and supports later inspection and troubleshooting.

Four Common StandardCompliant Products for Photovoltaic Cables

  1. PV1-F solar cable, 2Pfg 1169/08.2007 Requirements for cables for use in photovoltaic systems, AC 0.6/1 kV or DC 1500 V. Insulation and sheath use lowsmoke zerohalogen radiationcrosslinked compound. TUV certification is available.
  2. H1Z2Z2-K, Electric cables for photovoltaic systems, DC 1500 V. Insulation and sheath use lowsmoke zerohalogen radiationcrosslinked compound. TUV certification is available.
  3. IEC 62930, Electric cables for photovoltaic systems with a voltage rating of 1.5 kV DC. Insulation and sheath use lowsmoke zerohalogen radiationcrosslinked compound.
solar cable(1)

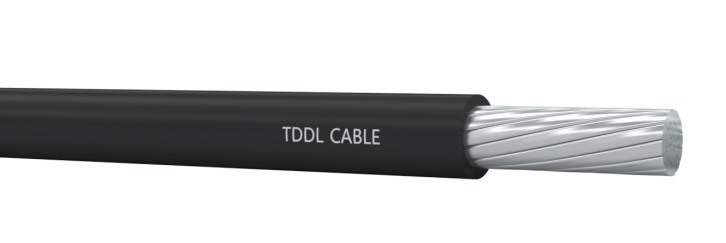

  1. UL 4703, Standard for Photovoltaic Wire, 600 V, 1000 V or 2000 V, XL insulation or sheath, 1000/2000 V, XL insulation. UL certification is available.
solar cable(2)

How Does Solar Cable Compare with Ordinary Cable?

The main difference between solar cable and ordinary cable is the environment and service conditions each is intended to withstand. A general-purpose cable may have an adequate voltage rating but may not be designed for prolonged sunlight, outdoor moisture, temperature cycling, or movement at module connections.
Photovoltaic cable is selected for the requirements of its role in a PV system. A solar panel cable near modules may need flexibility for routing while maintaining specified insulation and jacket properties. A feeder between system components may have different construction requirements.
Do not assume a cable is suitable for solar use based only on voltage rating. Check the application, temperature, environmental resistance, installation method, and applicable standards on its markings and data sheet. Connectors and terminations must also suit the cable and circuit.

How Can Installation and Inspection Prevent Solar Cable Failures?

Route cables with adequate support and protection from sharp edges. Avoid pulling them tight across moving or exposed surfaces, and respect the specified bend radius, especially near connectors and terminals. Keep DC polarity clear, and label circuits for testing and maintenance.
Use connectors and termination components specified for the chosen cable. Follow the required preparation and crimping method with compatible tooling. A poor termination can generate heat even when the cable is correctly sized. Do not mix connector components unless the equipment documentation confirms compatibility.
Before energizing the system, inspect cable jackets and markings, confirm polarity, and perform the electrical tests required by the project. Continuity and insulation-resistance tests can help identify installation problems. Record cable routes and test results for future maintenance. Thermal inspection under load may help identify abnormal heating at connections.

What Cable Is Used for Solar Panels?

For module and string connections, use photovoltaic cable specified for the system and rated for its voltage, current, temperature, and outdoor conditions. PV1-F solar cable is one designation that may appear in project documents, but the specific product ratings and certification must match the design.
Between a combiner box and an inverter, use suitable DC cable selected for circuit current, route length, voltage drop, and installation method. From the inverter toward a step-up substation, AC power cable must match the AC voltage, load, protection design, and route. These cables serve different parts of a photovoltaic system and should be specified accordingly.
In short, use a cable designed and certified for the intended photovoltaic circuit, then size and install it according to the system design and applicable standards. Confirm the cable schedule before procurement rather than relying on a generic product name.
We at TD Cable recommend confirming the cable schedule before procurement, including the required ratings, standards, and installation conditions.

FAQ

Q: How do I choose a solar cable for photovoltaic systems?

A: Identify whether the cable carries DC or AC power, determine circuit current and route length, and check voltage drop, installation conditions, environmental rating, connectors, and required standards. Follow the project specification and local electrical rules.

Q: What is a solar cable size guide based on?

A: It considers design current, cable length, voltage drop, conductor material, ambient temperature, grouping, and installation method. Verify the final size using the applicable standard and design calculations.

Q: Is PV1-F solar cable suitable for outdoor use?

A: It may be suitable when its documented construction and ratings meet the project’s outdoor conditions and applicable standard. Check the specific product data before installation.

Q: What is the difference between solar cable and ordinary cable?

A: Solar cable is selected for photovoltaic circuit requirements and may need to withstand prolonged outdoor exposure and temperature changes. Substitute another cable only when its ratings and construction meet the project requirements.

Q: When should I use XL insulated solar cable?

A: XLinsulated solar cable is one type of product covered under the UL 4703 standard. Use it when the complete product specification matches the circuit and installation conditions. Check voltage, temperature, environmental suitability, certification, and connector compatibility.
