Solid vs. Stranded Copper Grounding Wire: How to Choose for Your Electrical System
What Are the Core Physical Differences Between the Two Designs?
Flexibility and Maneuverability During Installation

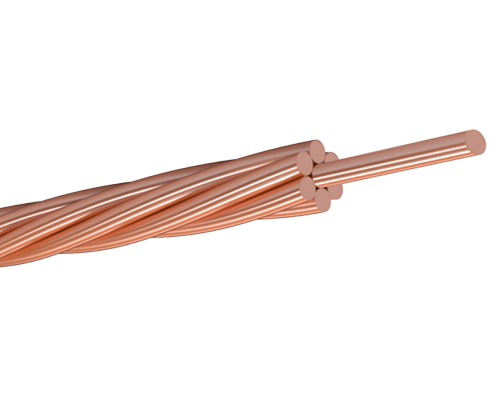

Solid copper grounding wire has a single continuous conductor. It gives stiffness and steadiness. This suits fixed setups with little motion. Stranded copper grounding wire uses many small copper strands twisted together. It adds bends and simple routing in pipes or narrow spots. The conductor forms concentric strands from bare copper or copper alloy wire. This build lets stranded conductors bend or coil without harm. It fits moving spots and gear links..png)
Surface Area and Current-Carrying Efficiency
The strand setup raises the total surface area in a stranded wire versus a solid one of equal gauge. It can aid the current spread across the conductor section. This holds more in AC systems where skin effect matters. Yet both types match in conductivity for most grounding copper wire jobs at low frequencies or DC use.Mechanical Strength and Resistance to Breakage
Solid copper grounding conductors give higher pull strength. They resist fraying or breaking when held in terminals. They may turn stiff after many bends, though. Stranded wires spread stress over many threads. This adds toughness against shake fatigue. Copper-clad steel wire mixes steel core strength with copper layer flow. The mix shows how strength and flow join for tough spots.Can You Use Stranded Copper Wire for Grounding?
Situations Where Stranded Designs Are Mandatory
Yes. Stranded copper grounding wire often fits jobs with motion or shake. Examples include mobile gear, generators, or flexible pipes. Its bend stops cracks at joints and keeps steady use in moving systems. DSA Copper Clad Steel stranded conductors replace copper conductors in grounding jobs and setups. This shows stranded builds work for strong earth nets.Best Applications for 1/0 Bare Copper Wire in Complex Grids
Big power grids often pick 1/0 bare copper wire. It balances flow and fair bend. It fits substation earth meshes and plant earth systems. Fault currents drain fast through linked paths.Mitigating Vibration Damage in Moving Machinery

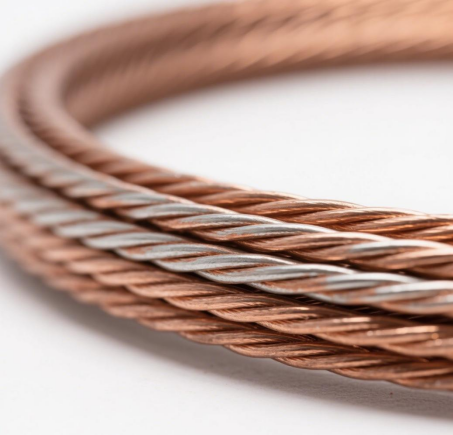

Grounding with copper benefits moving parts like motors or transformers on shake mounts. Stranded builds soak up motion. They avoid stress on terminal lugs. The multi-thread build stops work hardening that could break flow over time..png)
Where Does a Single Bare Copper Grounding Conductor Perform Best?
Fixed Installations in Residential and Commercial Service Panels
Solid bare copper wire for grounding works well in fixed spots. These include home panels or building risers. Conductors stay put after installation. It keeps firm contact under screws or clamps without strand split.The Role of 6 AWG Solid Copper Wire in Standard Earthing
A 6 AWG solid copper grounding conductor meets code for panel-to-earth electrode bonds. Its stiffness eases straight runs along walls or trenches. It holds low-resistance paths in fault cases.Achieving Maximum Corrosion Resistance in Direct Burial
Copper resists rust on its own. This allows direct burial of bare conductors with no extra coats. Copper has the highest electrical conductivity after silver. It has top heat flow after gold and silver. It resists rust, stays non-magnetic, bends well, and joins easily. These traits make solid bare copper fit long outdoor grounding wire jobs in wet soil.How Do You Select the Best Wire for Grounding Based on Gauge and Budget?
Calculating Fault Current Load to Determine the Right AWG
Picking the best wire for grounding needs fault current size and time checks per NEC rules. Lower AWG numbers mean thicker wire. Values like 2 AWG or 1/0 suit high fault current spots.Evaluating the 16mm Bare Copper Earth Wire Price for Commercial Projects
Commercial jobs weigh cost and safety. Checking the 16mm bare copper earth wire price shows if it fits while meeting the needs of copper grounding systems.Sourcing Reliable Materials Through TDDL cable
At TDDL cable we supply both solid and stranded types for each job. These range from home bonds to plant substation grids. Our items meet ASTM B3 and ASTM B8 rules for steady bare conductor quality.Which Construction Performs Better in Harsh Weather Conditions?
Navigating Soil Moisture with Outdoor Grounding Wire
Outdoor jobs need rust-proof parts. Soil moisture shifts often. Overhead ground wires use galvanized steel strands. Good conductor ground wires like aluminum-clad steel strands fit the inlet and outlet ends. Tinned or coated types shield bare copper grounding conductor faces from harsh soil.Preventing Oxidation in Exposed Bonding Connections
Oxide at bond points can raise resistance later. Antioxidant paste during build adds life. Pure solid copper resists rust well. It cuts upkeep needs in damp air. This helps when choosing outdoor grounding wire parts.FAQ
Q: Can I use bare copper wire for grounding instead of insulated wire?
A: Yes. Bare copper wire for grounding sees wide use. Insulation is not needed once the wire sits buried or joins metal boxes made for earth flow.Q: Why use bare copper wire for grounding over aluminum alternatives?
A: Copper gives higher flow and better rustproofing than aluminum. It keeps steady long -term results where soil moisture shifts a lot.Q: What is bare copper wire used for in telecommunications?
A: In telecom, bare conductors act as shared earth links. They join antenna masts or rack gear. The core is often low-carbon steel. It serves as a grounding wire or the center of coax cables.Q: Does solid copper grounding wire rust when buried underground?
A: No. Pure solid copper grounding wire does not rust because it contains no iron. Instead, it develops a protective oxide layer that helps maintain reliable conductivity for many years. TDDL cable supplies solid copper grounding wire for durable underground grounding systems.
