What to Consider When Choosing a KVV Cable Control Cable Model
.JPG)

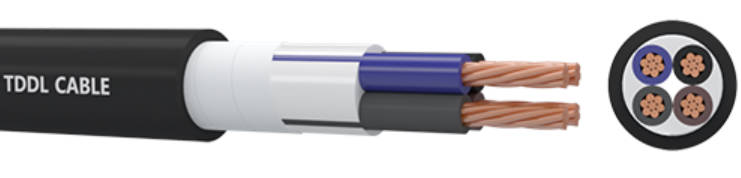

What’s a KVV Cable?
KVV cable is a control cable you’ll often see in industrial or construction projects. It’s used for sending signals, controlling systems, or keeping an eye on equipment. These cables are built for fixed setups in power or automation systems. They handle AC voltage of 0.6/1kV or lower. TDDL makes a bunch of KVV cables that work well in different environments and meet technical requirements, and they always perform reliably.
Checking the Tech Stuff
Voltage and Insulation
Make sure the cable’s voltage rating matches your system. KVV cables are good for low-voltage jobs, rated at 0.6/1kV or lower. They’re a solid choice for industrial setups. Insulation keeps things safe. TDDL uses PVC insulation, which is tough and stands up to environmental challenges.
Conductor Material and Technique
The conductor makes a big difference in how the cable works. TDDL uses high-quality copper conductors that follow IEC 60228 standards. You can get them solid or stranded, in class 1, 2, or 5. Copper is great for conductivity and stays strong over time.
Why Shielding Is a Big Deal
Shielding stops electromagnetic interference (EMI) from messing up your signals. This matters a lot in sensitive electric systems. If you’re in a spot with lots of EMI, like near big machines, pick a shielded cable like KVVP2. It has copper tape shield. TDDL offers shielded and unshielded options to fit what you need.
Thinking About Where It’ll Go
Indoor or Outdoor Use
The location of cable laying determines the required materials. TDDL’s KVV cables have strong PVC outer layers. These hold up against wear, sunlight. They’re good for indoor and outdoor use.
Handling Heat and Fire
Temperature changes can affect cables. The maximum long-term operating temperature of TDDL’s PVC insulation cable is 70 ℃. According to the requirements, it can meet different flame retardant levels of IEC 60332, such as Category B or Category C.
Dealing with Water, Oil, and Chemicals
In harsh environments with severe oil pollution or chemicals, TDDL can choose oil resistant sheath materials. Compared to PE material, PVC material itself has poor water absorption and wear resistance, and is not suitable for humid environments.
Getting the Right Size and Core Count
Figuring Out Current Needs
Know how much power your system uses to pick the right conductor size. Too much current can overheat or break the cable. Talk to an engineer or check current-carrying capacity. TDDL has lots of size options.
Picking the Number of Cores
Control systems often need multiple signal paths. You’ve got to pick the right number of cores. TDDL offers cables with multiple cores for complex projects that need separate circuits in one cable.
Matching with Your Systems and Gear
Fitting with What You Already Have
If you’re adding to or upgrading a system, make sure the KVV cable works with your existing parts, like terminals or ducts. TDDL builds cables to IEC 60502-1, ICEA, BS and other standard products, so they fit in systems worldwide.
Meeting Your Equipment’s Needs

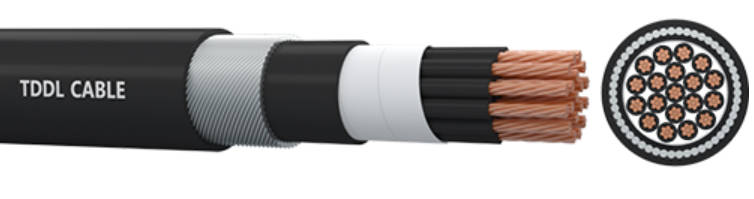

Your cable should handle what your equipment needs, like signal speed or noise resistance. TDDL has armored cables, like KVV22 or KVV32, for extra protection if your setup calls for it.
Cost and Picking a Supplier
Balancing Quality and Budget
Budgets can be tight, but cheap cables might cost you more in repairs later. TDDL offers good cables at reasonable prices. You get safety and performance without spending too much.
Choosing a Supplier You Can Trust
A solid supplier gives you real products, meets standards, delivers on time, and offers support. TDDL has years of experience and sticks to IEC, ICEA, BS etc. We are a reliable choice for cables like NYY (KVV), NYBY (KVV22), NYRGBY (KVV32), and NYSY (KVVP2).
TDDL has many cases that needed KVV cables that meet IEC 60502-1 and ICEA, BS, DIN etc. This makes it easy for engineers, buyers, or planners to find a good cable without cutting corners. By knowing your project’s needs and going with a brand like TDDL, you’ll get reliable performance and easy installation in any industrial or commercial setup.
FAQ
Q: How’s a KVV cable different from other control cables?
A: KVV cables are made for control, monitoring, and protection circuits at 0.6/1kV or less. They use PVC insulation and copper conductors. Unlike power cables, they’re all about signals and control.
Q: How do I know if a KVV cable is right for my project?
A: Check your project’s voltage, environment (indoor, outdoor, wet, chemical-heavy,current-carrying capacity, long-term operating temperature), and signal needs. Make sure the cable’s conductor size and shielding fit your system. An engineer can help you double-check.
Q: How do I pick the right number of cores?
A: Figure out how many separate signals or circuits your system needs. Choose a cable with enough cores. Plan for future growth too. TDDL has multi-core cables for complex projects.
