ACSR Conductor Installation Guide for Utilities and Contractors
1. Introduction to ACSR Conductors

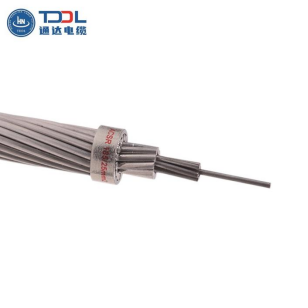

Aluminum Conductor Steel Reinforced (ACSR) conductors see wide use in overhead transmission and distribution lines. They provide a solid balance of durability, electrical flow, and low cost. Aluminium Conductor Steel Reinforced (ACSR) forms a concentrically stranded conductor. It features one or more layers of hard drawn aluminium wire over a galvanized steel wire core. The steel core delivers strong tensile strength. As a result, it supports greater span lengths with less sagging..png)
At the same time, the outer aluminum strands ensure fine electrical conductivity. The core might be a single wire or stranded, depending on the size. In places prone to corrosion, added safeguards exist. For instance, you can add grease to the core. Or, you can fill the entire cable with grease. Such qualities position ACSR conductors as a solid option for high-voltage transmission systems.
2. Planning and Preparation
Site Assessment & Planning
Solid installation begins with a detailed site review. Examine land features, such as hills, valleys, and wetlands. In addition, consider nearby weather conditions. These cover wind speeds, ice buildup, and temperature shifts. Spot entry routes for vehicles and gear ahead of time. Doing so cuts down on construction holdups. Chart out barriers like trees, structures, and current utility lines. Then, use that map to outline secure and smooth conductor routes. Work closely with local officials. Such coordination is essential for securing right-of-way permits. It also confirms adherence to safety and environmental standards.Conductor Selection
Picking the correct conductor type relies on various technical aspects. With ACSR conductors from TDDL cable, physical and power-related traits count. These encompass tensile strength, current-carrying capacity, and thermal performance. Such elements need to fit the voltage level and site conditions of the job. Steel-core aluminum stranded wire boasts robust mechanical strength. Plus, it remains light and budget-friendly. Therefore, it fits high-voltage transmission lines nicely. Review manufacturer specs. Confirm they align with planned span lengths, wind pressure, and corrosion risks. ACSR performs particularly well for extended spans in high-voltage scenarios with ACSR certification. That stems from its favorable strength-to-weight balance.3. Safe Handling and Transport
Personal Protective Equipment (PPE)
Dealing with ACSR conductors involves physical risks and potential contact with energized lines. Every worker must don PPE that complies with OSHA or IEC guidelines. Items include insulated gloves, safety glasses, hard hats, flame-resistant (FR) clothing, and dielectric footwear.Handling and Lifting Techniques
To prevent issues like kinking or birdcaging, raise conductors using suitable tools. Opt for conductor grips and soft slings. Abrupt bends might warp the aluminum strands or displace the steel core. When handling heavy reels, utilize cranes or mechanical hoists. This eases the burden on staff and the equipment.Storage & Transportation
Keep conductors on level ground in dry, well-drained areas. That avoids reel warping or water damage. Secure reels with blocks to halt any rolling. Shield them if stored outside. In transit, fasten reels using straps. This stops movement or overturning.4. Installation: Stringing Techniques
Stringing Methods
Two key approaches apply to stringing ACSR conductors: tension stringing and slack stringing.- Tension Stringing holds steady tension across the entire operation. This approach curbs conductor droop and excess stress. It also promotes balanced mechanical load over the span.
- Slack Stringing places the conductor under low tension initially. Afterward, it applies winches or pulleys to adjust tension later.
Tools and Machinery
The setup calls for dedicated gear. Examples are hydraulic pullers to apply tension, tensioners to manage feed speed, pulleys to direct the path, and conductor grips for firm grasp. Such items maintain straight lines and guard against physical harm.Key Considerations
Overly high tension might lead to wire harm. Examples include birdcaging, with outer strands spreading apart, or strand breaks. Employ live monitoring via tension meters. These prove crucial for keeping pull forces in safe limits. Steady tension safeguards the aluminum strands and steel core.5. Inspection and Quality Control
Pre-installation Checks
Prior to unloading reels, perform a visual exam. Search for rust, bends, or surface damage on the conductor. Inspect for corrosion, damage, or deformation before unloading. Make sure reels remain whole. Flanges ought to stay unmarked, and labels clear.Installation Monitoring
In the stringing phase, track line tension using precise meters. Carry out visual scans along the full span as well. Identify traces of rubbing from pulleys or improper grips. Such problems could trigger birdcaging or snapped strands.Risk Mitigation
To lower setup dangers, employ soft slings when raising conductors. That avoids harm to strands. Steer clear of pulling conductors across coarse ground. Otherwise, it might strip away guard grease or mar the aluminum.6. Worker Safety Protocols
Training Programs
Every team member requires complete training. Topics include ACSR conductor traits, safe grip methods, power dangers, and crisis handling. Grasping ACSR's build is vital for tensioning and end-fixing tasks.On-Site Safety
Apply lockout/tagout (LOTO) to all powered devices prior to starting. Confirm grounds are set before contacting lines or fittings. Place safety kits holding first aid items and AEDs at various site points. Frequent practice drills foster readiness..png)
7. Maintenance Post-Installation
Routine Inspections
Periodic reviews matter a lot. They uncover deterioration from heat growth, shake wear, or outside elements. Thermal imaging tools detect heat points effectively. These could signal weak joints or conductor decline.Addressing Wear-and-Tear
Swap out faulty spacers, dampers, or parts right away. That halts chain reactions. Install vibration sensors on windy spans. They watch for shakes that might cause crack fatigue in time.Regular upkeep boosts the span of ACSR systems. It guarantees steady performance amid varying loads.
Through these thorough steps for planning, setup, review, and upkeep, utilities and contractors ensure ACSR conductors function dependably in high-voltage transmission. Their firm mechanical durability and power flow make them essential in current grid structures. Bare conductors make up the core of overhead lines. They transport current and deliver electrical power.
