XHHW-2 Aluminum vs Copper Conductor: How to Choose the Right Building Cable for Your Project
Introduction
Picking the right building cable takes more than a simple price check on conductors. Engineers and contractors need to look at ampacity, voltage drop, the installation setting, raceway space, termination quality, cable weight, and long-term maintenance.XHHW-2 wire is often used for services, feeders, and branch circuits. The cross-linked polyethylene insulation of XHHW-2 is suitable for both wet and dry locations. While XHHW-2 wire is available with either an aluminum or copper conductor, the choice between the two can impact the rest of the electrical design and installation steps.
This guide compares aluminum-conductor XHHW-2 with copper-conductor XHHW-2 and shows how to pick XHHW-2 wire for homes, offices, and factories.
.jpg)

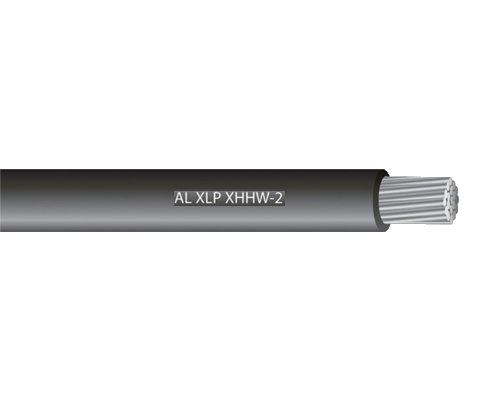

What Is XHHW-2 Wire for Building Cable Applications?
XHHW-2 is insulated building wire for power runs in conduit or other approved raceways such as conduit bodies and junction or pull boxes. XHHW-2 serves as an insulated building wire for power runs inside conduit and other accepted raceways. The name points to its main insulation traits: cross-linked synthetic polymer that stands up to heat and water.XHHW-2 wire has a maximum conductor temperature rating of 90°C in both wet and dry locations. Some versions also list a voltage rating of 600 V or 600/1000 V, depending on the construction and certifications.
This setup makes XHHW-2 a reliable choice for locations that may be exposed to moisture, condensation, or elevated temperatures.
XHHW-2 Wire Construction and Features
XHHW-2 wire usually has a stranded aluminum or copper conductor wrapped in cross-linked polyethylene, or XLPE, insulation. The stranding gives the flexibility needed to pull bigger conductors through raceways and into equipment.XLPE is a thermoset material. It provides good heat stability, moisture resistance, and toughness. It does not soften as fast as thermoplastic insulation when heat rises.
At TD Cable, our aluminum XHHW-2 line covers common large feeder sizes. Our copper line fits both small circuits and big power runs. Always match the product construction, stranding, size, and markings to the project specifications.
Common Applications of XHHW-2 Wire
XHHW-2 wire is commonly used in the following applications:- Service-entrance conductors in approved raceways
- Main and sub-main building feeders
- Branch-circuit wiring
- Panelboard and switchgear ties
- Commercial building distribution systems
- Industrial power and motor circuits
- Underground conduit runs
- Outdoor raceways in wet areas
XHHW-2 Aluminum Conductor vs Copper Conductor: Key Differences
The main differences between aluminum and copper cover conductivity, conductor size, weight, first cost, termination rules, and raceway space. No material wins in every case.Electrical Performance Comparison
Copper conducts electricity better than aluminum. So an XHHW-2 copper conductor can often handle the same load in a smaller size. Its compact form may cut voltage drop and ease pulls through tight spots.An XHHW-2 aluminum conductor normally needs more cross-sectional area to match the ampacity. The designer must check ampacity tables, voltage drop, heat correction, grouping, and the temperature rating of the connected equipment.
The 90°C insulation rating can help with the ampacity adjustment and correction factors where allowed. Yet the final ampacity may still be limited by the 60°C or 75°C terminals ratings.
Weight and Cost Comparison
At the same ampacity, aluminum weighs far less than copper. The lighter weight reduces handling effort, pulling force, and support requirements on long runs or jobs with many big conductors.Aluminum also tends to cost less upfront. But the full installed system matters. A bigger aluminum conductor may call for a larger raceway, more bending space, or special terminals.
Copper costs and weighs more, yet its smaller size can reduce raceway and equipment requirements. Total installed cost decides the real value.

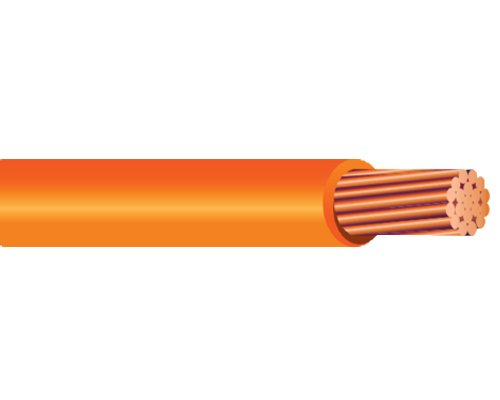

Installation Considerations
Aluminum conductors need terminals rated for aluminum or dual use. Installers must follow the proper preparation steps, oxide-inhibitor use if needed, and torque values. Poor terminations raise resistance and heat.Copper works with many standard terminals. It fits well where space is tight. In all cases, crews must watch bend radius, pull tension, fill limits, and maker instructions.
Use a torque wrench on every connection and re-verify them during commissioning.
.jpg)
XHHW-2 Aluminum Conductor: Advantages and Applications
An XHHW-2 aluminum conductor gives a good mix of performance and cost, especially on big distribution runs.Benefits of Aluminum XHHW-2 Wire
Key gains include lower weight, simpler handling, and lower material cost. Aluminum is most beneficial in large sizes, where copper becomes heavy and hard to pull.Aluminum conductors generally use 8000-series aluminum alloy, which offers better flexural fatigue resistance and creep stability than traditional pure aluminum conductors. The lighter weight can also permit wider support spacing and reduced load on cable trays or structures.
These gains work best when raceway size and termination needs are planned early.
Typical Applications of Aluminum XHHW-2 Conductor
Aluminum XHHW-2 wire fits these uses:- Large service-entrance conductors
- Main distribution feeders
- Long commercial runs
- Multi-unit residential jobs
- Warehouses and retail sites
- Industrial distribution circuits
XHHW-2 Copper Conductor: Advantages and Applications
Copper stays the top pick where compact size, strong conductivity, and easy terminations matter most.Benefits of Copper XHHW-2 Wire
Copper gives high conductivity, good mechanical strength, and a smaller size for the same load. This can make pulls easier in packed raceways, small panels, and tight electrical rooms.Copper also suits circuits with many terminations or strict voltage-drop requirements. Its broad terminal fit can speed up installation and service.
Typical Applications of Copper XHHW-2 Conductor
Copper XHHW-2 wire works well for:- Branch circuits and smaller feeders
- High-load runs in tight raceways
- Switchboards and small panels
- Motor and industrial equipment connections
- Retrofits in existing conduit
- Jobs with strict voltage-drop needs
How to Choose the Right XHHW-2 Building Cable?
Start with the load and needed ampacity. Then check run length, voltage drop, ambient heat, grouping, raceway fill, wet or dry conditions, terminal ratings, and local codes.XHHW-2 Wire for Residential Projects
Homes may use XHHW-2 for service conductors, panel feeders, detached-building feeds, and circuits in underground conduit. Aluminum often saves money on big feeders. Copper works better on small circuits and in tight panels.XHHW-2 Wire for Commercial Projects
Commercial jobs often need long feeders, vertical risers, crowded raceways, and big distribution gear. Aluminum can trim weight and cost on large feeders. Copper may fit better in small electrical rooms or on runs with tight voltage-drop limits.XHHW-2 Wire for Industrial Projects
Industrial work must also weigh motor starting currents, vibration, chemicals, moisture, service frequency, and protection needs. Copper often fits compact or high-cycle circuits. Aluminum can handle large, fixed distribution feeders.XHHW-2 vs THHN/THWN-2: Which Building Wire Should You Choose?
When choosing between XHHW-2 and THWN-2 insulated cables, consider the type of insulation and the requirements of the job at hand. XHHW-2 cables are made with thermoset XLPE insulation, while THHN/THWN-2 cables are made with thermoplastic PVC insulation covered with a nylon jacket.Both can carry a 90°C wet and dry rating when marked correctly. XHHW-2 is often chosen for large feeders or applications requiring thermoset insulation. THHN/THWN-2 can suit general branch circuits or projects that already specify dual-rated wire.
Always compare diameter, flexibility, pull conditions, temperature rating, and listings.
Conclusion
Picking between an XHHW-2 aluminum conductor and an XHHW-2 copper conductor calls for a full system review. Aluminum reduces weight and may lower cost on large feeders. Copper gives better conductivity and a more compact layout.At TD Cable, we suggest checking ampacity, voltage drop, raceway space, terminal fit, labor, and site conditions together. The right cable meets safety needs while keeping installation smooth and service reliable.
