Overhead Insulated Cable vs Bare Conductor: Differences, Advantages, and Applications

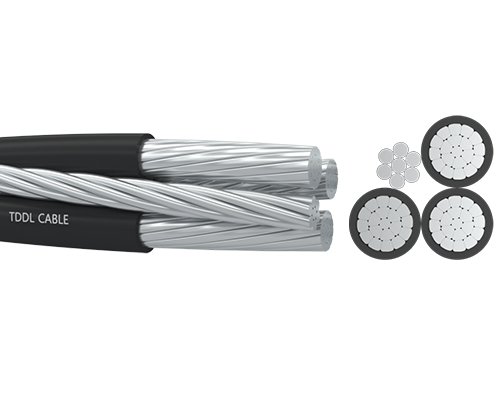

Overhead insulated cable and bare conductor both find common use in overhead power distribution. They fit different settings. Construction sets them apart. Overhead insulated cable has a protective layer of insulation around the conductor. Bare conductors rely on air clearance and fittings for insulation. Engineers check the construction, performance and typical applications to pick a solid and affordable choice for each job.
.jpg)
What Is the Difference Between Overhead Insulated Cable and Bare Conductor?
Overhead insulated cable often has a stranded aluminium conductor covered with insulation such as cross-linked polyethylene. The insulation protects the conductor from touch, moisture, sun, and some harm. Some versions add a messenger wire, neutral conductor, or water blocking layer.A bare conductor has no jacket. It sits on insulators on poles, towers, or crossarms. Air around it gives the needed separation. Bare conductors mean exposed wires that must keep a safe distance from buildings, trees, roads, other phases, and the ground.
Choice between the two depends on voltage level, span length, space, conditions, and local rules.
How Do Bare Conductors Meaning and Cable Construction Affect Design?
Bare conductor layers and materials
Common overhead bare conductors include hard-drawn aluminium, aluminium alloy, and ACSR bare conductor. Aluminium gives good conductivity with low weight. Aluminium alloy conductors offer better strength and sag control in some cases.ACSR bare conductor puts aluminium strands around a steel core. Aluminium carries most of the current. The steel core adds tensile strength. This design fits long spans, high wind areas, and spots with ice load.
An aluminium bare conductor often suits distribution lines where low weight, corrosion resistance, and conductivity count. Its strength still needs checks for span length, tensile strength, wind, temperature, and tension.
Insulation, screening, and weather resistance
Overhead insulated cable usually has a compact stranded conductor and a tough insulation layer. XLPE sees frequent use because it gives good heat performance, electrical strength, and resistance to sun and moisture.
Some insulated overhead systems use a covered conductor instead of full insulation. Covered conductors cut the chance of short circuits from branches or light contact. They may not stop all contact with energized parts. Proper fittings, piercing connectors, suspension clamps, and earthing stay key for safe work.
Which Performs Better: Overhead Insulated Cable or Overhead Bare Conductors?
Overhead bare conductors release heat straight to air. This often allows higher current capacity. Their simple build keeps costs low for long lines, substations, and open rural routes. Maintenance teams know the fittings and steps well.Overhead bare conductors still need wide clearances. Vegetation, birds, equipment, and bad weather can raise flashover or fault risk. These risks need careful design, vegetation control, relays, and checks.

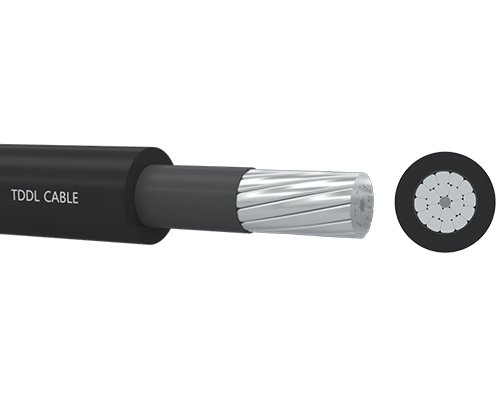

Overhead insulated cable gives better contact protection. It fits tighter corridors where rules allow. It works well in cities, forest edges, and retrofit jobs where moving poles or widening space would cost too much. Insulation can also reduce faults caused by tree branch contact between phases.
Drawbacks include higher cable and fitting costs, stricter terminations, and careful heat checks. The insulation layer slows heat release, so ampacity needs review under real conditions.
.jpg)
Where Are Overhead Bare Conductors and Insulated Cable Used?
Applications for overhead bare conductors
Overhead bare conductors show up often on transmission lines, substations, rural feeders, and industrial networks with enough clearance. They work well where poles and towers can stay away from buildings and plants.ACSR bare conductor often serves long spans because its steel core boosts strength and limits sag. It handles wind and ice while keeping ground clearance.
Aluminium bare conductor designs fit many medium voltage systems where weight and material use matter. Engineers pick size based on load, voltage drop, fault current, and strength needs.
Applications for overhead insulated cable
Insulated overhead cable fits urban lines, coastal spots, forest zones, and tight space sites. It helps lower fault risk from contact with trees or structures.For line upgrades, insulated cable may let a utility raise reliability without a full rebuild. It also serves near schools, roads, homes, and places where contact risk matters more.
How Should Engineers Select the Right Overhead Cable?
Start with electrical needs. These cover system voltage, load, short-circuit current, voltage drop, and future demand. Next, review mechanical conditions. These include span length, tension, wind, ice, max temperature, and sag limit.The area around the line also matters. Think about sun exposure, salt, humidity, fire risk, plant density, and access for work. A bare conductor may give the lowest cost in open rural routes. Insulated cable may give better long-term value in crowded or plant-heavy spots.
Full system cost covers conductors, poles, crossarms, insulators, connectors, installation hardware, inspections, maintenance, and outage risk. Product specs should list standards, conductor material, insulation type, temperature rating, UV resistance, and test data.
Our engineering team can help match conductor size and build to the job, installation method, and site conditions.
Why Work With an Overhead Insulated Cable Manufacturer?
A qualified overhead insulated cable manufacturer should provide traceable materials, controlled production, size checks, electrical tests, mechanical data, and support for fittings and installation.TD Cable supplies engineered overhead products for distribution and infrastructure projects. We support conductor choice, build options, test needs, and project delivery so the cable works well over its life.
