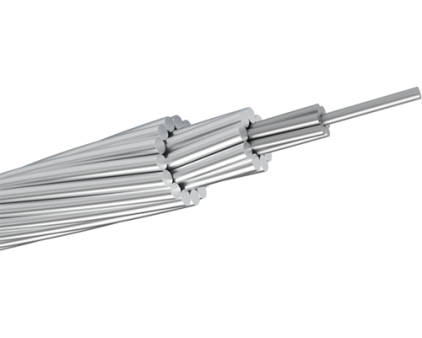

ACSR Conductor: Complete Guide to Types, Specifications, Applications and Selection
ACSR conductor works well for overhead power lines. It handles two issues in one setup. Aluminum strands carry the current. A galvanized steel core handles the mechanical load. This setup lets the conductor cover long distances. It avoids the extra weight and cost of a full copper line.
.png)
What Is ACSR Conductor?

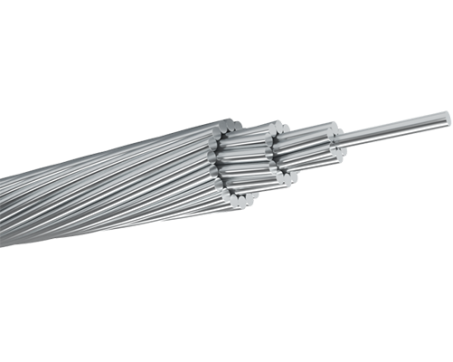

ACSR stands for Aluminum Conductor Steel Reinforced. The outer layers use hard-drawn aluminum. The center holds galvanized steel wires. One or more aluminum layers wrap around the core in most designs.The aluminum section sets most of the electrical traits. The steel core sets tensile strength and affects sag. More aluminum area reduces resistance and increases ampacity. More steel raises span length but adds weight. It can also shift thermal and mechanical traits.
This is the real meaning of an ACSR conductor. It is not just an aluminum cable with steel inside. It forms a balanced system for outdoor service.
Which ACSR Conductor Types Fit Different Lines?
ACSR conductor types vary by strand count, aluminum-to-steel ratio, diameter, and strength rating. The 26/7 or 54/7 label shows aluminum and steel strand numbers. The same area can give different mechanical results if stranding changes.Standard ACSR suits ordinary distribution lines and medium transmission spans. It serves as a low-cost option when tower loads, clearance, and weather stay moderate.
High-strength ACSR fits long spans, river crossings, railway crossings, and windy or icy routes. Extra-high-strength versions cut sag more but need stronger structures and careful stringing. Higher breaking load helps only if the full line design supports it.
Difference Between AAAC and ACSR Conductor
The difference between AAAC and ACSR conductor lies in the core material. AAAC uses aluminum alloy strands only. It weighs less and resists corrosion better. ACSR uses a galvanized steel core and gives higher tensile strength for long spans.AAAC does not always win. Its lower weight can ease some structures. Yet the chosen conductor must still meet sag, fault-current, thermal, and clearance needs. For long crossings or heavy loads, ACSR often proves more practical.
.png)
How Should You Read ACSR Conductor Specifications?
A clear ACSR conductor specification lists nominal aluminum area, steel area, strand layout, overall diameter, DC resistance, rated strength, mass, and max temperature. Good sheets also name the governing standard and note the test temperature for resistance.ACSR conductor size appears in mm², kcmil, or a code name. Avoid comparing sizes by area alone. Two conductors with similar aluminum areas can differ in diameter, weight, strength, resistance, and installation limits.
Real numbers depend on the standard, conductor temperature, weather model, strand tolerances, and maker build. ACSR conductor weight per km matters for drum choice, transport, stringing, and tower load work.
What Determines ACSR Conductor Ampacity?
ACSR conductor current carrying capacity depends on temperature, not area alone. ACSR conductor ampacity shifts with ambient temperature, wind speed, solar load, surface emissivity, altitude, and the utility max temperature limit.A line in open wind cools better than one in a sheltered hot spot. Emergency ampacity allows short overloads. Yet higher heat can raise sag and cut clearance. Short-circuit strength needs separate checks because it covers brief faults, not steady load.
ACSR Conductor Sizing Calculation
A practical ACSR conductor sizing calculation starts with design current from system power, voltage, phases, and power factor. Add expected load growth and a safety margin. Then screen sizes by resistance and normal ampacity.The electrical check forms only the first step. Final choice must also cover voltage drop, losses, sag-tension, wind and ice loads, vibration, fittings, insulator loads, and legal clearances. Review the hottest weather case too. A larger conductor may not suit if its weight overloads the structure or slows installation.
Where Is a Transmission Line ACSR Conductor Used?
A transmission line ACSR conductor appears on sub-transmission and high-voltage routes where span length and strength count. Common uses include rural feeders, utility corridors, industrial ties, railway supply lines, and substation links.An ACSR conductor overhead line forms a complete system. Conductor choice affects clamps, joints, spacers, dampers, insulator strings, tower shape, and stringing tension. The conductor may meet ampacity yet fail if sag exceeds clearance.
Site conditions matter too. Wind and ice raise mechanical load. High ambient temperature and sun reduce thermal margin. Coastal or industrial zones may need extra corrosion protection and tighter maintenance.
What Should You Expect from an ACSR Conductor Manufacturer?
When checking an ACSR conductor manufacturer, request traceable aluminum and steel records, routine test data, dimension checks, resistance values, tensile results, galvanizing details, and drum length tolerances. The maker should name the production standard and note any build changes.An ACSR conductor supplier must also handle delivery needs. These include proper drum design, moisture protection, clear marks, packing lists, inspection help, and installation advice. Good support cuts damage and mix-ups after the conductor leaves the plant.
At TDDL Cable, our project support covers conductor construction, aluminum and steel choice, stranding needs, test papers, packaging, and delivery planning. The final spec should match the line electrical and mechanical conditions rather than a catalog size alone.
