Copper Ground Wire Guide: Bare Copper Ground Wire vs. Insulated Ground Wire
A copper ground wire acts as a safety conductor. It forms a reliable path for fault current. This path lets protective devices trip quickly. It also lowers shock risk on metal parts. Copper ranks high in conductivity. Only silver beats it among common metals. Copper resists corrosion well. It bends easily and makes clean connections. Its performance stays steady in magnetic fields.
Grounding conductors come in bare and insulated versions. Neither type is universally superior. The choice depends on the job. Applications may include equipment grounding, bonding, or a grounding electrode. Burial conditions and local codes also matter.
.png)
What Does a Copper Ground Wire Do in an Electrical System?
A grounding conductor carries almost no current during normal use. When a live wire touches an enclosure, the copper grounding conductor provides a low-impedance path for fault current. The route causes fuses or circuit breakers to interrupt the circuit.Ground and neutral serve different roles. A neutral conductor carries load current. A ground conductor protects only during faults. The term “ground wire” can mean an equipment grounding conductor, a bonding jumper, or a grounding electrode conductor. Conductor sizing must correspond to its intended function.
TDDL Cable comprehensively evaluates materials, construction and performance. Our grounding products come in solid or stranded forms. They suit fixed runs, flexible links, and large grids.
Bare Copper Ground Wire vs. Insulated Ground Wire: What Is the Difference?

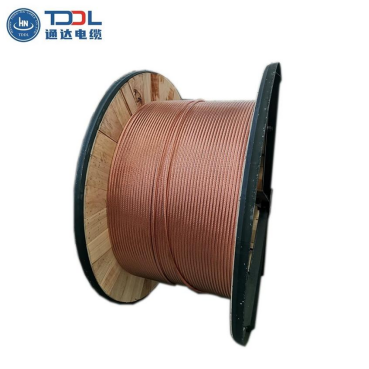

A bare copper ground wire has no outer jacket. Its copper surface stays exposed. Solid versions work for simple straight runs. Stranded versions bend more easily around turns and across wide grids. Common uses include ground rods, buried meshes, substations, lightning protection, and structural bonds where bare-conductor installation is permitted by local codes.An insulated ground wire features an insulating layer made of PVC, XLPE or polyethylene. This layer enables color-coding and protects copper against moisture and mechanical wear. Green or green-and-yellow jackets are standard for protective grounding, though local codes shall take precedence.
Insulation does not increase electrical conductivity for the same copper size. Its value lies in protection and identification. Bare wire has a smaller overall diameter and reveals damage immediately. Insulated wire often fits better inside raceways or panels. Check related building wire options when the grounding conductor runs inside a building.
.png)
Why Is Ground Wire Bare in Many Grounding Systems?
Many people ask why ground wire is bare when most conductors have insulation. A grounding wire bonds to earth and equipment. It does not carry load current. In permitted applications, insulation adds cost and bulk without improving the ground path.Bare wire offers clear benefits. It makes terminations simple. Surface damage is immediately visible. It also contacts soil directly in grounding grids. Copper bends without cracking. It resists corrosion in many outdoor settings.
Bare wire is not right for every location. It may need guards where impact is possible. Harsh soil or contact with other metals can accelerate corrosion. Insulation can separate the copper, yet damaged insulation may trap moisture. The full route and connections require careful review.
How Should Bare Copper Wire for Grounding Be Selected?
Do not select bare copper wire for grounding by diameter alone. First define the conductor’s purpose. Equipment grounding conductors, bonding conductors, and grounding electrode conductors follow different sizing rules.Calculate expected fault current and clearing time. Higher fault-energy levels require a larger copper cross-section. IEC methods allow an adiabatic check where applicable. North American codes give separate tables for each type of conductor. Always use the edition adopted in your area.
Next, choose solid or stranded construction. Solid copper maintains its form on straight runs. Stranded copper flexes better on long or complex paths. Terminals and clamps must match the chosen size and strand class.
Finally, check temperature, burial depth, soil chemistry, and metal compatibility. Copper size cannot be swapped for another metal by diameter alone. See TDDL Cable’s bare conductor range for matching options.
How Do You Choose Copper Wire for a Grounding Rod?
A copper wire for a grounding rod links the electrode to the rest of the system. It must stay continuous and secure throughout its service life. Bare copper is common because it terminates easily and works in many buried installations. Insulated copper is also acceptable when the route allows it.Size the wire to match its function and local code. Use listed connectors rated for both wire and rod. Strip insulation only where metal-to-metal contact is needed. Protect exposed sections from damage. Avoid tight bends. Keep test points accessible where required.
The electrode connection is often the weakest point. Loose clamps or contamination can increase resistance. For real-world examples, review TDDL Cable’s project cases.
FAQ
Q: Can I Use Any Copper Wire for Grounding?
A: No. The conductor must meet rules for size, fault capacity, strand type, temperature rating, and wet-location approval. Communications wire or ultra-fine flexible wire cannot substitute for approved copper grounding conductors.Q: Is a Bare Copper Wire the Ground?
A: A bare copper conductor often serves as the ground. Appearance alone does not confirm its role. It must connect to the correct terminal, stay continuous, meet size rules, and pass inspection.Q: Can Bare Copper Grounding Wire Be Buried Directly?
A: Bare copper grounding wire may be buried directly in soil where code and conditions allow. Check soil pH, moisture, salts, burial depth, and nearby metals before installation.Q: Is Stranded Copper Grounding Conductor Better Than Solid Copper?
A: Neither configuration is inherently superior. Stranded copper grounding conductor bends more easily on large or complex routes. Solid copper stays stable on straight fixed runs. Connectors must match the construction chosen.Bare and insulated copper conductors both deliver reliable earthing. Use bare copper where grids, electrodes, and bonds need direct contact and easy inspection. Use insulated copper where color coding or surface protection matters. Code sizing, compatible fittings, and site conditions determine the final selection.
