What Gauge Extension Cord for Small Appliances? AWG, Amps, Watts & Length Guide
Choosing the right extension cord for small appliances involves comparing the American Wire Gauge (AWG) of the cord, the amp rating, the watt limit, the length, the grounding, and the jacket material of the extension cord to the appliance. In general, a longer extension cord or too thin an extension cord is likely to add resistance to the current flow. This, in turn, will reduce the voltage supplied to the appliance and create heat in the extension cord.
For household devices, start with the appliance nameplate and manual. Manufacturer instructions and the finished cord's printed rating always take priority over a general chart.
.png)
What Cable Size Does an Extension Cord for Small Appliances Need?
AWG numbers run opposite to conductor thickness. 12 AWG is thicker than 14 AWG. 14 AWG is thicker than 16 AWG. Thicker conductors normally have lower resistance. They can support larger loads or longer runs when the complete assembly is properly rated.| 18 AWG | Very light duty | Lamps, clocks, and low-power electronics |
| 16 AWG | Light duty | Fans, televisions, and low-wattage appliances |
| 14 AWG | Medium duty | Vacuum cleaners, mixers, and some higher-draw appliances |
| 12 AWG | Heavy duty | High-current appliances or longer runs |
| 10 AWG | Extra heavy duty | Specialized high-load or long-distance applications |

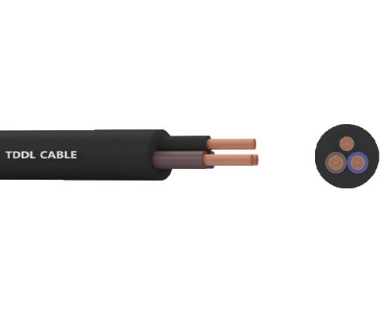

The H05VV-F flexible cable uses Class 5 flexible copper conductors with PVC insulation and a PVC sheath. It is rated 300/500V, with a stated normal operating temperature of 70°C. Its documented minimum bending radius changes with overall diameter. The values are 4D below 8 mm, 5D from 8 to 12 mm, and 6D above 12 mm. These specifications show that gauge is only one part of cable selection.
How Do Amps and Watts Set the Safe Load?
Read the appliance label for voltage, amperage, or input wattage. On a 120V supply, use these formulas.- Watts = Volts × Amps
- Amps = Watts ÷ Volts
For a multi-outlet cord, add all simultaneous loads. A 6A appliance plus a 5A appliance creates an 11A load. Extra receptacles do not add circuit capacity.
An extension cord for high-power appliances needs special caution because heaters and motors draw substantial current. Never exceed the wall circuit's rating. If the manual requires a dedicated outlet or prohibits extensions, follow it.
Heavy Duty vs Light Duty Extension Cord: What Is the Difference?
In a heavy-duty vs light-duty extension cord comparison, gauge is only one distinction. Light-duty cords commonly use 18 or 16 AWG conductors. Heavy-duty cords usually use 14, 12, or 10 AWG conductors and stronger components.Do not judge duty level by jacket thickness or color. Read the printed voltage, amps, watts, conductor count, and environmental marking. A three-prong appliance requires a grounded three-conductor cord. Never remove the grounding pin or defeat it with an adapter.
H05VV-F is designed for dry areas, light mechanical loads, and compatible household devices such as desk lamps, vacuum cleaners, and office machines. However, it is unsuitable for cooking or heating equipment, outdoor use, or demanding industrial and agricultural applications.
By comparison, our rubber insulation cables and wires can use flexible Class 5 bare or tinned copper conductors, rubber-based insulation, optional fillers, and an elastomeric outer sheath. The documented range includes 300/500V and 450/750V constructions, with fixed and flexed minimum bending radii of 4D and 6D. This does not make every rubber cable an appliance extension. It demonstrates why material, construction, voltage, and intended service must be evaluated together.
.png)
Why Are Short Extension Cords Usually Better?
Longer conductors increase resistance, voltage drop, and heat loss. A fan may slow, or a motor may struggle to start.Use the shortest cord that reaches without tension. A short extension cord generally produces less voltage drop than a long cord of the same gauge. For extra distance, follow the manufacturer's length-and-load table.
There’s no such thing as a Daisy Chain of short extension cords. Each additional extension cord adds more resistance. Each additional connection has the potential to loosen up, overheat, or fail in some other way. Use one correctly rated extension cord. Uncoil it completely before use. Keep it visible instead of hiding it under rugs, through walls, etc., in cabinets or under furniture.
Which Cord Construction Fits the Appliance Environment?
Different extension cord types serve different conditions. Indoor cords suit dry locations. Outdoor cords require protection against moisture, sunlight, abrasion, and temperature exposure.At TDDL Cable, we evaluate more than conductor size. The cable production as a controlled sequence that may include wire drawing, annealing, stranding, insulation extrusion, sheathing, identification printing, testing, packaging, and warehousing. Copper may be continuously annealed during drawing to improve flexibility and electrical performance. After insulation is applied and cooled, spark testing can help identify insulation defects such as voids or discontinuities. Surface markings then communicate properties such as rated voltage, model, specification, and length.
For users, the practical lesson is to inspect both markings and physical condition. Reject an appliance extension cord with cuts, cracks, loose contacts, exposed conductors, scorch marks, or damaged strain relief. Stop immediately if a cord becomes hot, smells burnt, buzzes, sparks, or repeatedly trips a breaker. Commercial buyers can review our broader wire and cable product range when matching conductor, insulation, sheath, voltage, flexibility, and operating conditions.
