Copper Ground Wire vs Copper Clad Steel Ground Wire: Differences, Advantages, and Applications
Choosing the right ground wire helps protect personnel, equipment and infrastructure. Both copper ground wire and copper clad steel (CCS) ground wire offer a reliable path for fault-current discharge. However, they differ in performance, installation cost and applicable scenarios.
Why use copper for grounding in modern electrical systems?
Copper remains the preferred material. It features high conductivity, excellent flexibility and stable connection performance. Copper ground wire conducts lightning surge current and fault current with low impedance. It can be easily bent around building foundations and is compatible with standard cable lugs and exothermic welding. It delivers stable conductivity in dry, clean and pollution free conditions. Properly fabricated joints can maintain electrical continuity for decades. These advantages make copper ground wire widely used in buildings, substations, data centers and renewable energy facilities.
For overhead transmission lines, the grounding system functions as an integrated network composed of phase conductors, shield wires, transmission towers, foundations and grounding electrodes. The overhead ground wire is installed above phase conductors. When lightning strikes it, the lightning current flows down through tower grounding conductors. The same principle also applies to buried grounding electrodes. Conductor material, routing path, bonding joints and soil contact conditions shall all be evaluated comprehensively. Copper delivers good corrosion resistance, easy formability and convenient welding performance. For copper clad steel (CCS) conductors, the steel core provides mechanical strength, while the outer copper layer undertakes current conduction.
.png)
Is copper good for grounding under harsh conditions?
Yes. Bare copper is suitable for most soil conditions, yet a comprehensive assessment must be carried out considering on-site soil chemical properties, moisture content and soil thermal resistivity. In highly humid, saline-alkaline, industrially polluted, or high-resistivity soils such as rock and dry sand, tinned-copper conductors may be selected for enhanced corrosion protection. When using tinned-copper conductors, note that the tin coating may melt during exothermic welding and compromise joint quality; special welding procedures or mechanical connectors shall be adopted accordingly. When copper is connected to dissimilar metals including steel, aluminum or galvanized steel, galvanic corrosion risks must be evaluated and approved bimetallic connectors or transition joints shall be applied. Conductor cross-section shall be verified for short-circuit thermal stability as well as continuous ampacity in accordance with IEC 60364-5-54. For high-resistivity soil, auxiliary measures such as soil replacement, resistance-reducing agents or deep-well grounding can be implemented to meet the target grounding resistance requirement.How does copper clad steel ground wire differ?

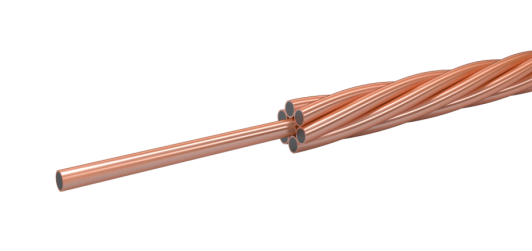

Copper-clad steel wire consists of a high-strength steel core with a copper layer metallurgically bonded to its surface. Its corrosion resistance fully depends on the integrity and thickness of the copper cladding. The steel core delivers high tensile strength together with lower raw-material costs. Unlike ordinary plated wire, this metallurgically bonded copper layer remains intact during wire-drawing, bending and field installation. Therefore, copper-clad steel ground wire can be used for long-distance pulling, driven grounding electrodes, and applications exposed to high mechanical stress.What are the advantages of copper bonded steel wire?
Its main advantages include high tensile strength. For an identical tensile-strength rating, it has lower mass per unit length than solid copper, which reduces sag for overhead spans. Compared with solid copper, its lower scrap value discourages theft and optimizes copper-material consumption. Copper-clad steel wire performs well for deep-driven grounding rods, utility-pole grounding, perimeter earthing grids, railway systems and lightning-protection systems. Such scenarios often involve tensile load and outdoor exposure. Its steel-core structure also maintains physical shape when buried in rocky soil.
Copper vs. copper-clad steel grounding wire: which performs better?
Neither wins in every case. Solid copper usually gives the lowest resistance per area and the easiest code acceptance. Copper-clad steel often wins on strength, long runs, and total value. Review these factors before picking a grounding conductor:| Factor | Copper ground wire | Copper clad steel ground wire |
| Conductivity | Stranded copper conductors feature higher conductivity than copper-clad steel strands, with conductivity ranging from 96 %IACS to 100 %IACS depending on tensile-strength grades. | It delivers lower conductivity compared with stranded copper conductors; typical grades are 30 %IACS and 40 %IACS. |
| Mechanical Strength | Hard-drawn, medium-hard and annealed copper wire | It is available in DSA, HS and EHS strength grades. |
| Corrosion | Excellent in compatible soils | Copper shell protects steel core |
| Theft exposure | Higher resale value | Lower resale appeal |
Where are copper clad steel grounding applications most practical?
Copper-clad steel grounding conductors are ideally suited for telecommunication towers, wind & solar power plants, distribution lines, rail transit systems, perimeter fencing and foundation-integrated grounding electrodes. Within these systems, long-distance routes and cyclic mechanical loads make high-strength copper-clad steel easier to install compared with soft-annealed copper. At TD Cable, we customize copper-clad-steel solutions by matching copper-layer thickness, core diameter, stranding configuration, fault-current withstand capacity and local applicable standards.
How should grounding conductor material selection be made?
Start your selection by defining the required fault‑current withstand duration and target grounding‑resistance value. Next evaluate soil resistivity, corrosion risk, burial depth, mechanical loading, connector compatibility and maintenance‑access conditions. Verify ampacity and minimum conductor cross‑sections per applicable IEC, UL, NEC or local utility specifications. For mixed‑metal connection systems, use certified bimetallic connectors to mitigate contact‑corrosion risks. Design routing paths with gradual bends and shield conductors against damage from sharp rocks. Apply proper torque values for cable lugs and record torque‑measurement data before backfilling excavation trenches. Total‑cost assessment shall take connectors, trenching works, electrode‑driving labor, field testing and later maintenance into consideration..png)
What installation practices improve ground wire reliability?
Proper installation is critical regardless of conductor material. Keep grounding routing as short and direct as practical. Adopt gentle bends rather than sharp angular turns. Avoid concealed splice joints. For buried grounding systems, maintain the designed burial depth and isolate conductors from debris, sharp stones and incompatible dissimilar metals. Inspect copper surfaces or protective jackets for mechanical damage before backfilling trenches. Inspect every clamp and compression joint, and take photos for all critical bonding connections. Upon completion, test the whole grounding system with a calibrated earth‑resistance tester and archive test records for future maintenance. For locations prone to lightning strikes, wide low‑inductance conductive paths combined with multiple bonding points help control touch‑voltage hazards. Carry out periodic inspections for loose fittings, corrosion at metal transition joints, and changes in soil or drainage conditions that may increase grounding resistance. These measures help safeguard your investment for both copper and copper‑clad‑steel grounding‑wire systems.How do project conditions influence the final specification?
Residential power supply systems, data centers and utility substations impose different performance requirements on grounding conductors. Systems with sensitive electronic equipment may require an equipotential mesh and strict electromagnetic‑noise suppression. Remote solar‑power sites prioritize long‑term anti‑theft performance and convenient electrode‑driving installation. Structures exposed to high wind generate cyclic mechanical loads, while railway traction systems bring risks of stray currents. Coastal locations require dedicated corrosion assessment. Hence, grounding design shall treat conductor cross‑section, copper‑cladding thickness ratio, electrode geometry, connectors and inspection points as one integrated system. Our engineering team can review project drawings, soil‑condition data, fault‑level parameters and local specifications prior to production. This ensures the selected grounding conductor can be installed and field‑verified conveniently.
FAQ
Q: Is copper wire for grounding better than copper clad steel wire?
A: Copper grounding wire normally delivers optimum conductivity and simpler termination. Copper-clad steel performs better where high tensile strength, long-distance pulling and anti-theft properties are major concerns.Q: Why use copper for grounding instead of aluminum?
A: Copper features higher conductivity, more stable joints and better performance under most burial conditions. Aluminum can only be used with certified connectors under strict corrosion-mitigation measures.Q: What are common copper clad steel grounding applications?
