N2XY vs NYY vs NA2XY: How to Choose the Right Low Voltage Cable for Industrial Projects
N2XY vs NYY vs NA2XY: Key Differences in Low Voltage Cable Types
Composition and Material Characteristics
.png)
The three core types of low-voltage cables (N2XY, NYY, NA2XY) are distinguished primarily by conductor material and insulation material.
N2XY adopts copper conductors and XLPE insulation. Copper features excellent electrical conductivity, while XLPE delivers outstanding thermal resistance. This cable is suitable for heavy-duty industrial circuits requiring high current capacity and mechanical rigidity, and can be laid on cable trays, inside conduits or along walls; underground installation requires additional mechanical protection.
NYY is a widely used low-voltage cable with PVC insulation and matching PVC outer sheath. It offers low material cost and excellent flexibility for fixed building wiring and duct burial. It can be laid on trays, conduits or wall surfaces, with supplementary mechanical protection required for underground industrial laying.

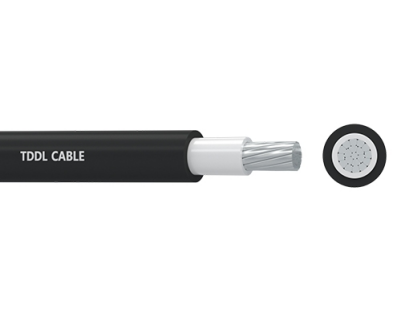

NA2XY utilizes aluminum conductors with XLPE insulation, balancing reliable performance and lightweight structure. Aluminum greatly reduces cable weight, making it ideal for large infrastructure projects with transport and cost control demands. Its laying modes are consistent with N2XY, and underground installation requires extra mechanical shielding.
Electrical and Thermal Performance Comparison
The electrical traits of these low-voltage cables change with the conductor material. Copper-based N2XY carries more current than aluminum-based NA2XY because copper has lower resistance. Yet both N2XY and NA2XY use XLPE insulation. This lets them run at higher temperatures than the PVC insulation in NYY cables.Voltage drop performance differs significantly under operating load. Copper conductors suppress voltage drop over long cable runs, while aluminum counterparts need larger cross-sections to achieve equivalent performance.In industrial sites that need steady high loads, designers shall select a matched conductor cross-section according to the load characteristic curve to optimize power transmission efficiency.
Mechanical Strength and Environmental Resistance
On the mechanical side, N2XY gives solid strength for underground or outdoor spots where outside forces may act. Its XLPE insulation holds shape under heat and keeps good insulation even when stressed.NYY provides moderate moisture resistance yet poor UV ageing resistance, so it is only applicable for indoor or conduit-buried environments instead of direct sunlight exposure.
NA2XY combines lightweight construction with moderate mechanical performance, suitable for laying environments with low tensile force and vibration.
How to Select the Right Low Voltage Cable for Industrial Applications
Evaluating Electrical Load Requirements
The selection of low-voltage cables shall start with full assessment of electrical load parameters, including rated current, system voltage and total power consumption of connected electrical equipment. Continuous loads generate higher conductor operating temperatures. When powering motors or heavy machines, motor starting surge currents are far higher than normal operating current So you may need a larger size to avoid overheating at peak times.Considering Installation Conditions and Environment
Installation conditions shape cable choice. Think about temperature swings, humidity, chemical risks, and how the cable will be placed—buried, in ducts, or hung up. These factors decide the best insulation. For high-temperature environments or applications demanding high dielectric strength, XLPE-insulated cables (N2XY, NA2) outperform PVC-insulated NYY.PVC-sheathed NYY still works well where heat stays moderate, but extra flexibility helps during installation around tight spots.
Balancing Cost Efficiency with Long-Term Reliability
Cost and performance must balance when planning industrial cable networks. Copper-based N2XY costs more at first. But it cuts resistive losses over time thanks to better conductivity. This improves long-term efficiency. Aluminum-based NA2XY cuts high costs on large jobs without big drops in safety or reliability.Full life-cycle cost shall include raw material expense, terminal installation labor (aluminum requires special fitting connectors) and cumulative long-term power loss.
.png)
When Should You Choose N2XY Cable Over Other Low Voltage Power Cables?
Situations Requiring High Current Capacity and Durability
N2XY works best where circuits need high current and toughness in tough conditions like substations or plants. It supports steady runs even at the higher temperatures common in busy industrial areas.Advantages of Using Copper Conductors in Industrial Settings
Copper conductors give top conductivity. This cuts voltage drop along long lines. That helps keep equipment stable across large sites. Copper creates more stable terminals and cable joints than aluminum. Aluminum connections require periodic inspection caused by thermal expansion deformation.Why Might NYY Cable Be the Preferred Option for Fixed Installations?
Ideal Applications for Indoor or Underground Use
NYY cables see wide use in buildings where circuits stay fixed after installation. Examples include lighting grids or power panels. Their PVC sheath resists damp when placed in conduits or ducts below ground.Benefits of PVC Insulation in Controlled Environments
PVC material possesses flame-retardant properties and complies with fire protection standards. Its flexibility eases routing in tight spaces like shafts or ceiling voids. For projects that watch budgets and avoid extreme heat, NYY gives a practical mix of cost and function.In What Scenarios Does NA2XY Cable Offer the Best Value?
Large Infrastructure Projects Requiring Lightweight Cabling Solutions
NA2XY cables deliver outstanding performance for large-scale infrastructure projects such as solar power plants and public utility distribution networks. Such projects require extensive long-distance cable routing across broad areas. The lightweight aluminum conductors simplify transportation and field installation work, while appropriately sized cross-sections ensure sufficient ampacity is maintained.These cables transmit power for low-voltage distribution systems. Equipped with supplementary mechanical shielding, they are approved for underground burial inside industrial facilities — an ideal solution for projects featuring multi-parallel long-distance cable layouts.
