What Is THHN Wire Construction: Applications, Standards, and Buying Guide
THHN wire is a typical electrical building wire. It is used in commercial, industrial, and residential branch circuits. The letters stand for thermoplastic, heat-resistant, nylon-coated conductor. Selection rests on conductor metal, wire gauge, ampacity, installation method, and local electrical code. This guide explains the THHN wire meaning, construction, applications, specifications, and practical checks for project purchasing.
.png)
What Is THHN Wire and What Does the Marking Mean?
In the THHN wire meaning, T stands for thermoplastic insulation. HH shows a high-heat rating. N points to a nylon outer jacket. Most THHN conductors are rated for 90°C in dry locations. When the same conductor carries the THWN or THWN-2 mark, it gains approval for wet locations under the conditions stated by the applicable standard. The marking acts as a performance code, not simply a product name.THHN is installed as a single conductor inside a raceway, conduit, or other recognized wiring methods. It differs from a multi-conductor cable assembly. Each insulated conductor pulls separately. The wiring system supplies the mechanical protection. TD Cable supplies building-wire solutions. These solutions match voltage class, conductor material, insulation system, and project installation requirements.

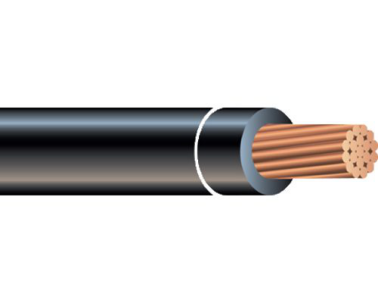

How Is THHN Wire Constructed?
Conductor metal and stranding
The conductor comes in annealed copper or aluminum. Copper gives high conductivity and compact terminations. Aluminum cuts weight and material use on larger sizes when the equipment allows it. Smaller THHN wire sizes often stay solid or compact-stranded. Larger THHN wire gauge selections use stranded constructions. This adds flexibility during pulling.PVC insulation and nylon jacket
A color-coded PVC layer supplies primary electrical insulation. A thin nylon jacket adds abrasion resistance, smoother pulling, and protection from oils and common chemicals. The jacket does not make every installation wet-rated. Check the printed marking before placing the wire in damp or underground locations.Manufacturing and quality controls
A responsible THHN wire manufacturer controls conductor resistance, insulation thickness, concentricity, spark testing, print identification, and finished-drum inspection. For project buyers, traceable markings and consistent dimensions matter. They support inspection, termination quality, and future maintenance..png)

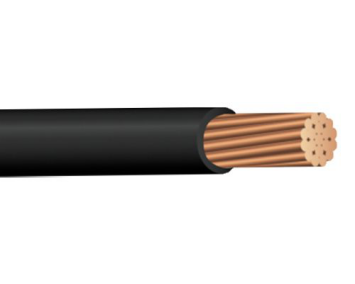

Where Are THHN Wire Applications Most Common?
THHN wire is generally used as feeder and branch wire in commercial construction projects. It also appears in factories and warehouses. It serves control panel wiring, lighting, and equipment grounding purposes. When the wiring method is installed in a tray or raceway and approved by the governing code, THHN wire can also be used in these applications. Because THHN wire is classified as building wire, it is typically protected by being installed in conduit or through an enclosure. It is not run as a free-hanging cable.The correct application depends on the environment. Dry indoor spaces form the simplest case. Areas with condensation, washdown, buried conduit, or outdoor exposure need a wet-location marking such as THWN-2. They may also need another cable type approved for that condition. Do not judge suitability from jacket color alone.
What THHN Wire Specifications Should You Check?
THHN wire size, gauge, and ampacity
THHN wire size is measured in AWG. Larger wire uses smaller AWG numbers and then kcmil numbers. A 90°C rating helps with adjustment calculations. The final allowable ampacity may still face limits from 75°C terminals or other code rules.Voltage, temperature, and location rating
Confirm the voltage rating printed on the jacket. Check the dry or wet location approval and the maximum conductor temperature. Verify sunlight resistance when the wiring method exposes the conductor to sunlight. Confirm whether the selected color follows local practice for grounded or grounding conductors.Standards and documentation
Ask for a datasheet or certificate. It should show conductor resistance, insulation type, temperature rating, voltage rating, and applicable safety or performance standards. Verify the specific edition of the standard required by the engineer, inspector, and Authority Having Jurisdiction. Requirements can vary by country and by installation method.How Should You Select a THHN Cable Supplier?
Start with the electrical schedule. List conductor metal, THHN wire gauge, quantity, color, voltage, drum length, and delivery location. Compare technical compliance rather than price alone. A dependable THHN cable supplier should offer consistent printing, packing lists, test documentation, and support for custom lengths or project labeling. At TD Cable, we can help match electrical building wire options to the requested installation conditions and delivery plan.Before release, check conduit fill, pulling tension, bend radius, termination compatibility, and available short-circuit ratings. Confirm that the selected conductor fits the lugs. When aluminum conductors are used, follow approved preparation and torque procedures. These checks prevent field substitutions that can create inspection delays.
