PE vs XLPE Insulation for Overhead Cables: Key Differences
Introduction: Differences between PE and XLPE Cable Insulation Materials for Overhead Applications
Overhead insulated cables form key parts of today's power distribution systems. They are vital in places where safety, tough weather, and limited space demand insulated conductors. Here, the insulation material greatly affects the cable's overall efficiency, safety, and durability. Yet, many buyers and designers often ignore how much these materials influence long-term results in overhead setups..png)
Two popular choices for insulation in overhead insulated cables are polyethylene (PE) and cross-linked polyethylene (XLPE). Each has unique electrical, heat-related, physical, and weather-resistant traits. These features determine their fit for various voltage ranges and outdoor conditions.
This piece aims to compare PE and XLPE for overhead use. It covers main performance traits that shape real-world operation. With this knowledge, engineers and planners can pick wisely to match technical needs and lasting aims.
Overview of Two Common Insulating Materials for Overhead Cables
Polyethylene (PE) is a flexible plastic often used in low-voltage cable insulation. It comes in types like low-density (LDPE) and high-density polyethylene (HDPE). PE stands out for its strong electrical insulation, minimal energy loss, and great protection against water. Plus, it is affordable and simple to shape during production.Cross-linked polyethylene (XLPE) starts as PE but becomes a hardened material through a linking process. This step changes PE's structure into a web-like form. As a result, it gains better heat tolerance and stronger defense against electrical treeing and partial discharge.

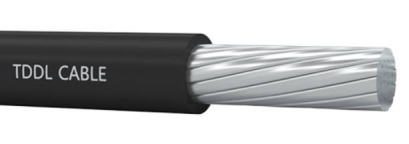

3.1 Single-core overhead insulated cable ÿCommon insulation materials: black weather-resistant PVC, PE and XLPE.
Both materials work well in overhead insulated cable systems. However, their traits suit them better for certain uses and voltage levels.
Analysis of Core Performance Differences Impacting Overhead Use
Key factors for insulation in overhead setups include steady electrical performance under voltage pressure, heat handling in changing weather, physical toughness against outdoor forces, defense against UV light and water, and aging over time.Overhead insulated cables are mainly suitable for overhead power distribution lines of 46kV and below.
To choose the best insulation, one must grasp how each material fares in these areas. This fits specific project demands.
Electrical Performance Comparison: Voltage Withstand and Treeing Resistance in Overhead Fields
When it comes to electrical traits, PE has low energy loss. Thus, it serves as an effective insulator for low-voltage uses. There, cutting down on power waste matters most. But it handles partial discharges and electrical treeing less well. Treeing is a breakdown where tiny gaps expand under strong electric fields. It can cause failures.XLPE does much better than PE in medium-voltage outdoor settings. Its strong resistance to electrical treeing and partial discharge shines here. For this reason, XLPE is the top pick for cables rated from 10 kV to 35 kV.

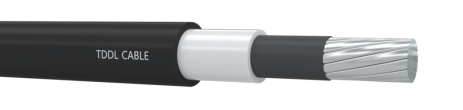

For example: rated cable 10kV aluminum core light cross-linked polyethylene insulated overhead cable, Single core, nominal cross section is 95mm2
Thermal Performance and Temperature Rating: Key to Current Capacity and Hot-Climate Reliability
Heat stability directly affects a cable's ampacity. That is the top current it can handle without going over safe heat limits. PE-insulated cables usually run steadily at 70°C to 80°C. On the other hand, XLPE-insulated ones manage 90°C nonstop. They even take short bursts of higher heat during faults.This wider heat range gives XLPE-insulated overhead cables better current capacity. It also boosts their dependability in warm surroundings or with varying loads.
XLPE insulation must be qualified for thermal extension before circulation.
Mechanical and Installation Characteristics: Withstanding Wind, Ice, and External Damage
Overhead setups put cables under pulling forces from distances between poles, wind shakes, ice weight, and hits from outside objects. PE offers solid scratch resistance and enough bendiness for easy setup. Yet, its physical strength over long stress periods can fall short.XLPE shows stronger pulling power and hit resistance. This comes from its linked molecular build. So, it fits better for long-distance overhead lines. There, keeping physical shape under weather loads is essential.
This product has the characteristics of weather resistance, wear resistance, high mechanical strength
These qualities also aid installation. XLPE-insulated wires hold their shape well during pulling tight and ending processes.
Environmental and Aging Resistance: UV, Moisture, and Pollution Effects on Long-Term Overhead Life
Long exposure to sun (UV), water entry, air dirt, and heat shifts can cause early wear in insulation. Both PE and XLPE need UV protectors like additives or carbon black for outdoor use.Still, XLPE has a clear edge in fighting water treeing. That is wear started by water that spreads via tiny paths in the insulation under voltage. Hence, XLPE works well in damp or wet areas.
Aluminum alloy monofilaments need to be aged, and XLPE insulation must be qualified for thermal extension before circulation.
With proper mixes and safeguards, both can last over 30 years in service.
Mainly used in urban streets and green areas, overhead lines near buildings, and for power supply safety and operation management.
Fire Performance and Safety Considerations for Overhead Installations
Basic PE and XLPE do not stop flames on their own. So, they need added flame blockers or non-halogen mixes for fire-risk spots. These include areas near buildings or woods. In cities or crowded places with strict fire rules, low smoke zero halogen (LSZH) types may be required. They cut down harmful smoke in fires.Choosing fire-safe insulation matters a lot. It is key when overhead insulated cables run close to burnable buildings or plant paths prone to bushfires.
Typical Application Scenarios for Overhead Insulated Cables
For low-voltage jobs (1 kV and below), especially in country or edge-city spots with tight budgets, PE-insulated overhead cables offer a budget-friendly option. They provide enough performance.It is suitable for overhead power lines of 1kV and below
Their low energy loss also suits them where saving power trumps long life or tough weather handling.
In contrast, XLPE suits medium-voltage uses from 10 kV to 35 kV. These cover city power lines, factory networks, and transfer routes. There, steady work under heat or weather strain is crucial.

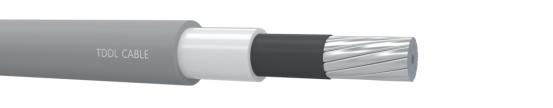

10kV Overhead Insulated Cable — GB/T 14049-2008
In hot areas or storm-prone zones, where cables face heat and physical strain, XLPE's toughness pays off. It cuts upkeep and stretches service time, offsetting the higher starting price.

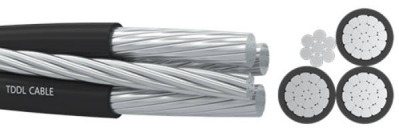

.png)
Conclusion: What Impacts Overhead Performance Most—and How to Choose
No single insulation beats the other in every case. Both PE and XLPE from TDDL cable bring advantages for particular situations. The biggest factors shaping overhead insulated cable performance are:- Operating temperature range and ampacity
- Voltage classification (low vs. medium voltage)
- Environmental exposures such as UV radiation, moisture levels, pollution
- Required service life and maintenance considerations
In the end, choices should weigh full life costs. This includes expected reliability, rule following (e.g., GB/T 14049), upkeep needs, and safety for the setup area.
FAQ
Q: What is the main difference between PE and XLPE insulation in overhead insulated cables?
A: PE is a flexible plastic with strong electrical traits and low price. It fits low-voltage uses. XLPE is a hardened linked form of PE. It offers better heat tolerance, physical power, and treeing defense. This makes it great for medium-voltage overhead insulated cables.Q: Why is XLPE preferred over PE for medium-voltage overhead insulated cables?
A: XLPE handles higher steady heat (90°C versus 70-80°C for PE). It resists electrical treeing and water treeing better. Plus, it has more physical lasting power. These ensure greater trust and current capacity in hard overhead insulated cable setups up to 35 kV.Q: Can PE-insulated overhead cables be used in harsh environmental conditions?
A: PE does well in calm weather. It resists UV and water if stabilized right. But for hot, wet, or dirty spots, XLPE is better. Its stronger aging defense and longer life suit overhead insulated cable systems there.SEO information setting:
